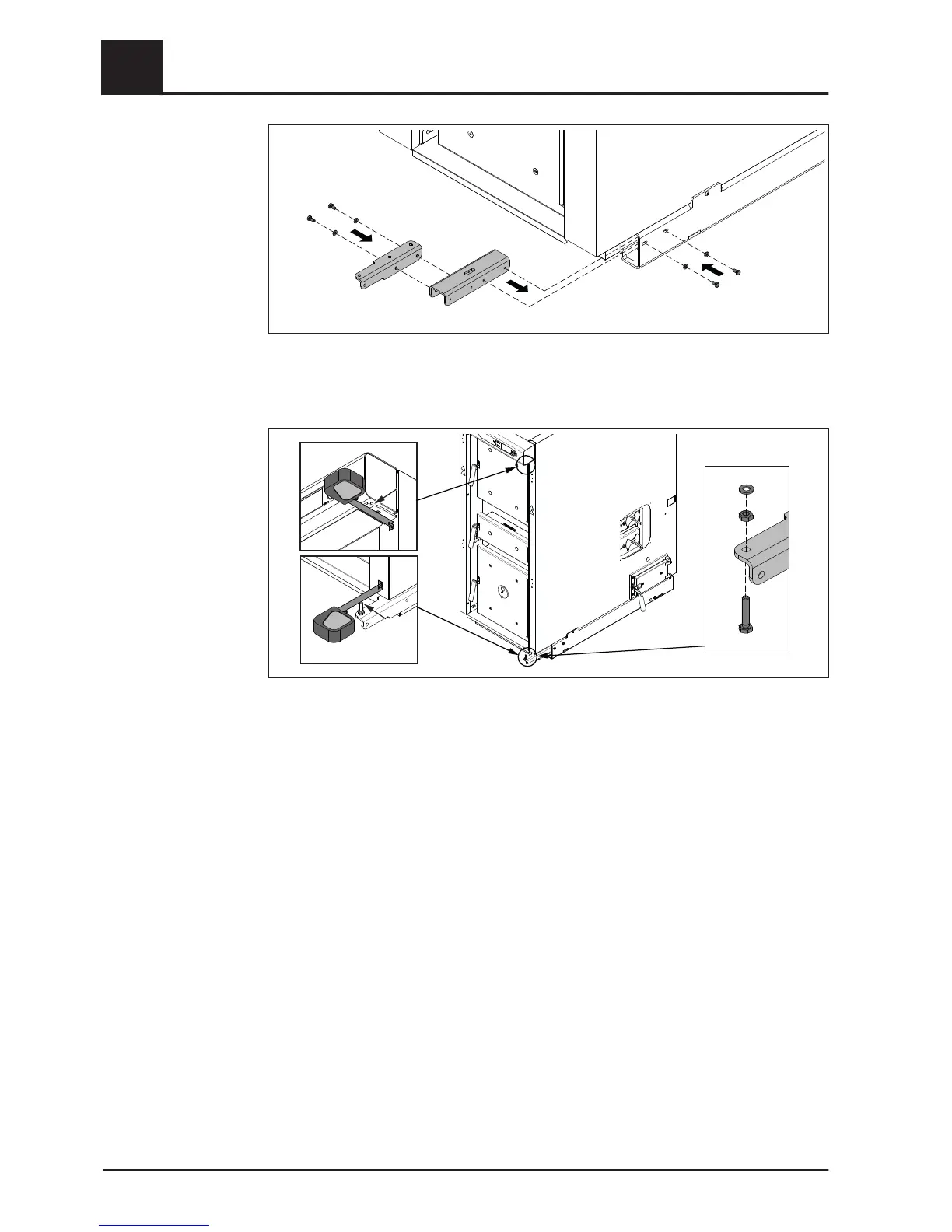

❒ Mount the lower door bracket with two hexagonal screws M6 x 12 on the U-profile
❒ Insert the door bracket with the U-profile and lightly tighten the two hexagonal
screws M6 x 12
❒ Measure the distance from the insulating side panel to the centre of the borehole
for the insulated door on the upper bracket
❒
Measure the distance from the insulating side panel to the centre of the borehole
on the lower door bracket
➥ The two distances must be equal!
➥ If necessary, correct the position of the lower door bracket
❒ Secure the two hexagonal screws of lower door bracket
❒ At the front end of the lower door bracket, insert a hexagonal screw M6 x 30 from
below, secure it with a nut and place a spacer washer on top
S3 Turbo 40/45:
4
Assembly
Installing the boiler
46 Froeling GesmbH | A-4710 Grieskirchen, Industriestraße 12 | www.froeling.at
