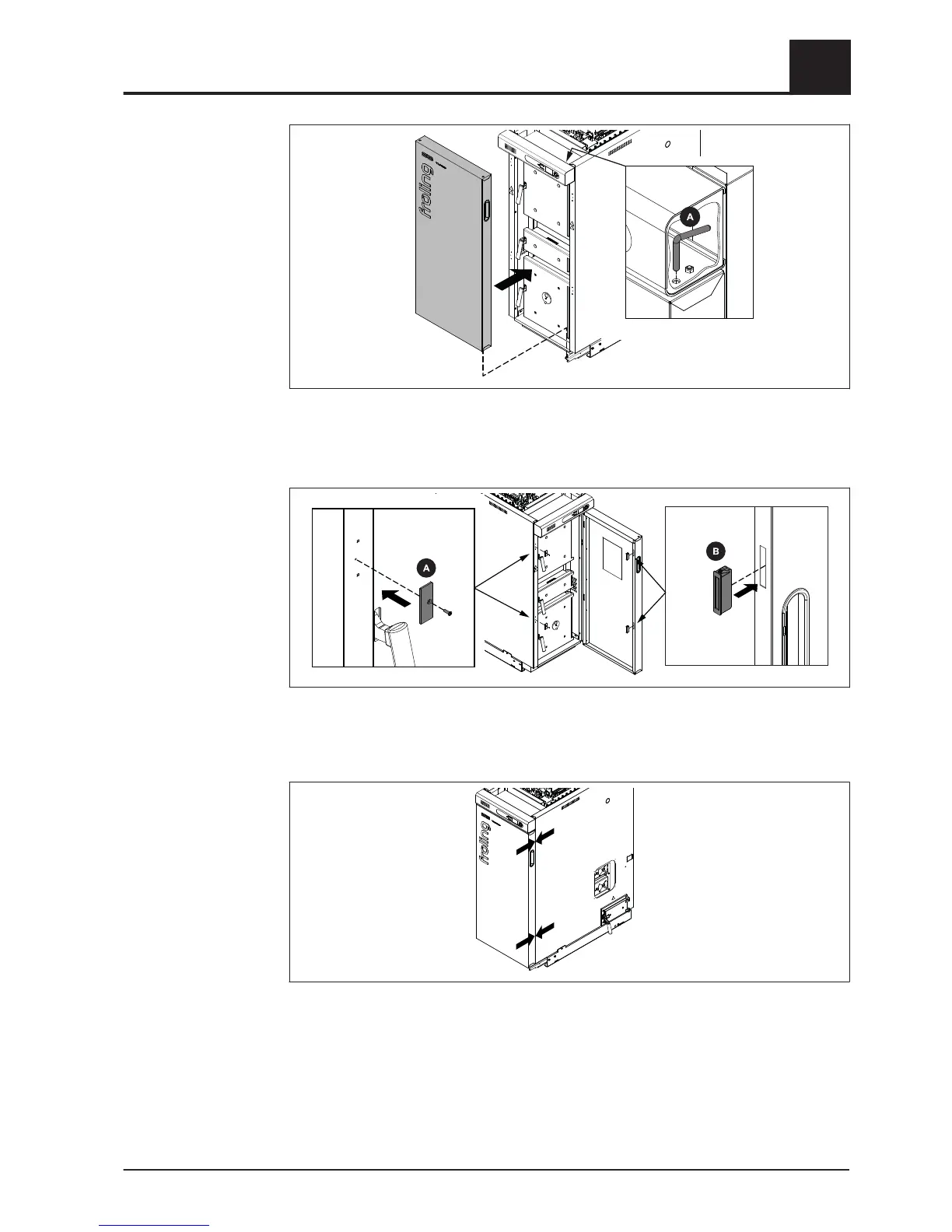

❒ Mount the insulated door onto the lower door bracket using the hexagonal screw
❒
Attach the insulated door to the upper door bracket with hinge pin (A)
➥ Insert the hinge pin through the control and the upper door bracket
❒ Position magnetic latches (B) on the inside of the insulated door at the top and
bottom
❒
Mount counter plates for the magnetic latches (A) to the left insulation side panel
❒ Check to see if the gap between the insulation side panel and the insulated door is
the same size along the entire height of the boiler
➥ If necessary, correct the position of the lower door bracket
Assembly
4
Installing the boiler
Installation Instructions S3 Turbo | M1081217_en 47
