Fronius Selectiva 4185 Service Manual

112

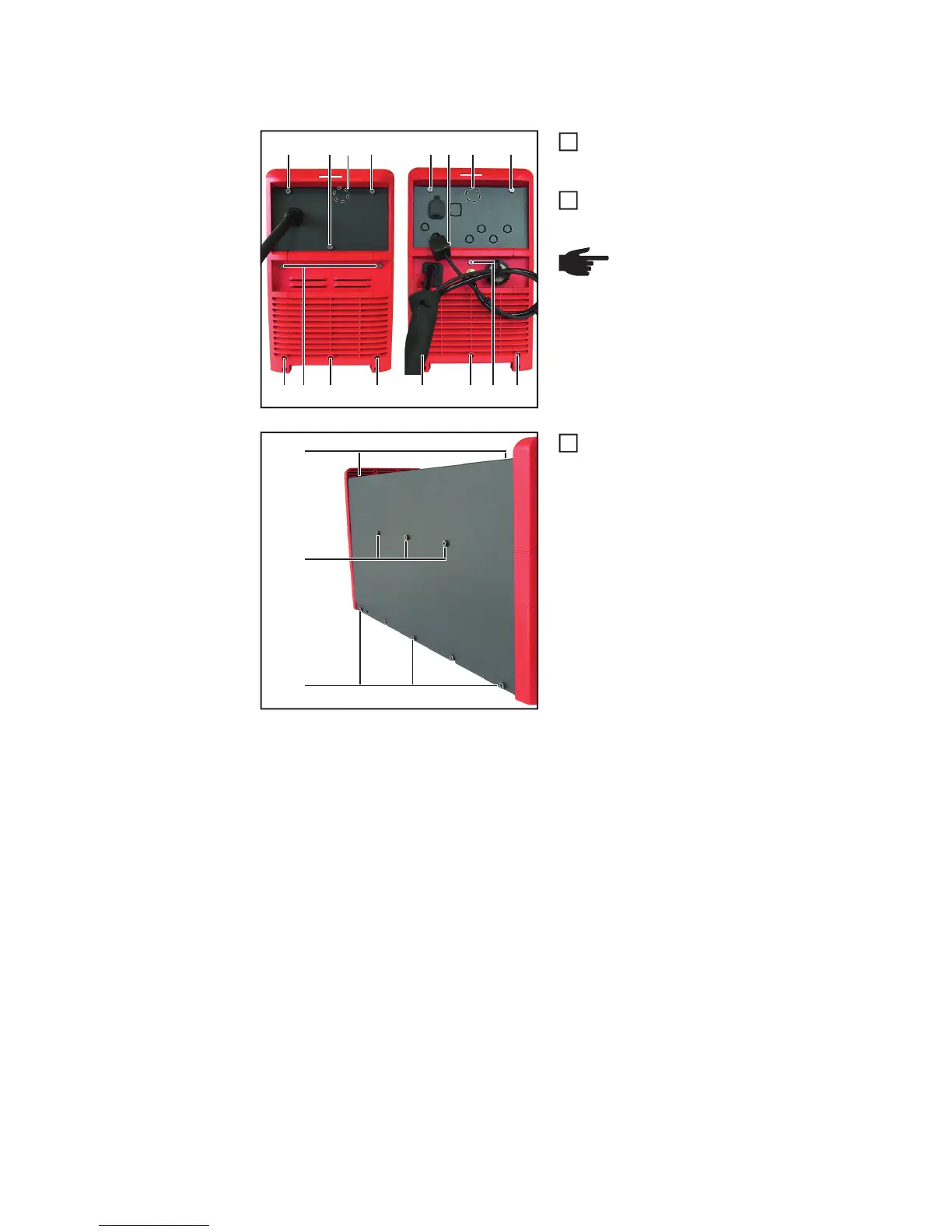

Opening the housing cover:
Undo the six 5x20 TX25 screws (1)
and detach the AC/DC connecting pla-
te
Undo the five 5x12 TX25 screws (2)
Undo the eight 5x12 TX25 screws (4)
and remove the housing lid/rear panel
(1) (1)(2) (1) (1)(1) (2) (1)
(3)(2) (3) (3) (3) (3) (2) (3)
NOTE! If the device frames are to
be removed, six additional 5x16
TX25 screws (3) must be undone
1
2
(4)
(4)
(4)
3
