Fronius Selectiva 4185 Service Manual

111
EN

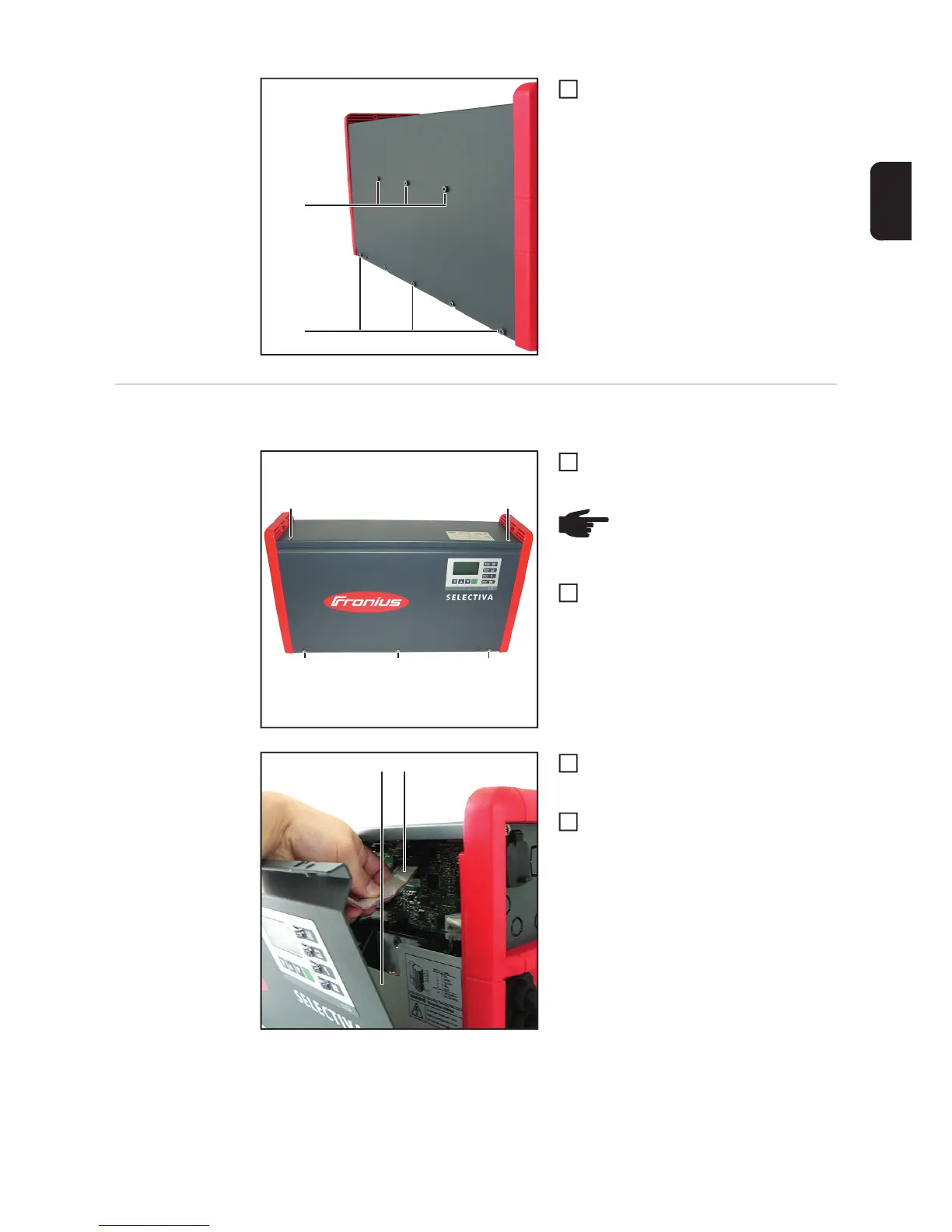

Undo the six 5x12 TX25 screws (4)
and remove the housing cover
Opening the Se-
lectiva 16 kW
Opening the front panel:
Undo the five 5x12 TX25 screws (1)
First pull the underside of the front pa-
nel forward and then detach the top
edge from the housing cover
Disconnect the ribbon cable (2) from
the P-control and remove the front pa-
nel
After removing the cable tie, take out
the insulating sheet (3) and set it to one
side
(4)
(4)
3
(1) (1)
(1) (1) (1)
NOTE! Remove the LED diffuser
strips, if present
1
2
(3) (2)
3
4
