90
Function overview
Device concept The new three-phase Selectiva battery charging systems for 24 V, 36 V, 48 V and 80 V
batteries feature a brand new charging process. The successful Active Inverter Technolo-
gy with the revolutionary Ri charging process adapts itself to the requirements of the bat-
tery and only charges the battery with the current that it actually needs.
Intended purpose The charger is only for charging batteries as described in the "Technical data" section. Any
use above and beyond this purpose is deemed improper. The manufacturer shall not be
liable for any damage resulting from such improper use. Utilisation in accordance with the
intended purpose also comprises
- following all the information in the operating instructions
- regular checking of the mains and charger leads
Warning notices
on the device

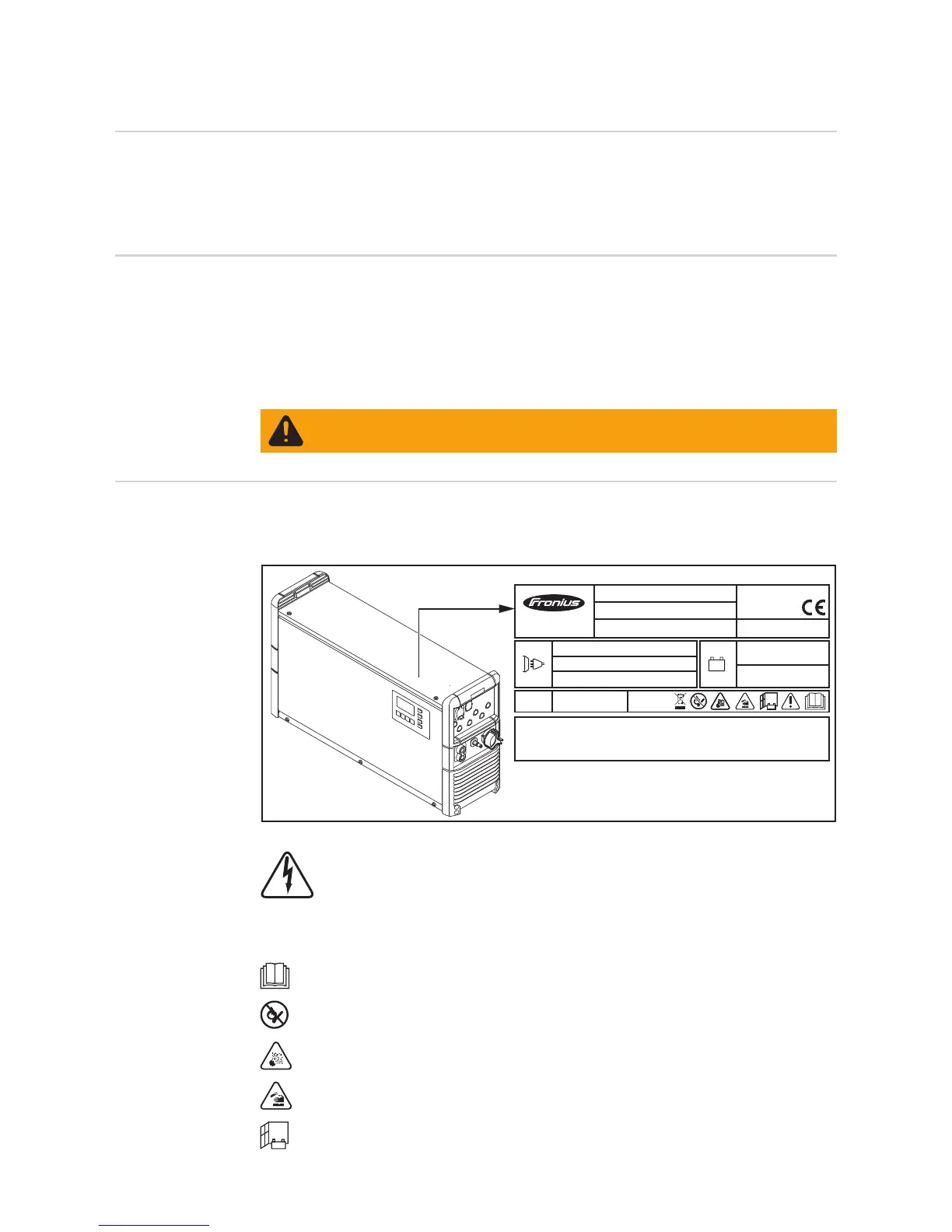

A number of safety symbols can be seen on the charger's rating plate. The safety symbols
must not be removed or painted over.
WARNING! Charging dry batteries (primary cells) and non-rechargeable batter-
ies can cause serious injury or damage, and is therefore prohibited.
An electric shock can be fatal. The housing must never be opened by anyone
other than a Fronius-trained service engineer. The device must be disconnected
from the mains before starting any work with the housing opened. A suitable
measuring instrument must be used to ensure that electrically charged compo-
nents (e.g. capacitors) are fully discharged. Ensure that the device remains dis-
connected from the mains until all work has been completed.
Do not use the functions until you have read all the operating instructions.
Possible sources of ignition, such as fire, sparks and naked lights, must be kept
away from the battery.
Risk of explosion! Oxyhydrogen is generated in the battery during charging.
Battery acid is corrosive and MUST be kept away from eyes, skin and clothes.
Ensure an adequate supply of fresh air during charging. Set up the device at
least 0.5 m (1 ft. 7.69 in.) above the floor.
IP20
24V
200A
11A
3~ NPE 400/230V 50/60Hz
6900W
www.fronius.com
Ser.No.:
Part No.:
U
DC nom.
I
DC max.
Protective class I
WARNING
Explosive gases. Prevent flames and sparks. Provide adequate ventilation during charge!
Always stop charging before you disconnect the charging cable!
I
AC max.
U
AC nom.
P
AC max.
