Fronius Selectiva 4185 Service Manual

133
EN

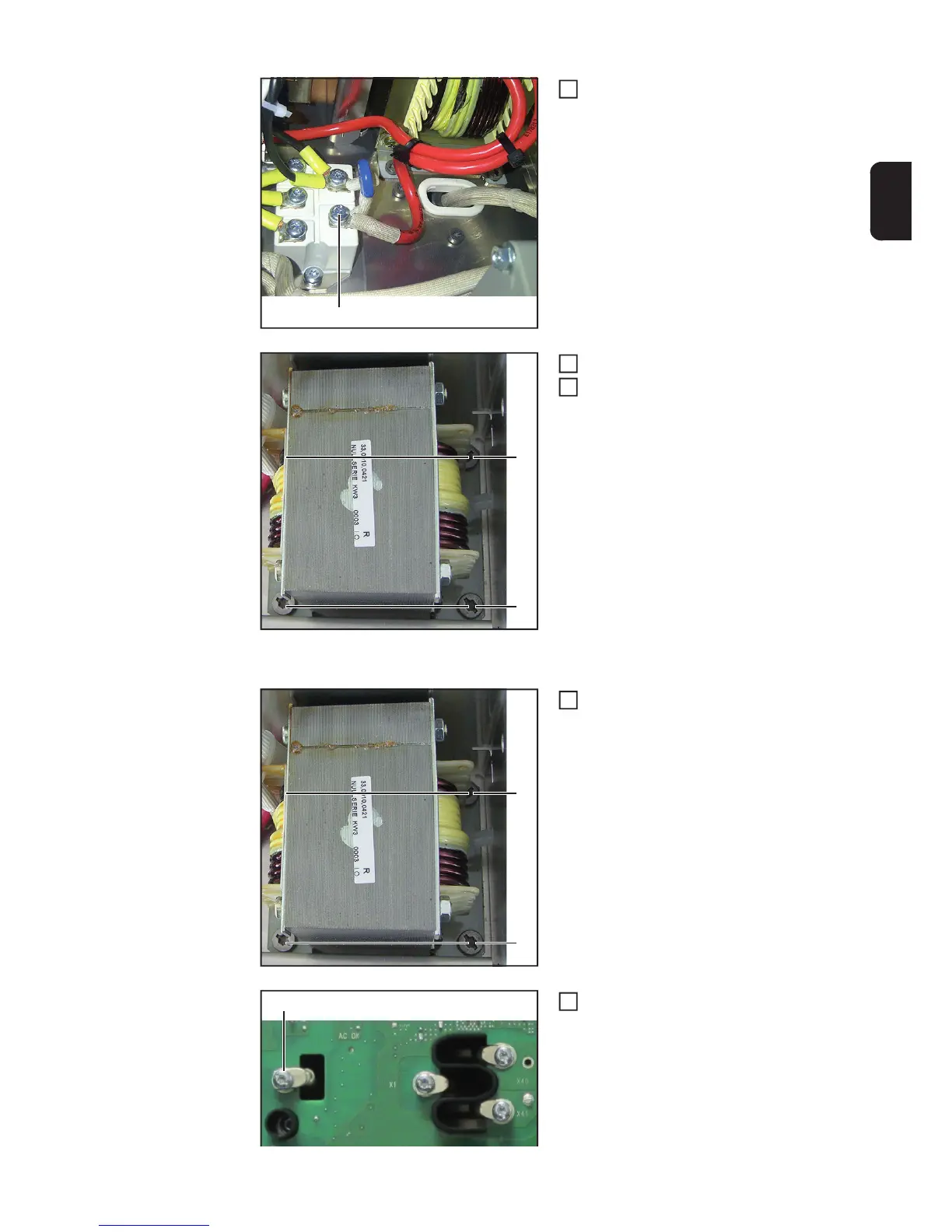

Undo the 5x10 TX25 tapping screw (2)
on the PFC inductor connection to the
primary rectifier
Undo the four 5x12 TX25 screws (3)
Remove the PFC inductor
Installing the PFC inductor:
Fit the new PFC inductor with four
5x12 TX25 screws (3)
[3 Nm]
Thread the PFC inductor connection
through the primary power module and
fit with one 5x10 TX25 tapping screw
(1)
[4.5 Nm]
(2)
3
(3)
(3)
4
5
(3)
(3)
1
(1)
2
