Fronius TransTig 4000 User Manual

41
EN
MagicWave
4000 / 5000

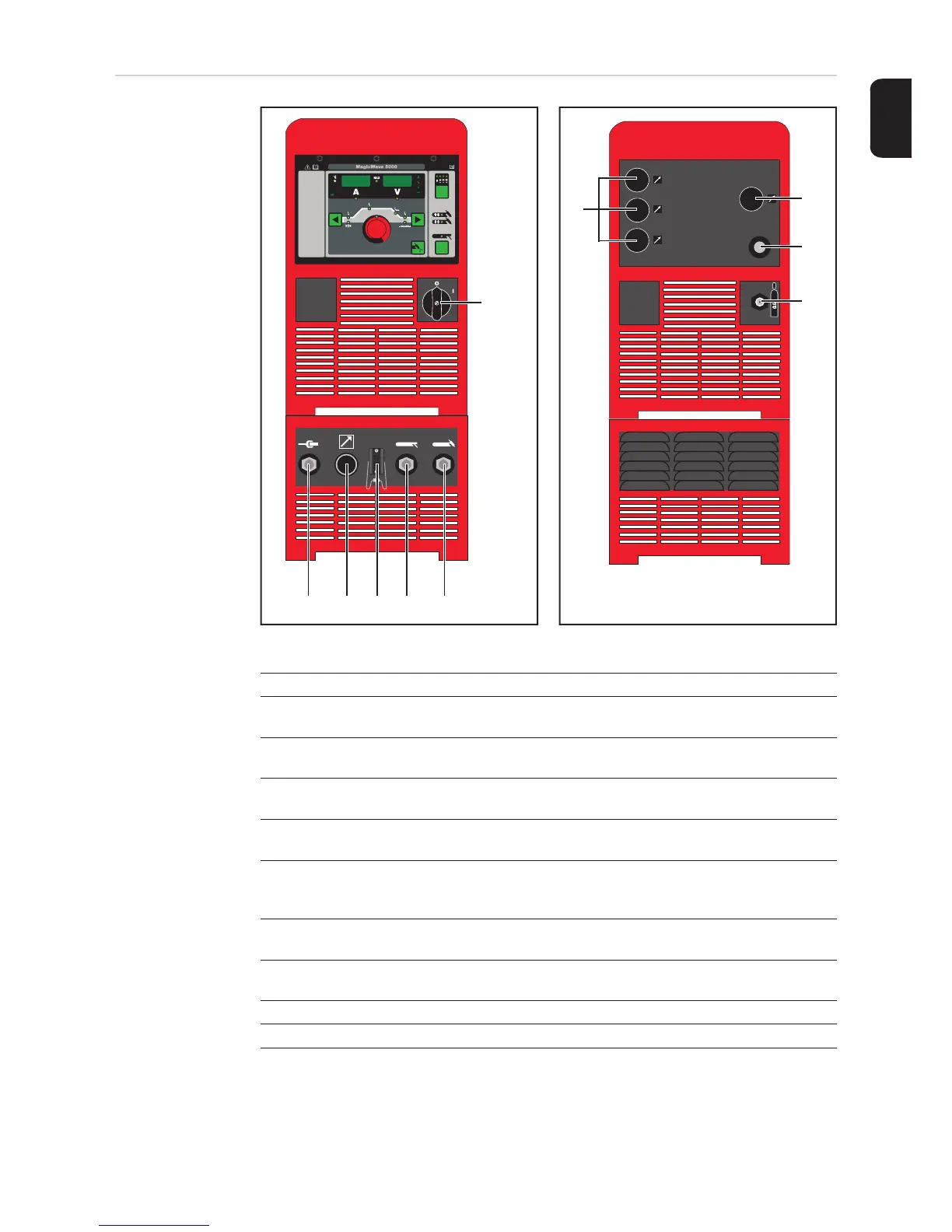

MagicWave 4000 / 5000 - front MagicWave 4000 / 5000 - rear
(6) (5) (4) (3) (2)
(1)
(7)
(7)
(8)
(9)
No. Function
(1) Mains switch
for switching the power source on and off
(2) Welding torch connection
for connecting the TIG welding torch
(3) Electrode holder connection
for connecting the electrode cable for manual metal arc welding
(4) Torch control connection
for connecting the control plug of a conventional welding torch
(5) LocalNet connection
standardised connection socket for system add-ons (e.g. remote control, JobMas-
ter TIG welding torch, etc.)
(6) Grounding (earthing) cable connection
for connecting the grounding (earthing) cable
(7) Blanking cover
reserved for LocalNet connection
(8) Mains cable with strain relief device
(9) Shielding gas connection
