Frymaster OCF30E - Drain Valve Assembly

2-7

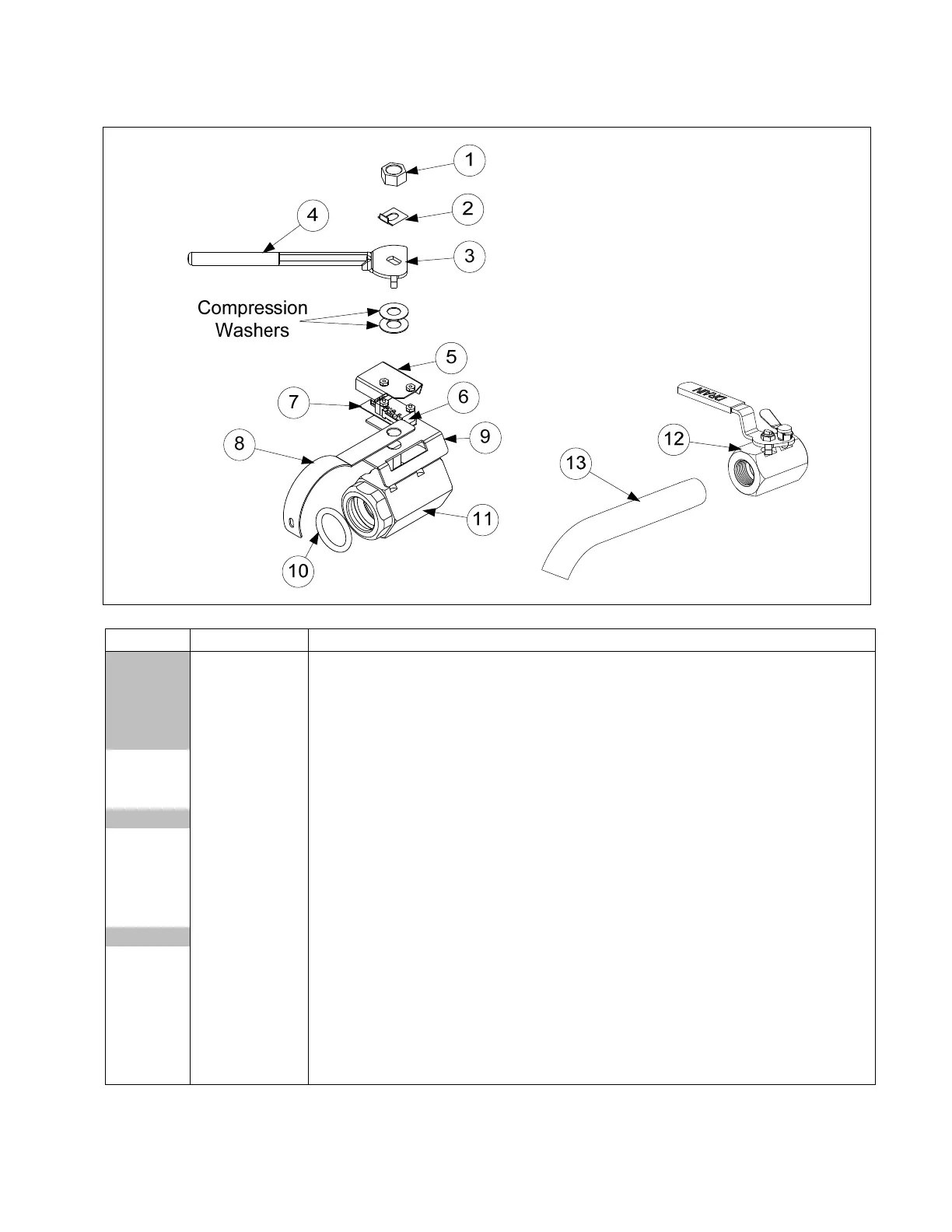

2.4.2 Drain Valve Assembly
ITEM PART # COMPONENT
108-2451 Valve, Assembly Drain FV OCF with Filter
108-2452 Valve, Assembly Drain DV OCF with Filter
108-2593 Valve, Assembly Drain FV OCF Single with Filter
108-2450 Valve, Assembly Drain DV Right OCF Single with Filter
108-2449 Valve, Assembly Drain DV Left OCF Single with Filter
1 809-0540 Nut, ½-13 2-Way Hex Lock
2 900-2936 Retainer, Nut Drain Valve
3 824-2188 Handle, Drain Valve FV, FV Single and DV Single Left with Filter
824-2189 Handle, Drain Valve DV and DV Single Right With Filter
4 816-0639 Cap, Vinyl Red
5 901-2348 Cover, Safety Switch
6 807-4936 Switch, Micro Gold Plated
7 816-0220 Insulation, RF Switch
8 200-6496 Support, Drain Tube
220-8162 Bracket, Single 1¼-inch Drain Valve (used on FV Single with Filter)
9 108-2453 Bracket Assy, Drain Switch
10 816-0135 O-Ring, Round Drain Seal
11 810-1018 Valve, 1¼-inch Drain with Filter
12 810-1569 Valve, 1¼-inch Drain Non-Filter
13 812-1226 Drain Extension 1¼-inch (use with 810-1569)
* 807-5159 Harness, Drain FV (connects from drain switch to rear of controller)
* 807-5160 Harness, Drain DV(connects from drain switch to rear of controller)
