2-30

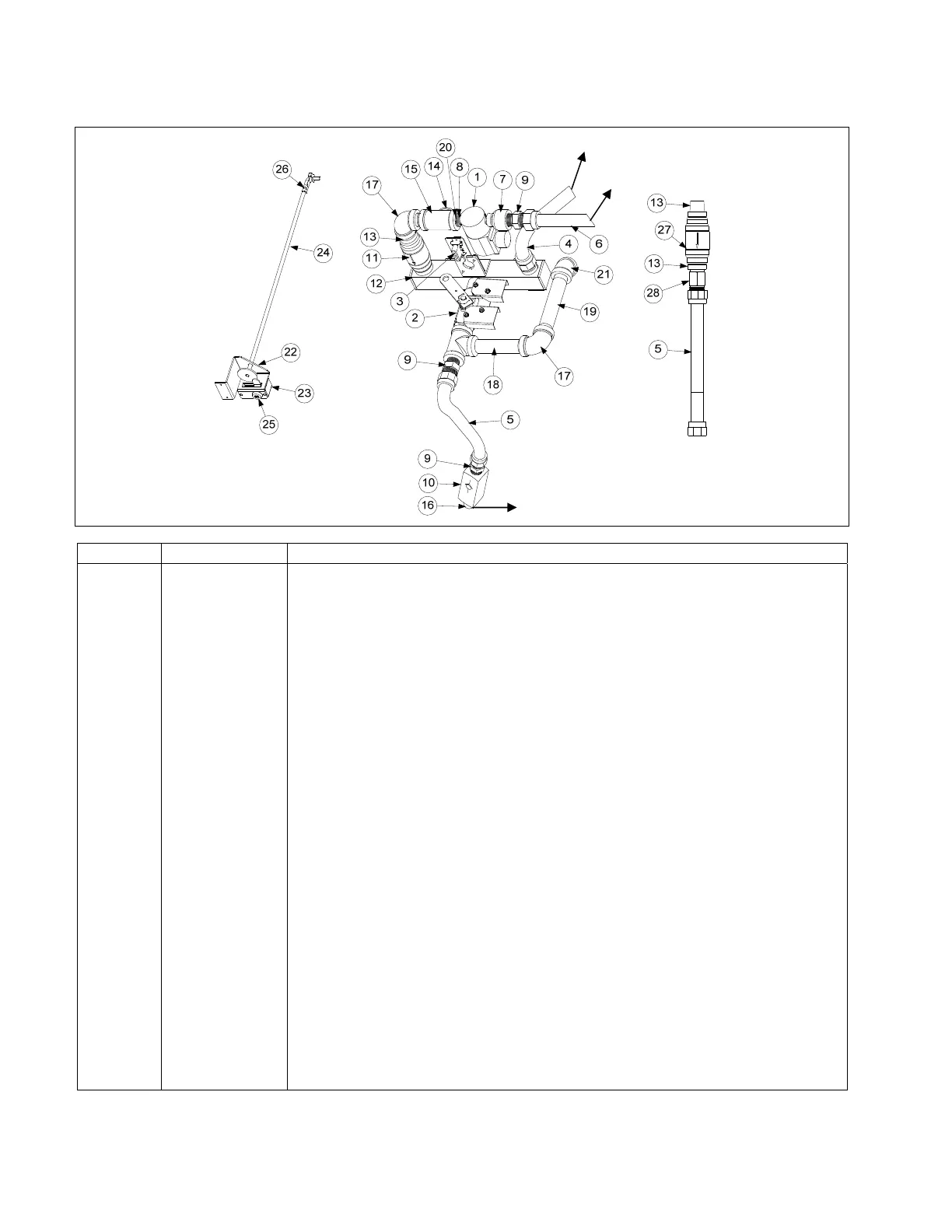

2.10.7 Bulk Oil Plumbing
ITEM PART # COMPONENT
√ 1 106-6830 Solenoid Assy
2 108-3368 Valve, Assy Waste Dispose (see next page for valve assembly)
3 807-5318 Cable, Bulk Oil Communication
4 810-1057 Flexline, ⅝” OD x 13.00”
5 810-1067 Flexline, ⅝” OD x 8.50”
6 810-1069 Flexline, ⅝” OD x 29.50” 3, 4 and 5 battery (use 810-1057 for two battery)
7 810-0555 Reduce, Bell ½” to ¼” NPT
8 813-0838 Nipple, ¼” NPT
9 810-1668 Adaptor, Male ⅝” OD x ½”
√ 10 810-3531 Valve, Check 20 PSI (Bypass)
√ 11 810-3583 Valve, Check 4 PSI (Manifold)
12 810-3596 Manifold
13 800-3738 Adapter, Check Valve
14 813-0463 Plug, Counter Sink
15 813-0003 Tee, ½” x ½” x ½”
16 813-0022 Nipple, ½” x Close NPT
17 813-0062 Elbow, ½” 90°
18 813-0093 Nipple, ½” x 4.00”
19 813-0281 Nipple, ½” x 5.00”
20 813-0304 Bushing, ½” x ¼”
21 813-0345 Elbow, ½” 45°
22 220-5656 Brace, Handle
23 220-5657 Cover, Handle
24 823-7142 Handle, Waste Pull
25 810-3587 Lock and Key, Waste Handle
26 809-0601 Clip, Clevis Left Rod End
√ 27 810-0667 Valve, Check 1 PSI (Pump Motor)
28 810-1669 Adapter, Female ⅞” OD x ½”
* Not illustrated.
√ Recommended parts.
To Oil Return Manifold
To Topoff Pump Intake Elbow
To Drain
To Next Page
