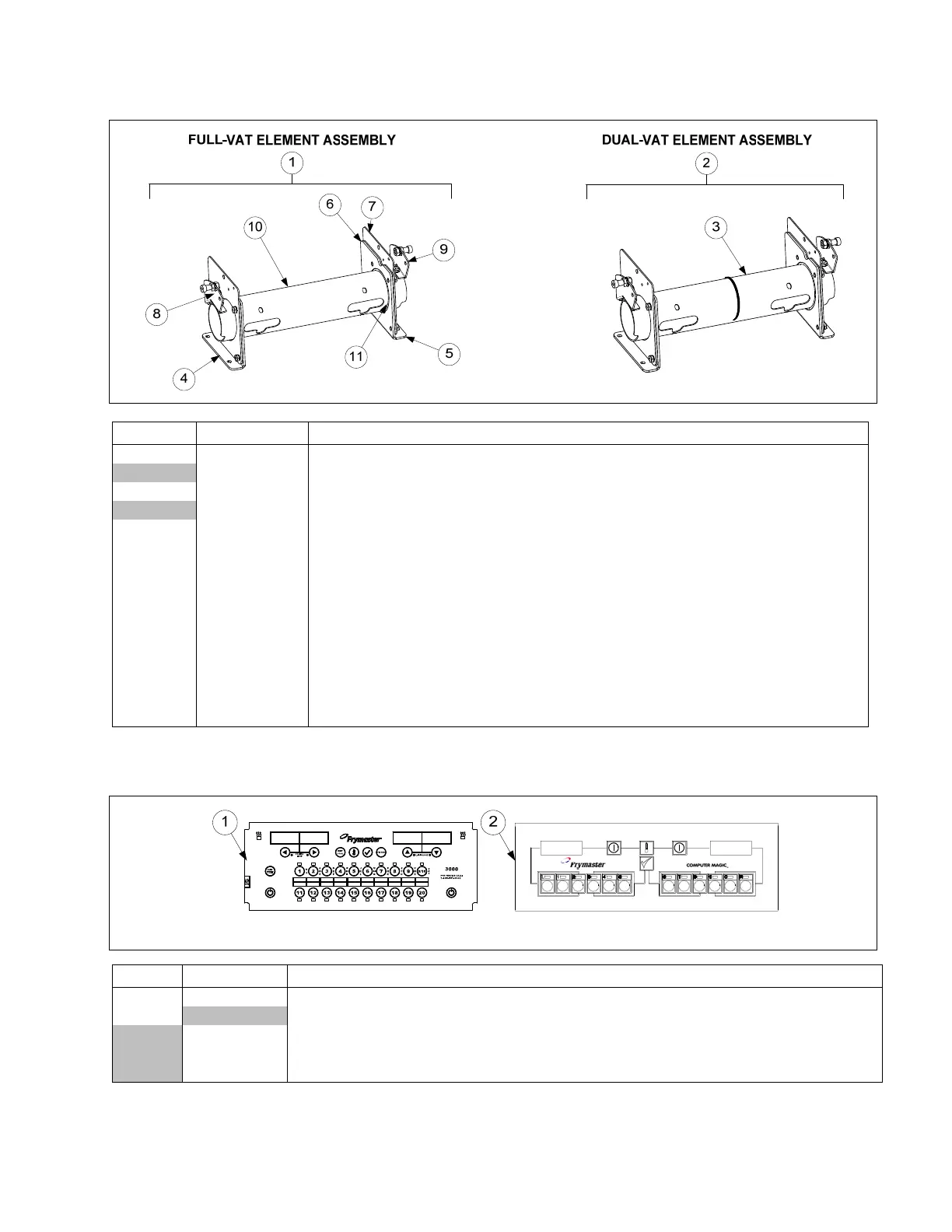

2.5.6 Element Tube Assemblies
ITEM PART # COMPONENT
1 108-0297SP Tube Assembly, Full-Vat 14kW
108-0293 Tube Assembly, Full-Vat 17
2 108-0298SP Tube Assembly Dual-Vat 14kW
108-0295 Tube Assembly Dual-Vat 17
3 810-3246 Bushing and Tube Assembly, Dual-Vat
4 108-0315 Bracket Assembly, LH Element Tube Support
5 108-0316 Bracket Assembly, RH Element Tube Support
6 220-0122 Plate, Element Tube Support Inner
7 220-0123 Plate, Element Tube Support Outer
8 106-7651 Bracket Assembly, LH Upper Spring (use 106-6569 for 17kW)
9 106-7652 Bracket Assembly, RH Upper Spring (use 106-6570 for 17kW)
10 810-2992 Tube, Full Vat Element Mounting
11 810-2993 Bushing, Tube End Teflon
* 826-2598 Kit, Tilt Switch
* 807-4742 Switch, Long Lever High Temp
* Not illustrated.
2.5.7 Controllers
ITEM PART # COMPONENT
√ 1 826-3107 Replacement 3000 Controller
√ 2 Replacement CM 3.5 Controller
826-2395 Non-CE CM3.5 (For use in US, Canada, Mexico and all other non-CE countries)
826-2332 CE CM3.5 (For use in European CE countries)
810-3141 Sound Device, Universal SMT
√ Recommended parts.
NOTE: See Page 2-20 for Interface Board to Controller Wiring Harness
