2-20

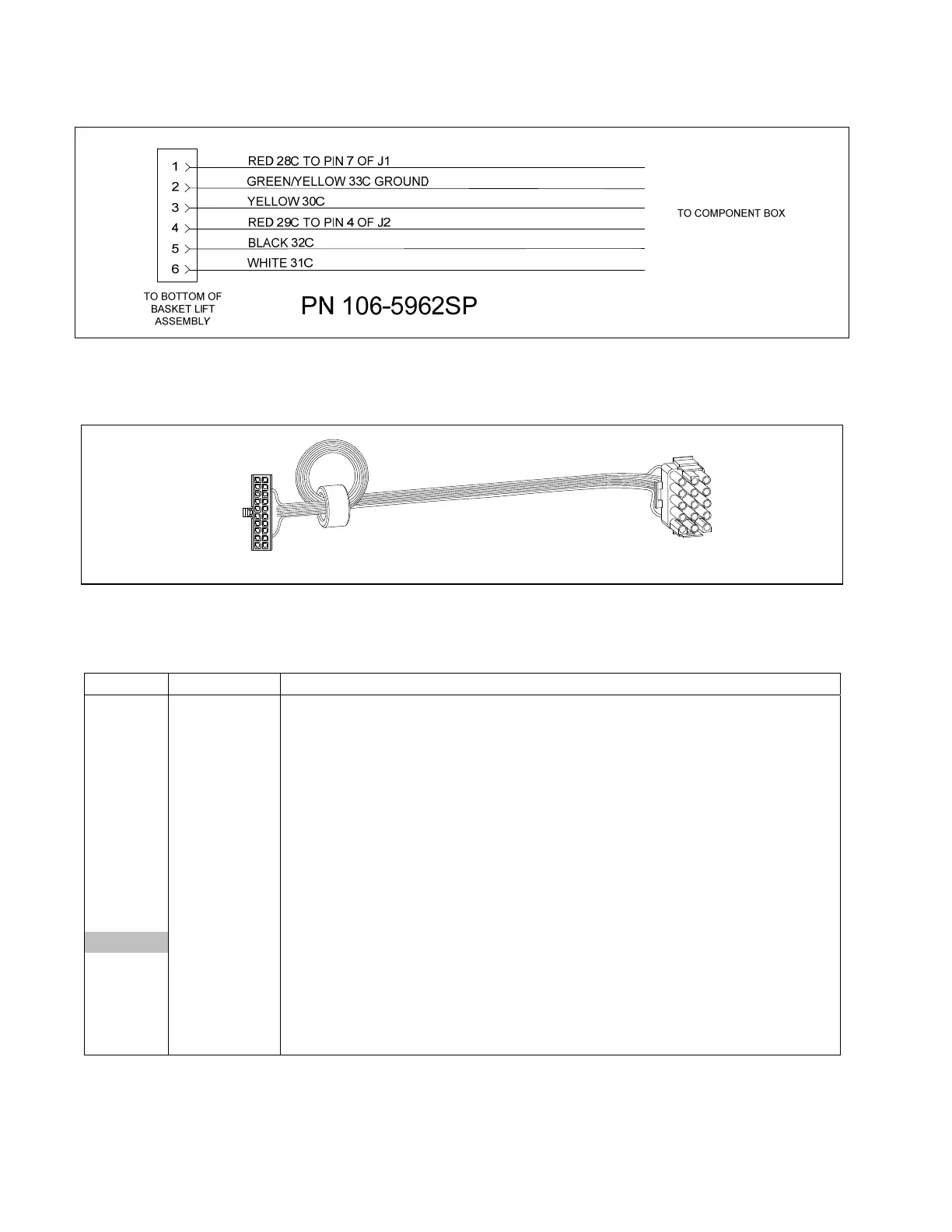

2.5.8.8 Basket Lift Harness
2.5.8.9 Interface Board to Controller Wiring Harness – 15-Pin
PN 807-4199
SMT Controller to Interface
Board Wiring Harness
2.5.8.10 3000 and ATO Wiring Harnesses
ITEM PART # COMPONENT
* 807-4546 Controller Communication (used from Controller to Controller)
* 807-4655 Harness ATO RTD Extension (used from ATO RTD to ATO Board)
* 826-2569 ATO FV/DV RTD Probe Kit
* 807-4553 Harness, ATO Power (used from Transformer to ATO Board)
* 807-5161
Harness, ATO Solenoid, Pump Relay (used from ATO Board to Top-off Pump
Relay, Solenoids, and JIB Reset Switch)
* 807-5162
Harness, ATO Solenoid, Pump Relay Secondary (used in second ATO box on
4 battery fryers from ATO Board to Top-off Pump Relay and Solenoids)
* 807-4573
Controller Locator Wire (used from Controller to Interface Board) See wiring
diagram 805-1856 on page 1-31 for locator pin positions.
* 807-4552
Communications Terminator (used on Controller pin J6 and ATO board pin
J10 to terminate network)
807-4657 Jumper (used on 4 and 5 battery ATO board plug J5 pin 7 and 8)
* 106-9256SP Long Top-off Power (used between Component Box to ATO Box)
* 807-4646
Harness, Communication Long (used from Far Right Controller to ATO
board)
√ * 807-4660PK SMT Pin Service Repair Kit
√ * 230-2345 SMT Pin Extractor
* Not illustrated.
√ Recommended parts.
See page 1-17 and 1-25 for Pin Positions.
