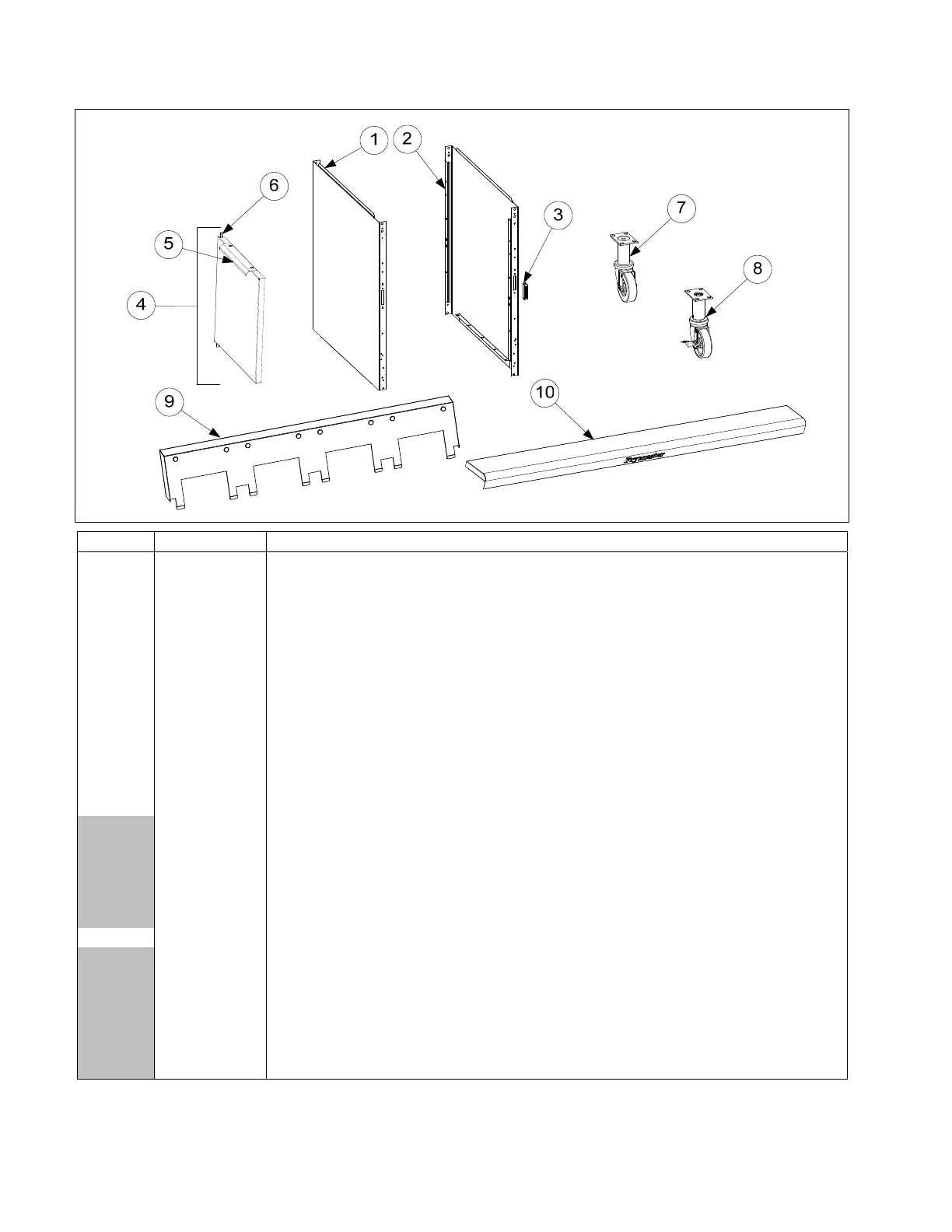

2.3 Doors, Sides, Tilt Housings, Top Caps and Casters
ITEM PART # COMPONENT
1 231-0323 Side, Standard Cabinet Left SS (use 221-0323 for Enameled Steel)
2 232-0323 Side, Standard Cabinet Right SS (use 222-0323 for Enameled Steel)
3 810-1105 Magnet, Door (vertical) (use 810-2346 for horizontal over filter pan)
4 106-4397 Door, Left or Right (Left shown – move handle to bottom for right)
5 230-4960 Handle, Door
6 106-4067 Pin Assembly, Door
* 810-0275 Spring, Door Pin
* 809-0970 Retaining Ring
* 230-7192 Hinge, Door Lower
* 210-8288 Panel, Universal Door
* 220-6097 Holder, Manual
7 810-0327 Caster adjustable 4” without Brake
8 810-0944 Caster adjustable 3” with Brake
9 823-7934 Tilt Housing Single (Housing for four station fryer shown)
823-7891 Two Station, S/S prior to 08/2012
823-8540
Two Station, S/S after 07/2012
823-7892
Three Station, S/S prior to 08/2012
823-8541
Three Station, S/S after 07/2012
823-7893
Four Station, S/S prior to 08/2012
823-8542
Four Station, S/S after 07/2012
10 108-2551 Top Cap Single prior to 07/2014
108-6169 Top Cap Single after 06/2014
106-7835 Two Station (Also requires four 809-0078 10-32 Nutserts) prior to 07/2014
108-6162
Two Station (Also requires four 809-0078 10-32 Nutserts) after 06/2014
106-5979
Three Station (Also requires six 809-0078 10-32 Nutserts) prior to 07/2014
108-6163
Three Station (Also requires six 809-0078 10-32 Nutserts) after 06/2014
106-7576
Four Station (Also requires eight 809-0078 10-32 Nutserts) prior to 07/2014
108-6164
Four Station (Also requires eight 809-0078 10-32 Nutserts) after 06/2014
* Not illustrated.
