Frymaster OCF30E - Shortening Melting Unit

2-28

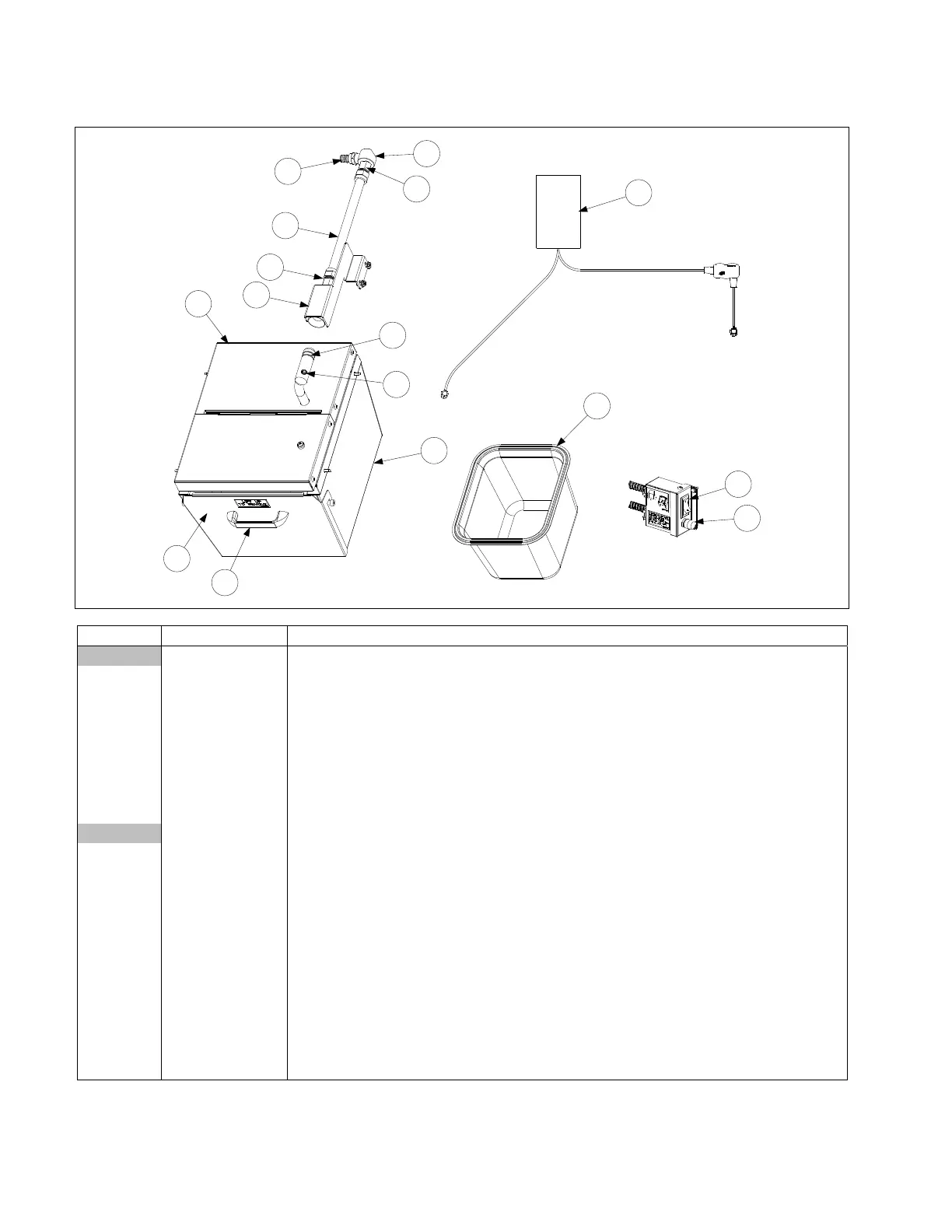

2.10.5 Shortening Melting Unit
1
2
4
5
6
7
8
9
10
9
12
14
15
16
11
3
ITEM PART # COMPONENT
108-3406 Assembly, Heated Shortening
1 108-2983 Box Assembly, Heated Shortening
2 108-3001 Assembly, Heated Shortening Lid
3 810-3957 Pan, Heated Shortening
4 108-3372 Cover, Shortening Box Front
5 810-0180 Handle
√ 6 826-1392 O-Ring (Pkg. of 5)
7 813-0568 Plug, ⅛-inch Socket Head Pipe
8 823-8079 Bracket W/A, Shortening Suction 3 battery
823-8147 Bracket W/A, Shortening Suction 4 battery
9 810-1669
Adaptor, Female ⅞” OD x ½”
10 810-1055 Flexline, ⅝” OD x 11.5-inch
11 807-1321 Holder, Fuse
* 807-1555 Fuse 5 Amp 240V (use 807-2799 for 10Amp fuse 120V)
12 813-0908 Adaptor, ½” NPT 90°
13 810-3820 Fitting, Quick Connect Shurflo Pump
14 816-0782 O-Ring, Viton #111
15 807-5268 Strips, Hot Box Heater with controller 240V (use 807-5321 for 120V)
16 807-4036 Switch
* 807-1098 Heater Strip Assembly, 240V, 25W 18” (use 807-1105 for 120V)
* 807-1419 Heater Strip Assembly, 240V, 45W 36” (use 807-1420 for 120V)
* 807-1473 Heater Strip Assembly, 240V, 70W 56” (use 807-1472 for 40W 120V)
* Not illustrated.
√ Recommended parts.
