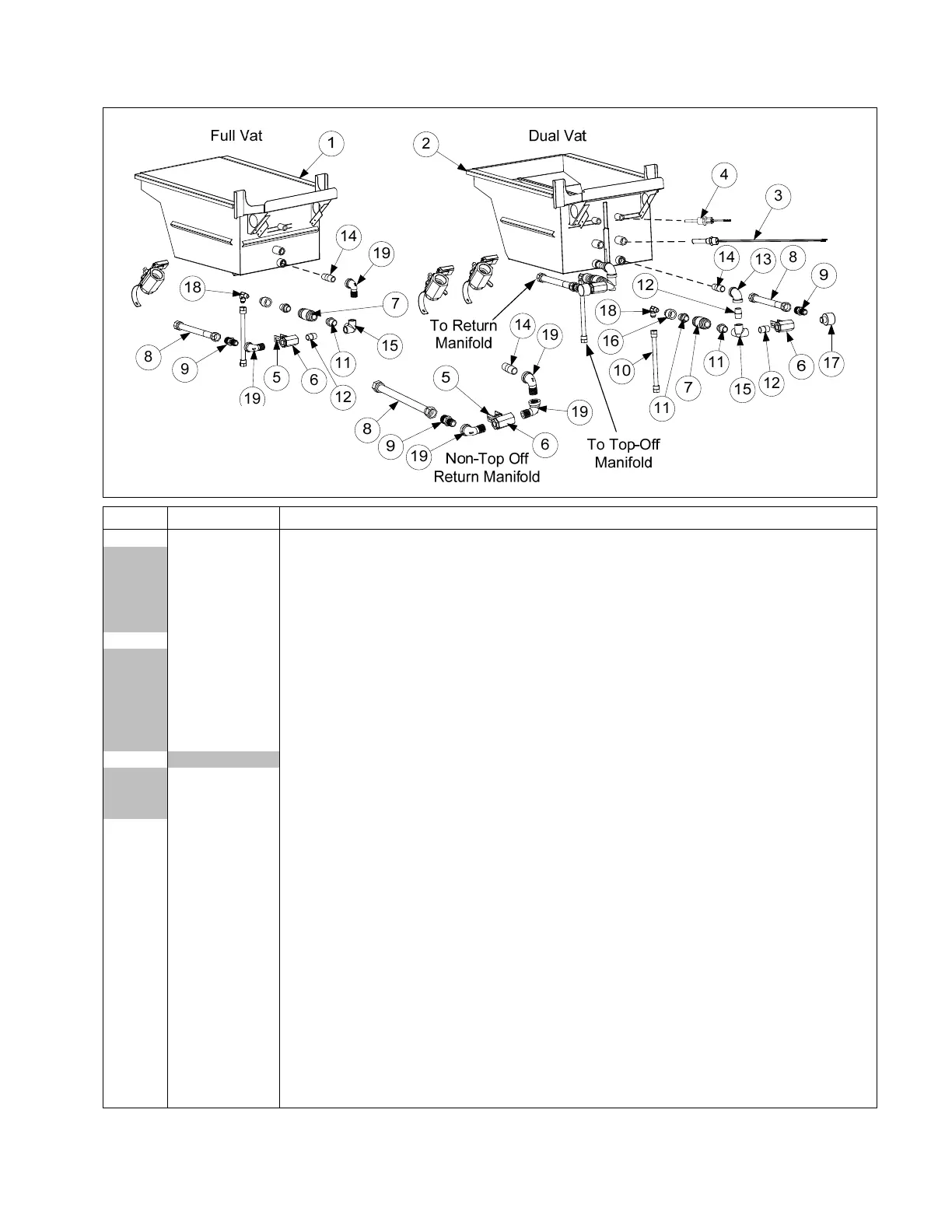

2.8 Frypot Assemblies and Associated Parts
ITEM PART # COMPONENT
1 823-7889 Frypot, Full-Vat OCF with top off prior to 07/2014
823-8950 Frypot, Full-Vat OCF with top off after 06/2014
823-7886 Frypot, Full-Vat OCF no top off prior to 07/2014
823-8951 Frypot, Full-Vat OCF no top off after 06/2014
823-8017 Frypot, Full-Vat OCF no top off and no filtration prior to 07/2014
823-8949 Frypot, Full-Vat OCF no top off and no filtration after 06/2014
2 823-8060 Frypot, Dual-Vat OCF with top off prior to 07/2014
823-8954 Frypot, Dual-Vat OCF with top off after 06/2014
823-8059 Frypot, Dual-Vat OCF no top off prior to 07/2014
823-8956 Frypot, Dual-Vat OCF no top off after 06/2014
823-8061 Frypot, Dual-Vat OCF no top off and no filtration prior to 07/2014
823-8953 Frypot, Dual-Vat OCF no top off and no filtration after 06/2014
824-2210 Riser, DV Frypot`
3 Thermostat Assembly, High-Limit Standard
826-2454 Non-CE Full Vat 425°F (218°C) (14 and 17kW FV) (Color Coded Black 806-7543)
826-2456 Non-CE Full Vat 435°F (224°C) (17kW and 14kW DV ) (Color Coded Red 806-8035)
826-2455 CE Full Vat 415°F (213°C) (14kW and 17kW CE) (Color-Coded Yellow 806-8132)
4 826-2569 Probe, Temperature ATO RTD Kit
5 200-5438 Handle, Valve Rear Flush
* 900-2935 Retainer, Nut Oil Return Valve
6 810-0278 Valve, Return ½” Ball
7 810-0667 Valve, Check ½” 1 PSI
8 810-1067 Flexline, ⅝” OD x 8.50” Long Return Oil
9 810-1668 Adaptor, Male ⅝” OD x ½”
10 810-3591 Flexline, ½” OD x 8.00” Long Top Off
11 810-3738 Adaptor, Check Valve Close NPL
12 813-0022 Nipple, ½” Close NPT BM
13 813-0062 Elbow, ½” BM x 90°
14 813-0298 Nipple, ½” x 2.00” NPT BM Pipe
15 813-0331 Elbow, V-Side Outlet ½” NPT
16 813-0555 Reducer, Bell ½” to ¼” NPT BM
17 813-0908 Adapter, ½” NPT 90° (also used in DV non-Top Off manifolds in place of item 19)
18 813-0940 Elbow, ¼” NPT x ⅜” Flare
19 813-0165 Elbow, St ½” x ½” NPT 90° BM
* Not illustrated.
√ Recommended parts.
See Page 2-7 for Drain
Valve Assembly.
