Frymaster OCF30E - Wiring Connectors, Pin Terminals and Power Cords

2-32

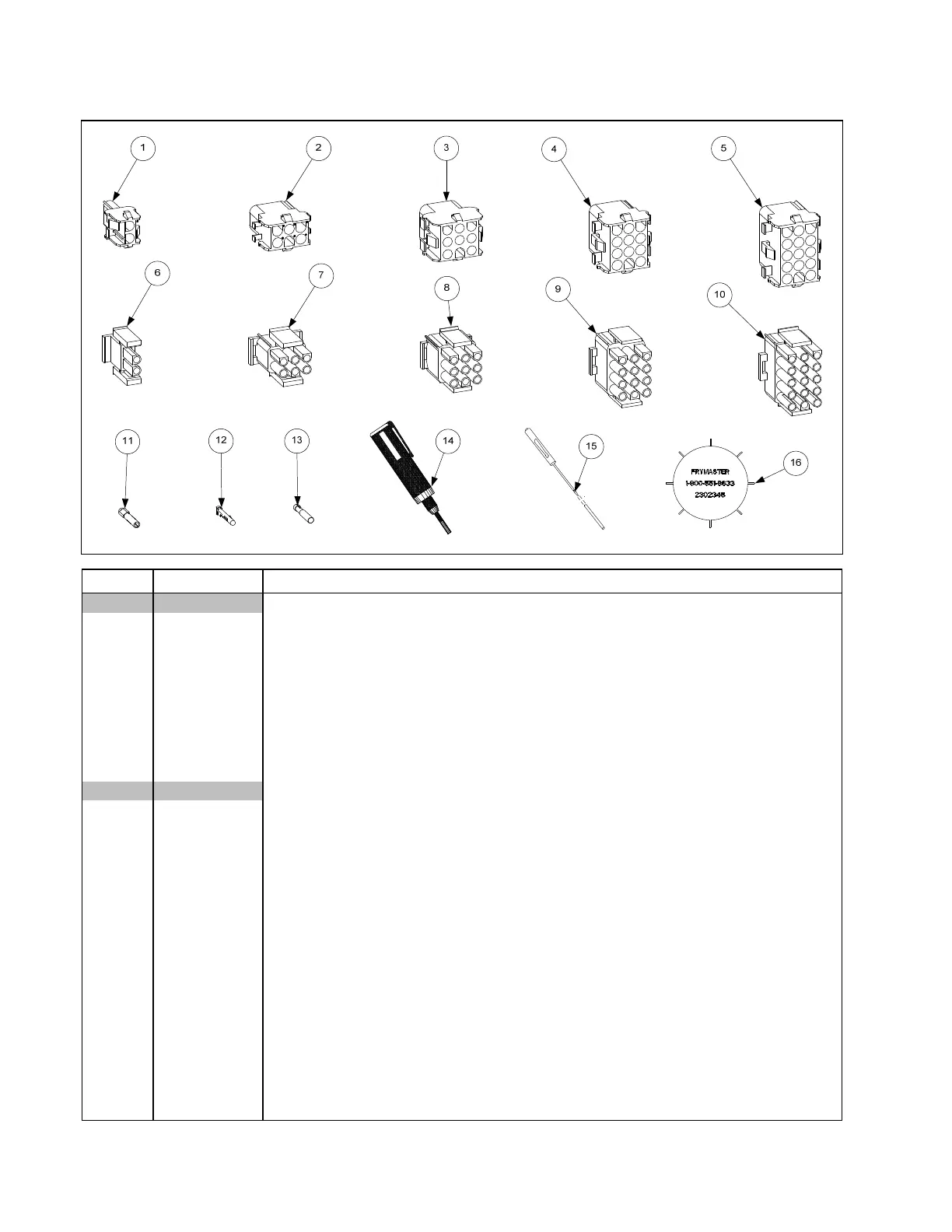

2.11 Wiring Connectors, Pin Terminals, and Power Cords
ITEM PART # COMPONENT
Power Cords
* 807-0154 100/120V
–
15A 3-wire, w/grounded plug
* 807-1685 100/208/240V
–
18A 3-wire, w/o plug
* 807-3817 208-250V/74A 3-Phase 4-wire w/plug 96” 8 awg
* 807-4668 208-250V/84A 3-Phase 4-wire w/plug 96” 6 awg
* 807-3834 208-250V/84A 3-Phase 4-wire w/plug 96” 6 awg
* 807-3428 220V/15A 3-wire, w
/
o plug Export 96” 8 awg
* 807-3836 240V/32A 3-Phase 5-wire w/plug Export 86.5”
* 807-3835 220-250V 3-Phase 5-wire w/o plug Export 92”
* 807-3867 220-250V/50A 3-Phase 5-wire w/plug Export 109”
Connectors
1 807-1068 2-Pin Female
2 807-0158 6-Pin Female
3 807-0156 9-Pin Female
5 807-0159 12-Pin Female
5 807-0875 15-Pin Female
6 807-1067 2-Pin Male
7 807-0157 6-Pin Male
8 807-0155 9-Pin Male
9 807-0160 12-Pin Male
10 807-0804 15-Pin Male
11 826-1341 Terminal, Female Split Pin (Pkg of 25)
12 826-1342 Terminal, Male Split Pin (Pkg of 25)
13 807-2518 Plug, Mate-N-Lock (Dummy Pin)
14 807-0928 Extract Tool Pin Pusher
15 806-4855 Pin Pusher Screwdriver Assembly
16 230-2345 SMT Pin Extracto
r
* 807-4660P
K
SMT Pin Service Repair Kit
* Not illustrated.
