Machine Components
69
Product Overview
2

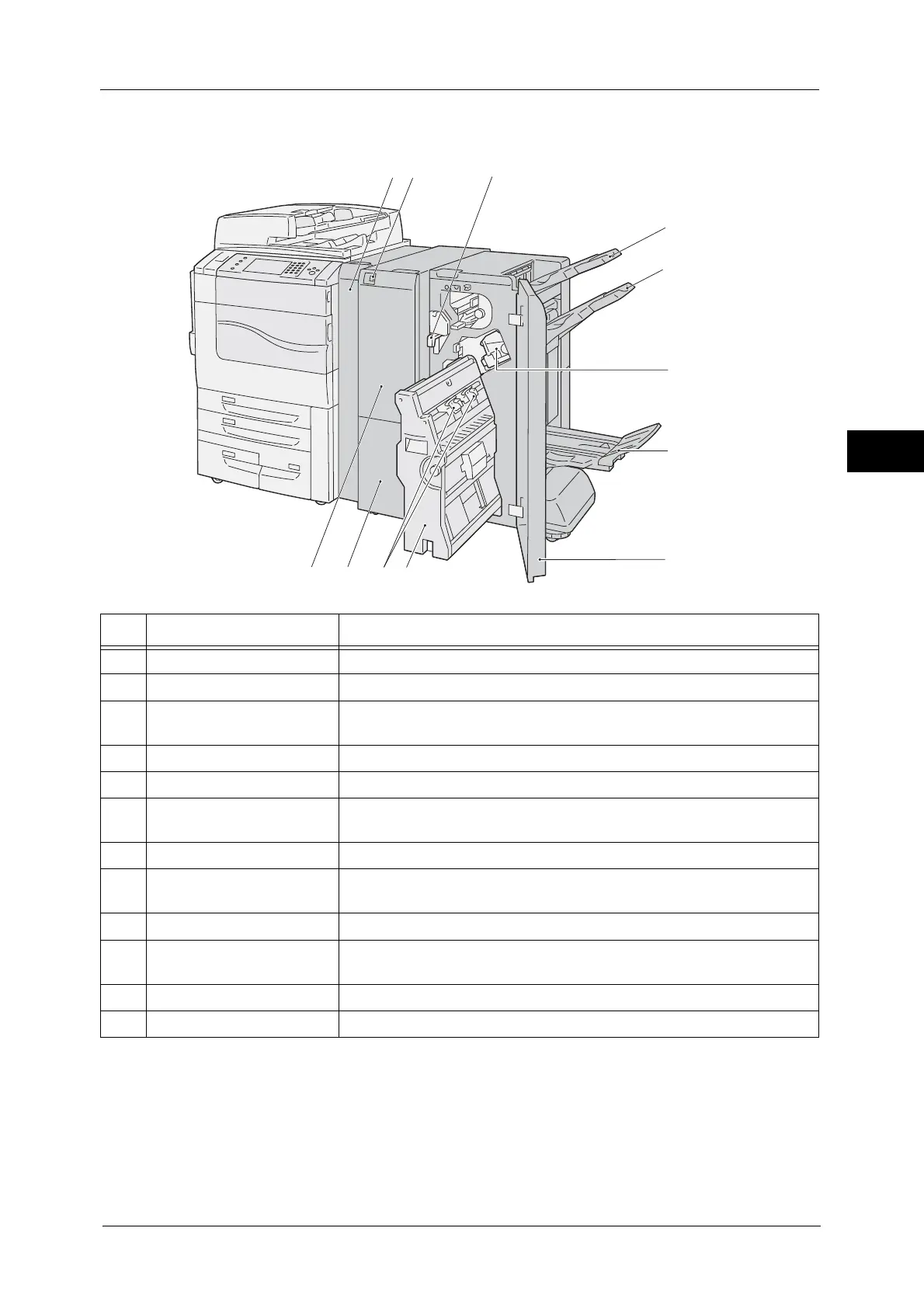

C3 Finisher (optional), C3 Finisher with Booklet Maker (optional), Folder Unit CD1
(optional)
Note • In some sections of this guide, “C3 Finisher” and "C3 Finisher with Booklet Maker" are referred to as
"finisher".
8
1
2
11
3
4
5
6
7
10 9
12
No. Component Function
1 Transport Unit V1 front door Open this door to clear paper jams.
2 Tri-fold output tray button Press this button to open the tri-fold output tray.
3 Hole punch waste container Collects punch scraps from the puncher. Remove this container when
discarding the punch scraps.
4 Output tray Outputs are delivered here.
5 Finisher tray Outputs are delivered here.
6 Staple cartridge Staples are stored in this cartridge. Pull out this cartridge to replace staples
or clear staple jams.
7 Booklet tray Bound booklets are delivered here.
8 Finisher front door Open this door to clear paper or staple jams, replace staples, or discard
punch scraps.
9 Booklet unit This unit is for folding outputs in half and stapling the folded outputs.
10 Booklet staple cartridges Two staple cartridges for booklet creation. Take out the cartridges when
clearing staple jams, or when replacing them with new ones.
11 Tri-fold output tray Tri-folded outputs are delivered here.
12 Folder unit door Open this door to clear paper jams.
