System expansions
Installing a hard disk drive

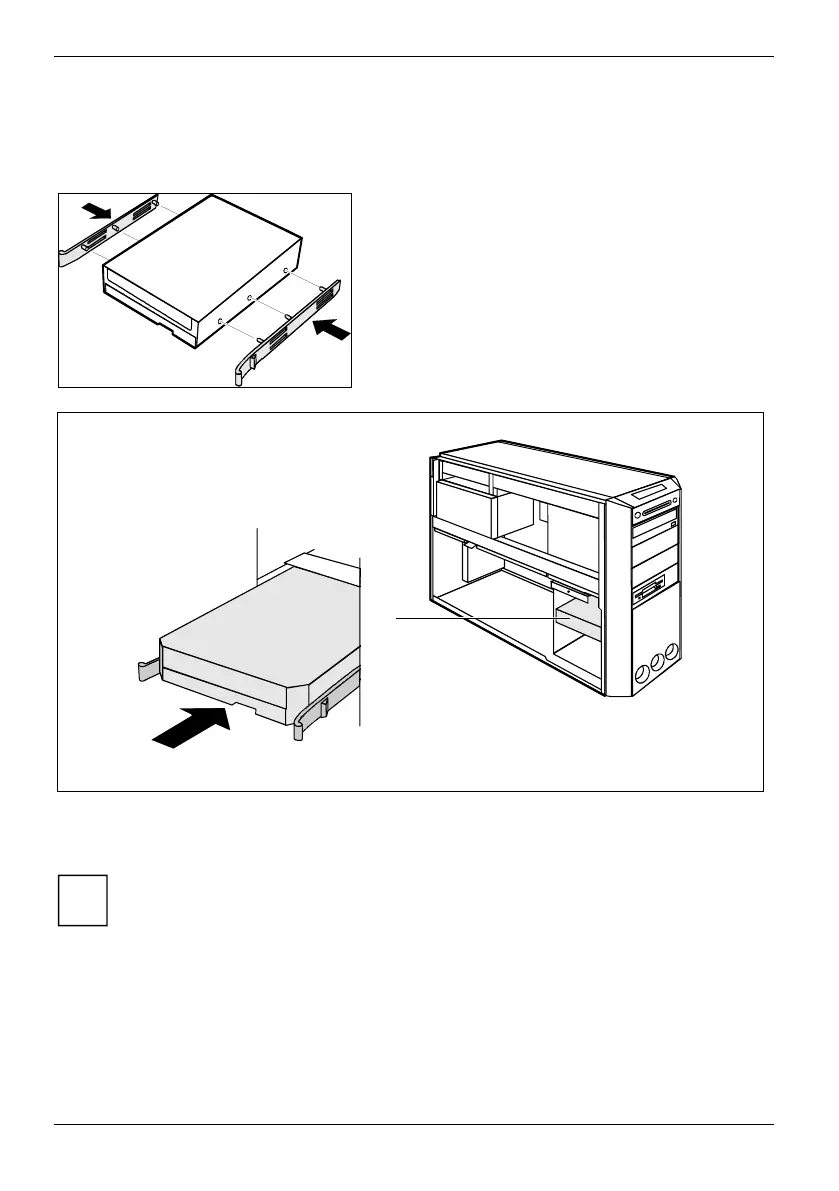

► Take the new hard disk drive out of its packaging.
► Make the required settings (e.g. master-slave settings or SCSI-ID) on the drive.
► Secure the EasyChange rails on the side of the
hard disk by inserting the upper pins of the
EasyChange rail in the corresponding holes of the
hard disk.
1
► Push the hard disk drive into the casing (1) until the EasyChange rails engage.
► Connect the data and power supply cables to the hard disk drive or to the hard disk drives.
i
Connect the blue plug of the data cable to the connection on the mainboard. Connect the
plug on the other end to the hard disk drive.
For SCSI drives, connect the hard disk ports to the plug of the controller or of the
mainboard.
54 A26361-K665-Z126-1-19, edition 1
