System expansions
Replacing the SmartCard reader

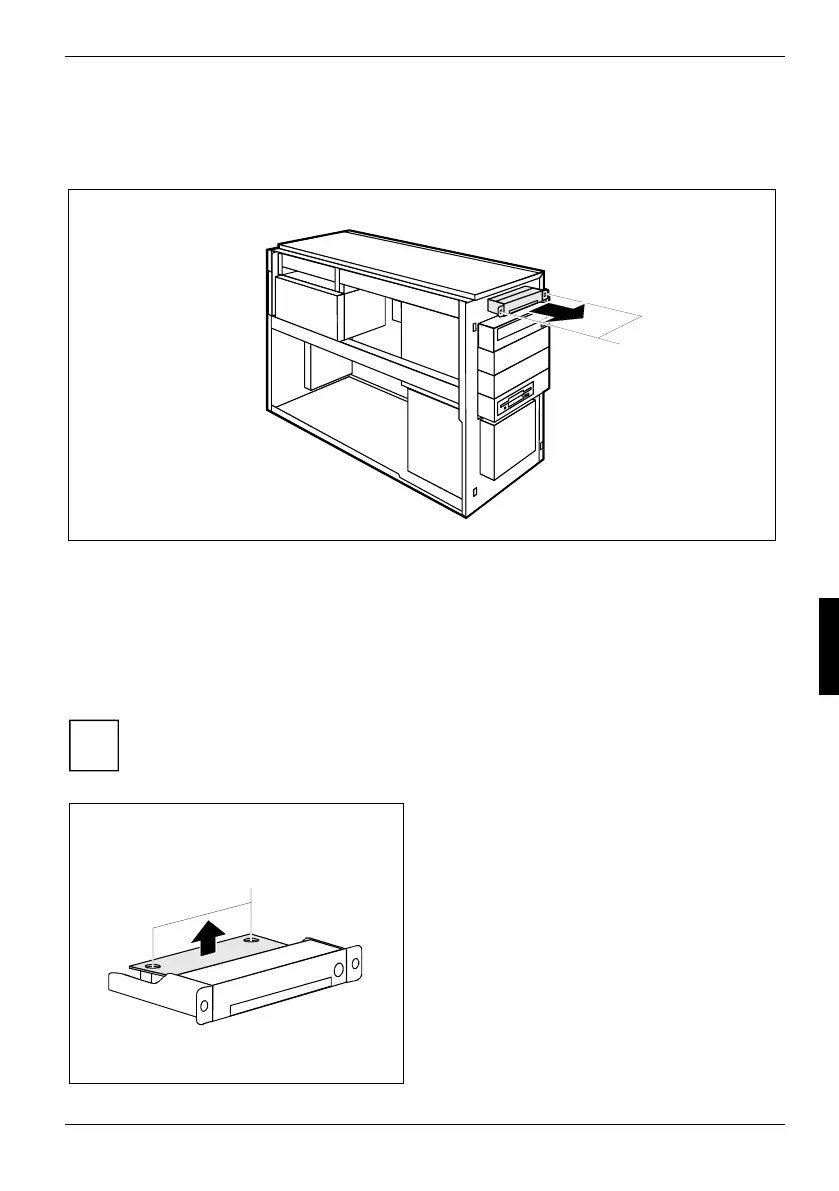

Removing a SmartCard reader
1
2
► Open the casing (see "Opening the casing").
► Remove the front (see "Removing the front panel").
► Disconnect the plug of the SmartCard data cable from the mainboard (see the manual for the
mainboard).
► Loosen the screws (1).
► Pull the SmartCard reader, together with its mounting, out of the casing (2).
i
If you remove the upper accessible drive first, you will find it easier to remove the
SmartCard reader together with its mounting.
1
2
► Remove the data cable from the SmartCard
reader.
► Undo the screws (1) and pull the SmartCard
reader out of the carrier (2).
A26361-K665-Z126-1-19, edition 1 57
