System expansions
Installing and removing a board
!
Please take note of the section "Information about boards".
The number, position and arrangement of the board slots on the mainboard can be found in the
manual for the mainboard. Boards may already be installed when the device is shipped.
Installing a board
► Open the casing (see "Opening the casing").
For workstations with a fan only:
► Remove the fan (see "Remove the fan").
1
2
3

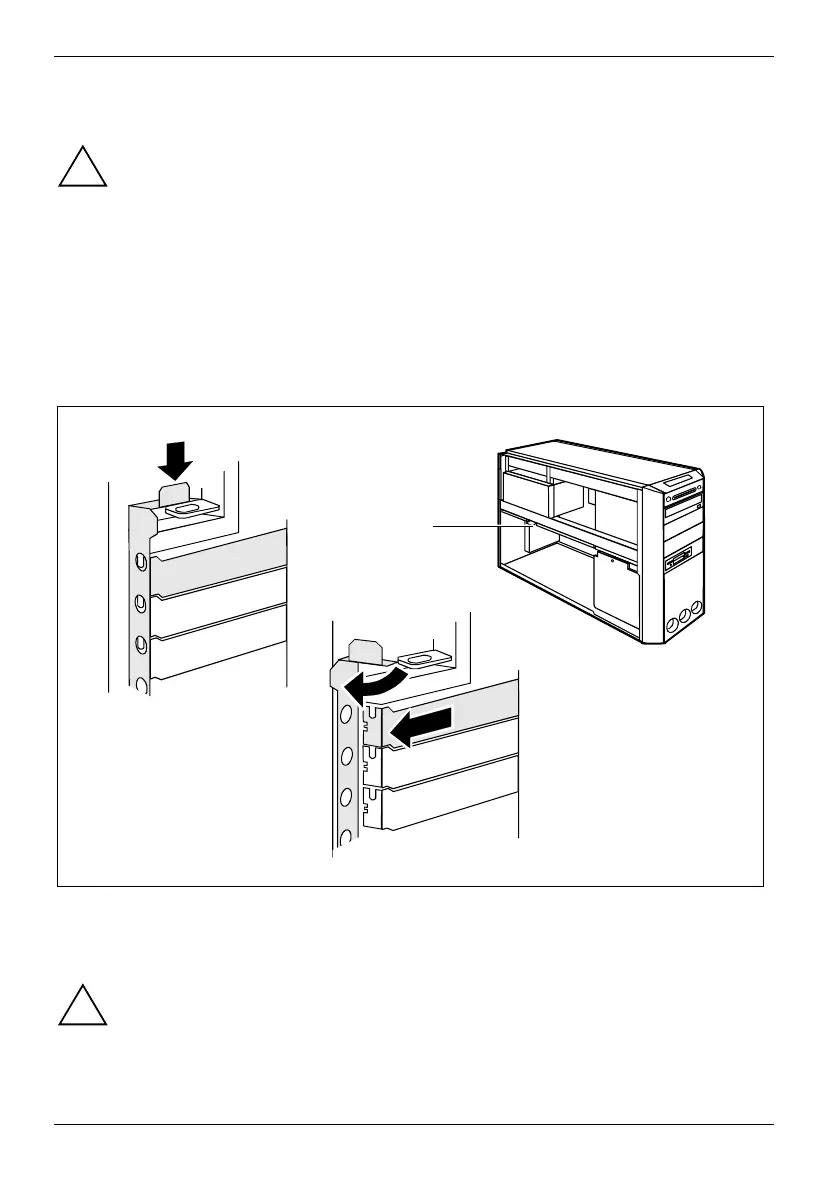

► Press the unlocking mechanism (1) down and open the locking rail (2). The word "PRESS" is
embossed on the unlocking mechanism.
► Remove the slot cover from the slot (3).
!
Do not dispose of the slot cover. For cooling, protection against fire and in order to comply
with EMC regulations, you must refit the slot cover if you remove the board.
► Take the new board out of its packaging.
38 A26361-K665-Z126-1-19, edition 1
