System expansions
Low-Profile boards
For units with a particularly low overall height, there are so-called low-profile boards with a slot cover
with a lower overall height to match the low-profile units. To also install these low-profile boards in
normal board slots, you must mount a corresponding slot adapter beforehand
Two-piece rear covers are fitted into the slots intended for low-profile boards. The two pieces are
connected together with a screw.
► Remove the desired rear cover and then remove the screw.

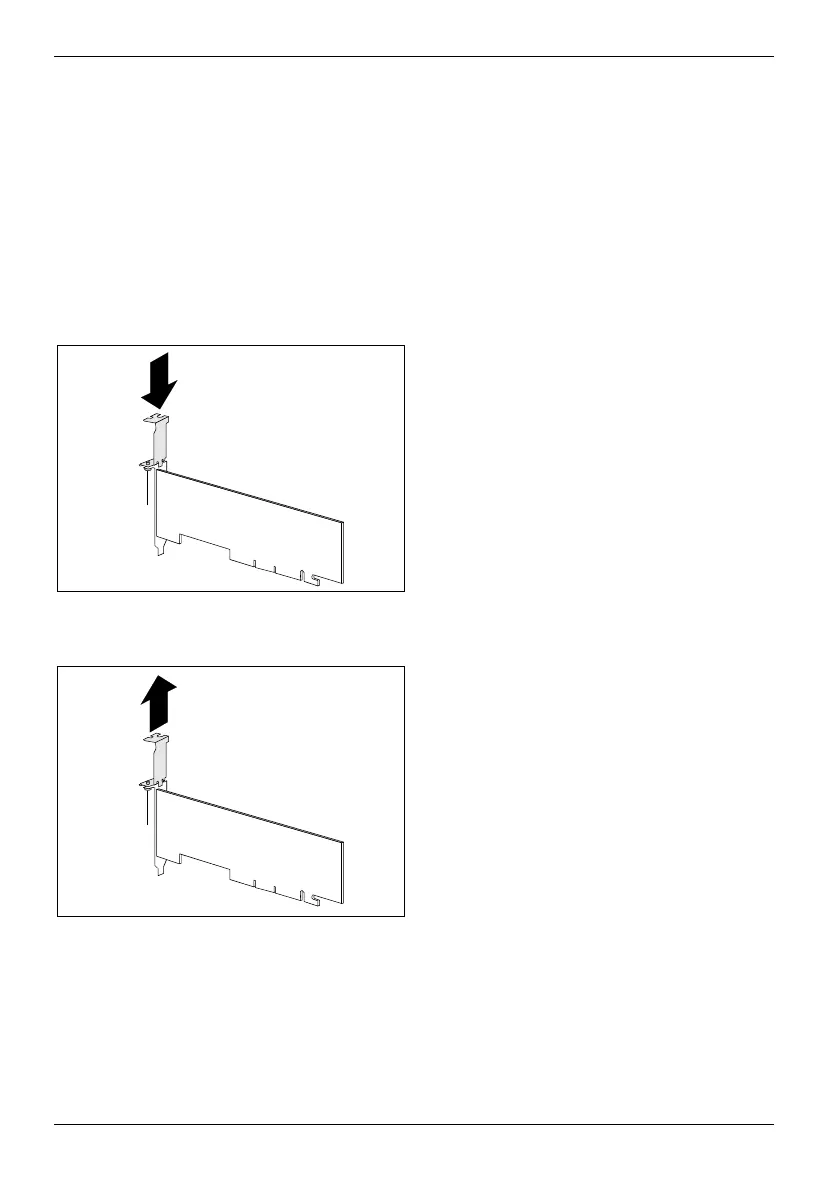

Mounting slot adapter
2
1
► Fit the slot adapter on the slot cover of the
low-profile board (1) and screw it on (2).
Now you can install the low-profile board in a
suitable slot like a normal board (see "Installing a
board").
Removing slot adapter
2
1
► Unscrew the screw (1) and remove the slot
adapter (2).
42 A26361-K665-Z126-1-19, edition 1
