System expansions
2
3
3
1
2
4

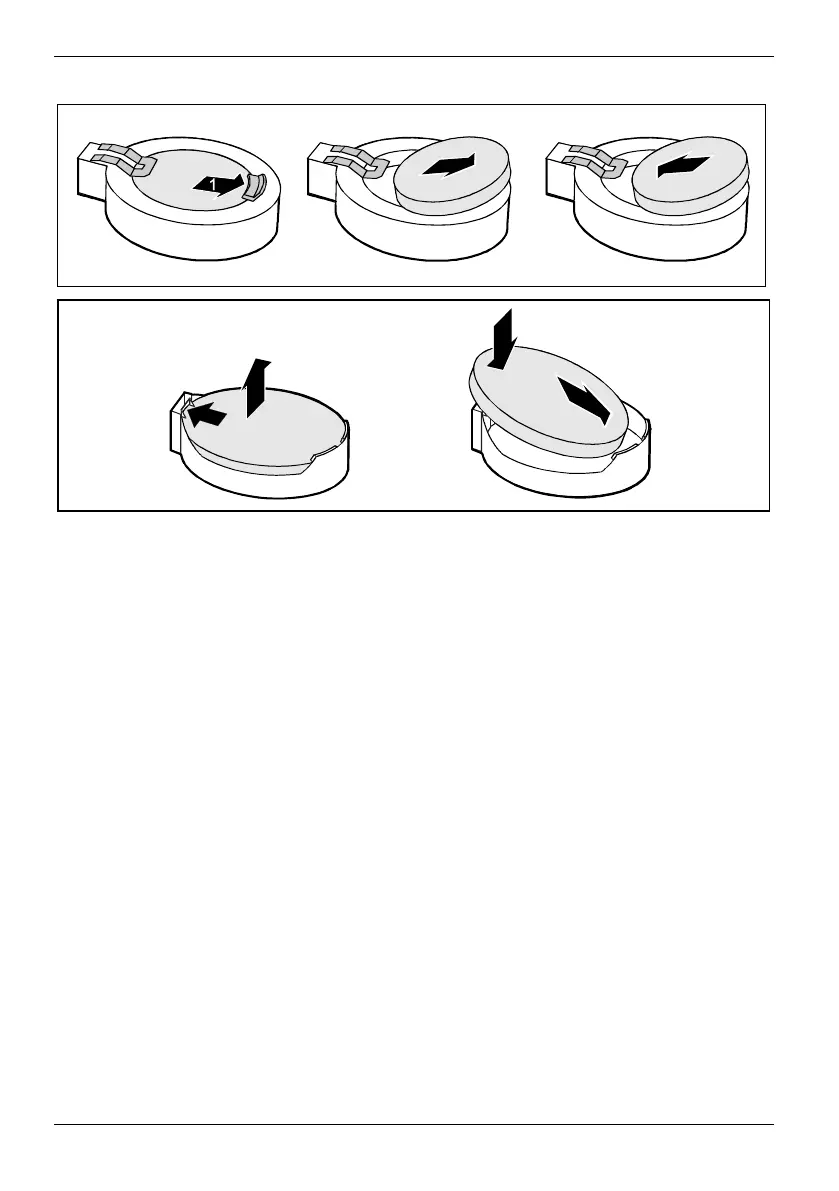

► Press the locking lug in the direction of the arrow; the battery jumps somewhat out of the
holder (1).
► Remove the battery (2).
► Push the new lithium battery of the identical type into the holder (3) and press it downward until
it engages (4).
Swinging the power supply in
► Swing the power supply into the casing until it meets the stop.
► Fasten the power supply in the casing with the screw.
► Close the casing (see "Closing the casing").
76 A26361-K665-Z126-1-19, edition 1
