System expansions

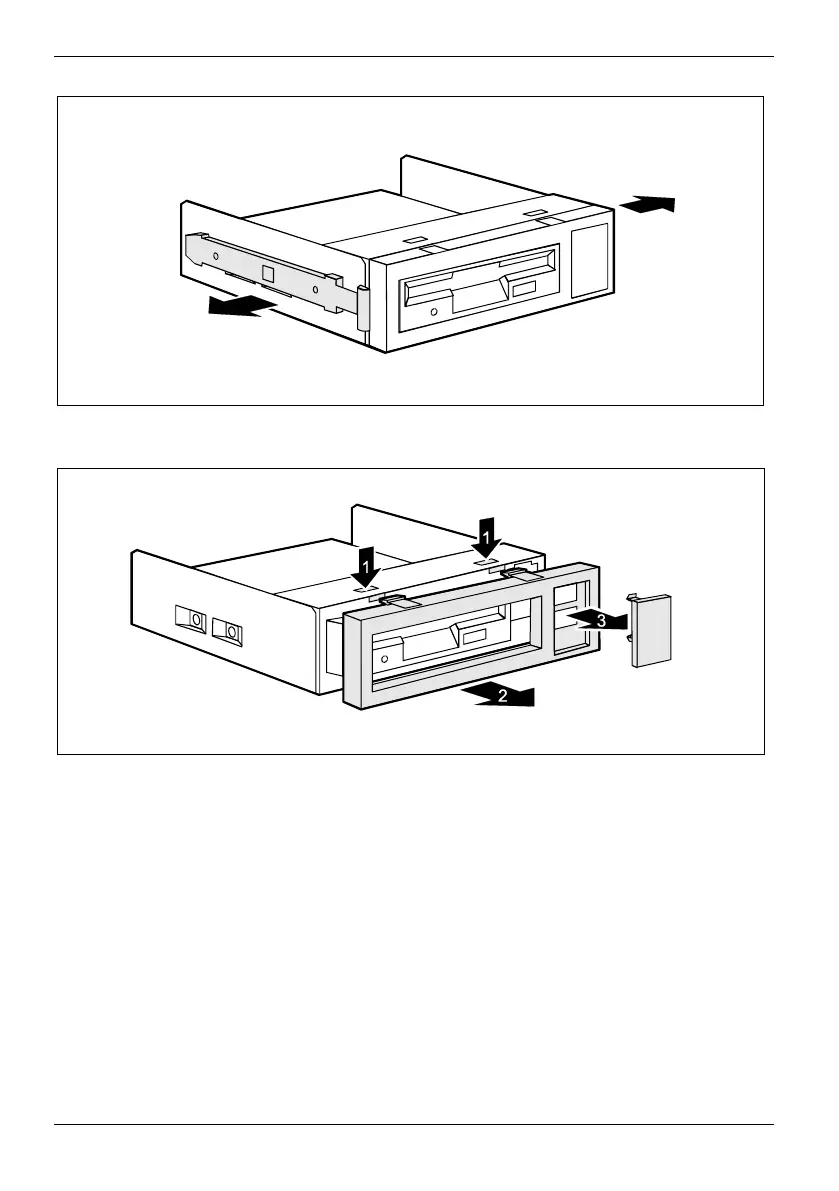

► Pull the EasyChange rails off the floppy disk slide-in module.
► Detach the locking mechanisms (1) and remove the front bezel of the floppy disk slide-in
module (2).
► Remove the blind cover from the bezel of the floppy disk slide-in module (3).
60 A26361-K665-Z126-1-19, edition 1
