System expansions

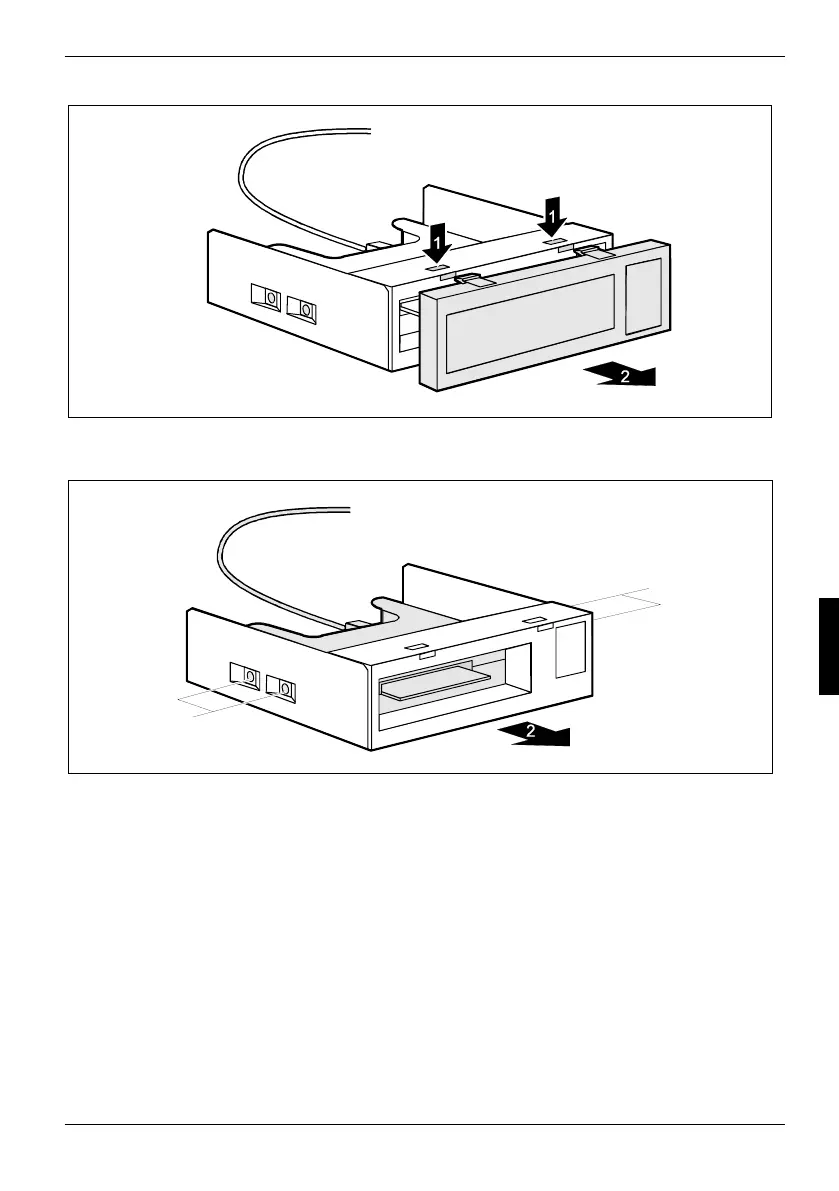

► Detach the locking mechanisms (1) and remove the bezel (2).
1
1
► Remove the screws on both sides of the slide-in module (1).
► Pull the WLAN module out of the slide-in module (2).
A26361-K665-Z126-1-19, edition 1 71
