Chapter 1: Introduction
A26361-D1691-Z120-1-7619, Edition 1 7

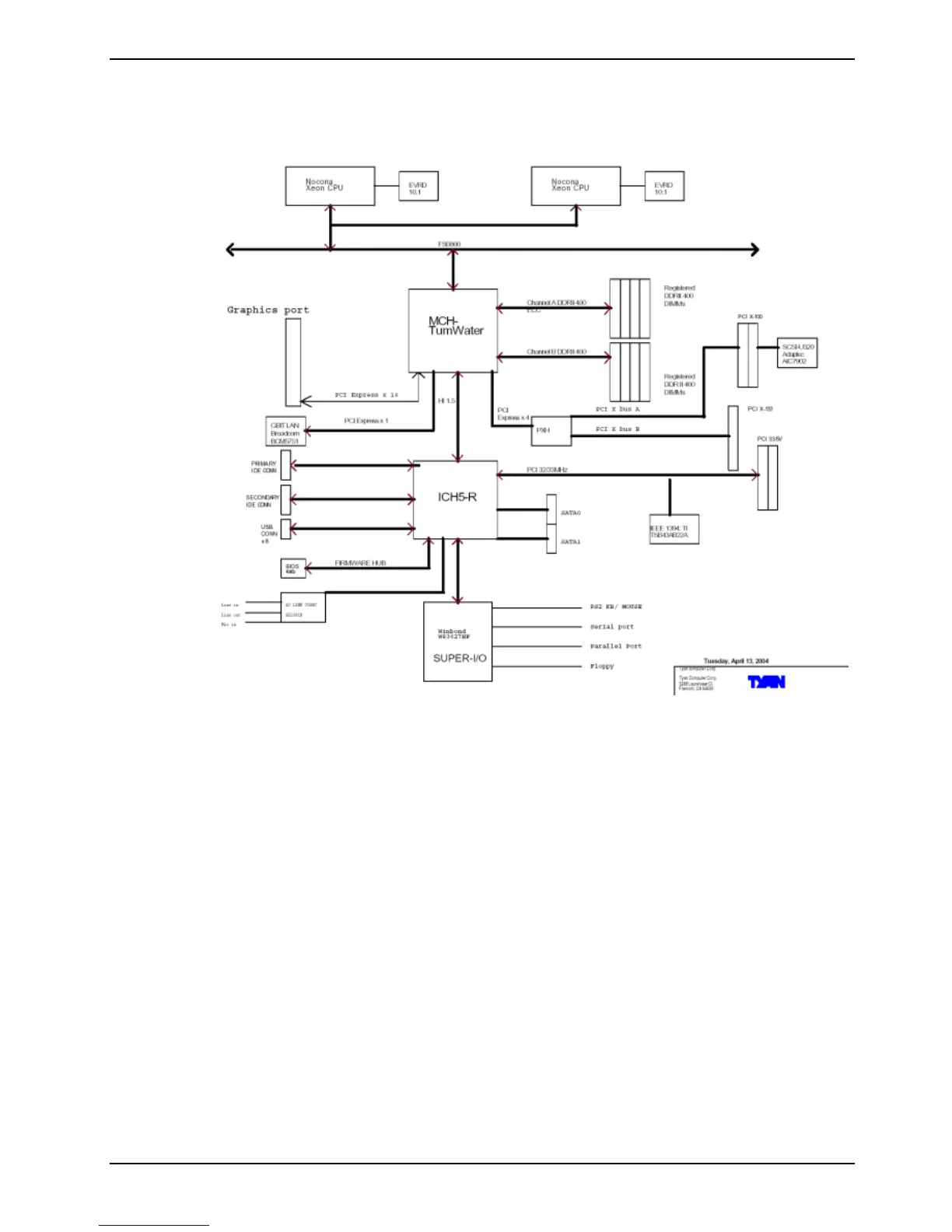

1.3 - Board Diagram
The above picture is purely representative. Due to engineering updates and new board
revisions, certain components may change and or be repositioned. The picture above may or
may not look exactly like the board you received.
The following page includes details on the vital components of this motherboard.
