3.5 - Memory Installation Procedure
When installing memory modules, make sure the modules align properly with the memory socket.
There should be keys (small indents) on your memory modules that fit according to the keys in the
memory socket. DDR modules and sockets have only one key, which is slightly near the center of

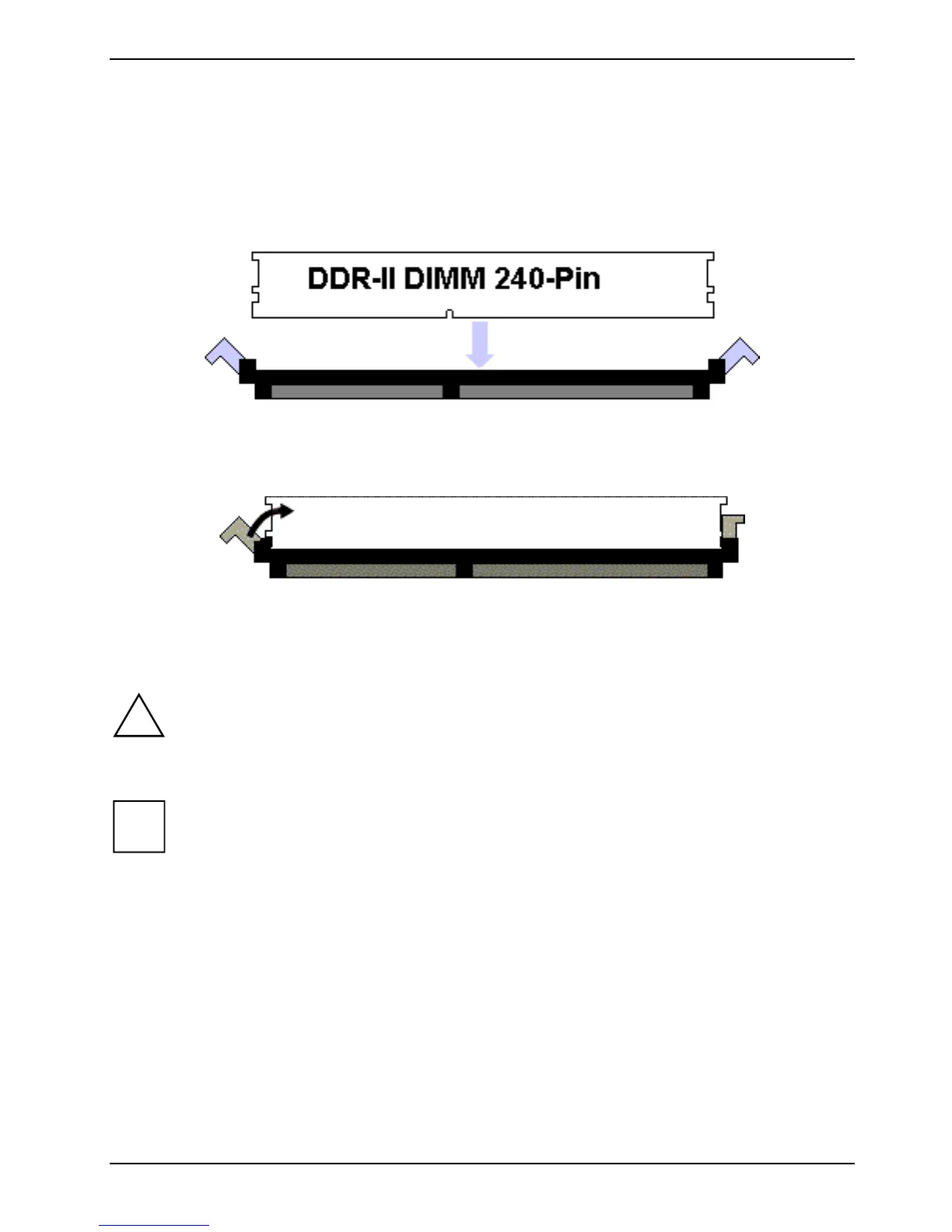

the module/socket. The method of installing memory modules is detailed in the following diagrams.
Once the memory modules are firmly seated in the socket, two clamps on either side will close and
secure the module into the socket. Sometimes you may need to close the clamps manually.
To remove the memory module, simply push the clamps outwards until the memory module pops
up. Then simply remove the module.
!
TIP: When installing memory, a module may require a considerable amount of force to
seat properly, although this is very rare. To avoid bending and damaging your
motherboard, place it on its anti-static bag and onto a flat surface, and then proceed with
memory installation.
i
Note: You MUST unplug the power connector to the motherboard before performing
system hardware changes, to avoid damaging the board or expansion device.
