Chapter 3: Board Installation

12 A26361-D1691-Z120-1-7619, Edition 1

3.1 - Key Component View

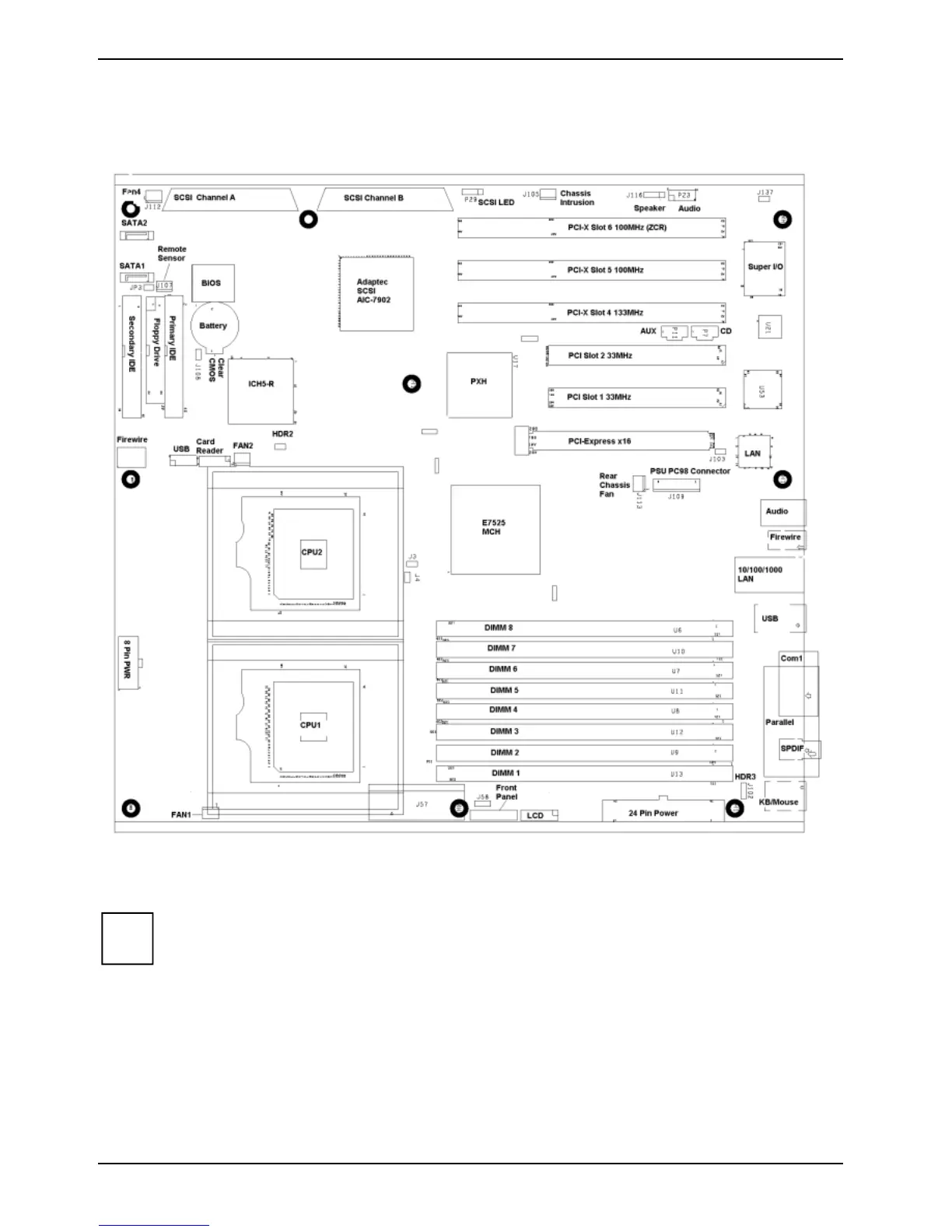

Fig. 3-1 Thunder i7525 S2676 Key Component View

This jumper diagram is representative of the latest board revision available at the

time of publishing. The board you receive may or may not look exactly like the

above diagram. The board parts are not to scale.
