Chapter 3: Board Installation
16 A26361-D1691-Z120-1-7619, Edition 1

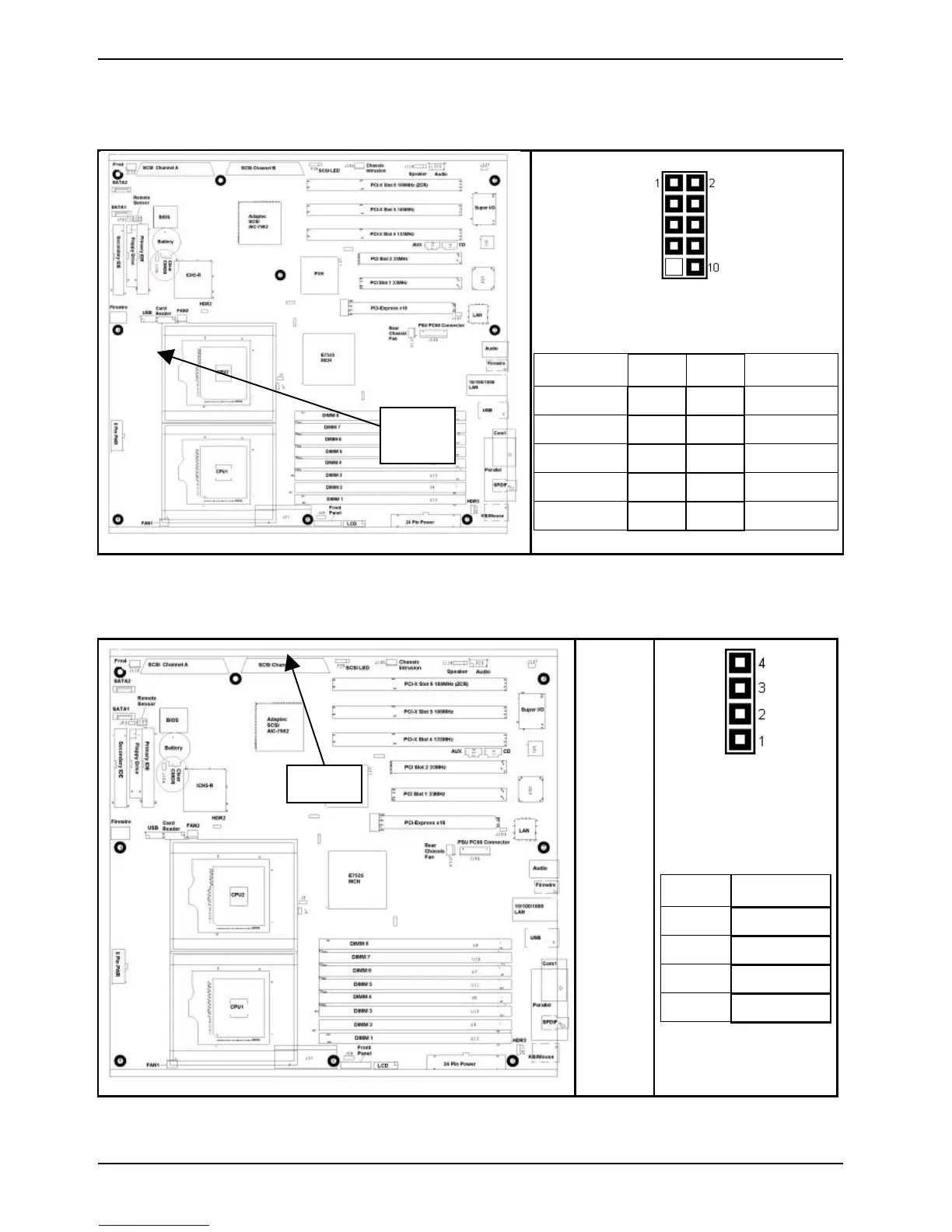

3.2.4 - Front USB Connector (USB2)
Front USB Header (P24)
Function Pin# Pin# Function
Power 1 2 Power
USB6- 3 4 USB7-
USB6+ 5 6 USB7+
GND 7 8 GND
Key 9 10 Reserved
3.2.5 - External HDD LED Input Header (P29)
P29
Pin# Function
1 NC
2 LED2-
3 LED2-
4 NC
P24
P29
