Chapter 3: Board Installation
A26361-D1691-Z120-1-7619, Edition 1 17
3.2.6 - Serial ATA Connectors (SATA0 & SATA1)
SATA0/SATA1 (from Intel’s FW82801ER/ICH5R South Bridge chip):
User can connect up to two serial ATA hard disks to run IDE mode or configure both drives to a
RAID under Windows. The RAID level 0 or level 1 function is supported for Microsoft’s Windows XP
and Windows 2000 operating systems.

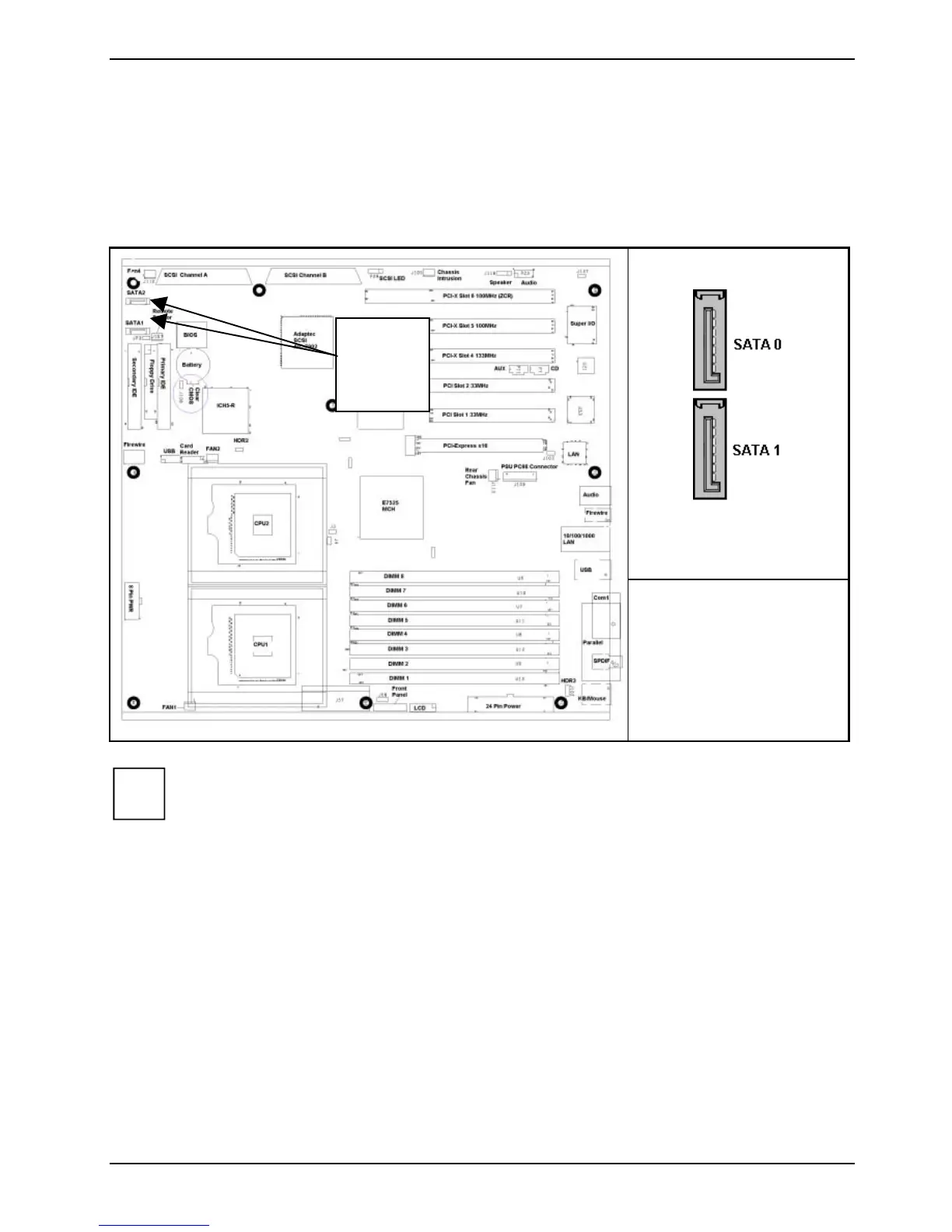

Serial ATA connectors
i
For information regarding the setup of SATA/RAID, you may search the contents of
the driver CD that shipped with your motherboard or visit our website at:
HTTP://WWW.TYAN.COM/
SATA0
&
SATA1
