Preparing for use Setting up the PC
8 A26361-K657-Z101-4-7619
Setting up the PC
!
When installing your PC, give consideration to the recommendations and safety notes in
the "Safety and Ergonomics" booklet.
Set up the PC only in its correct orientation. The points to observe are illustrated on the
following pages.
We recommend that you place your equipment on a surface with good anti-slip qualities.
In view of the multitude of different finishes and varnishes used on furniture, it is possible
that the rubber feet of the devices will mark the surface they stand on.
Do not expose the PC to extreme environmental conditions (see "Technical data" chapter)
and protect it from dust, humidity and heat.
Provide at least 200 mm of clearance in front of, to the left of, and behind the ventilator
area of the PC to ensure adequate ventilation. Do not cover the ventilation area of the
monitor or the PC.
Do not place several PCs one above the other.

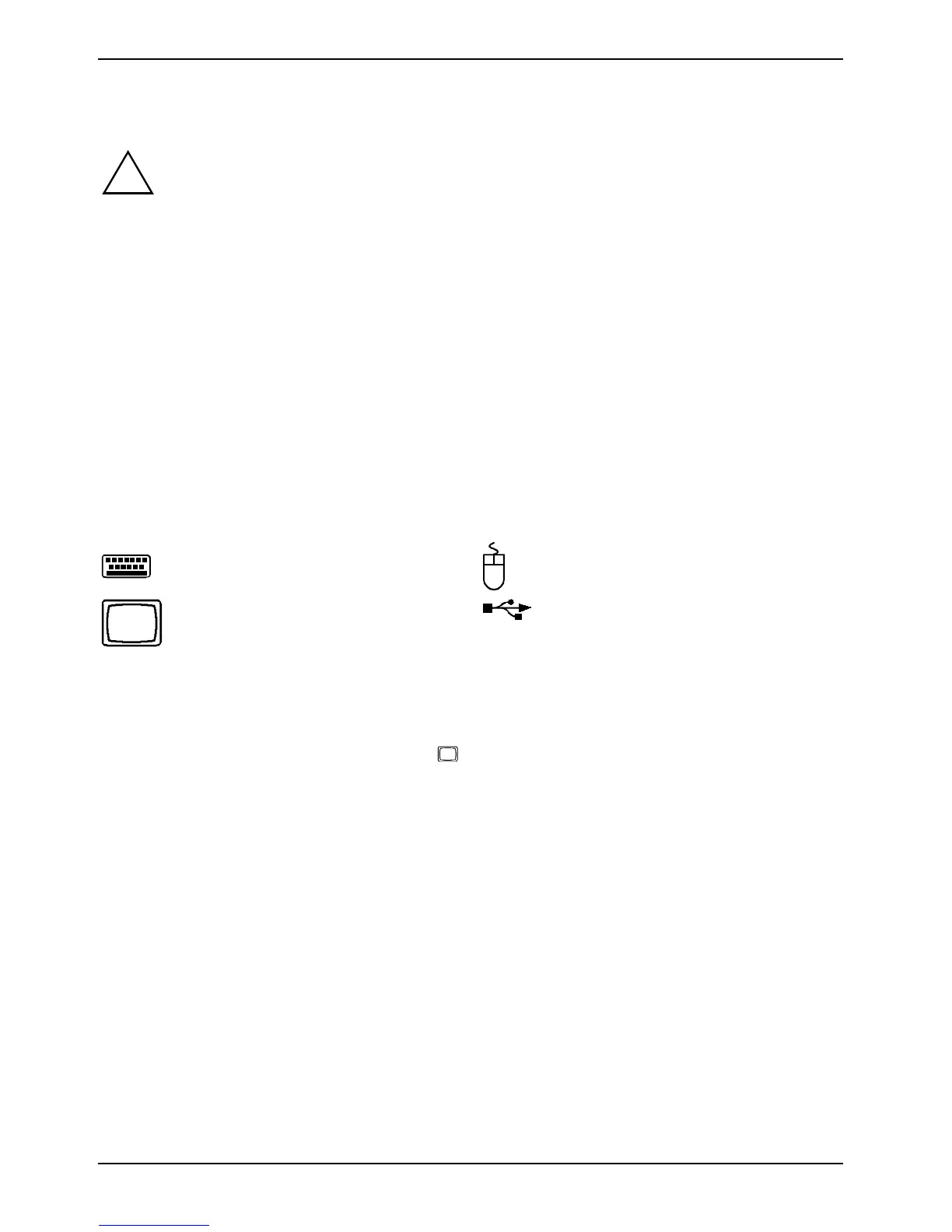

Connect the monitor, mouse and keyboard
The ports for the monitor, mouse, and keyboard are on the rear and front of the PC.
PS/2 keyboard port / purple PS/2 mouse port / green
Monitor port / blue
USB port / black
Connecting the monitor
Ê Follow the instructions contained in the monitor manual to prepare the monitor for operation.
Ê Plug the data cable into the monitor port of the PC.
Ê Connect the data cable to the connector on the monitor.
