Installing and removing a board System expansions
A26361-K657-Z101-4-7619 37
Removing a board
Ê Open the casing (see "Opening the casing").
Ê Disconnect the cables connected to the board.
1
2
3
4

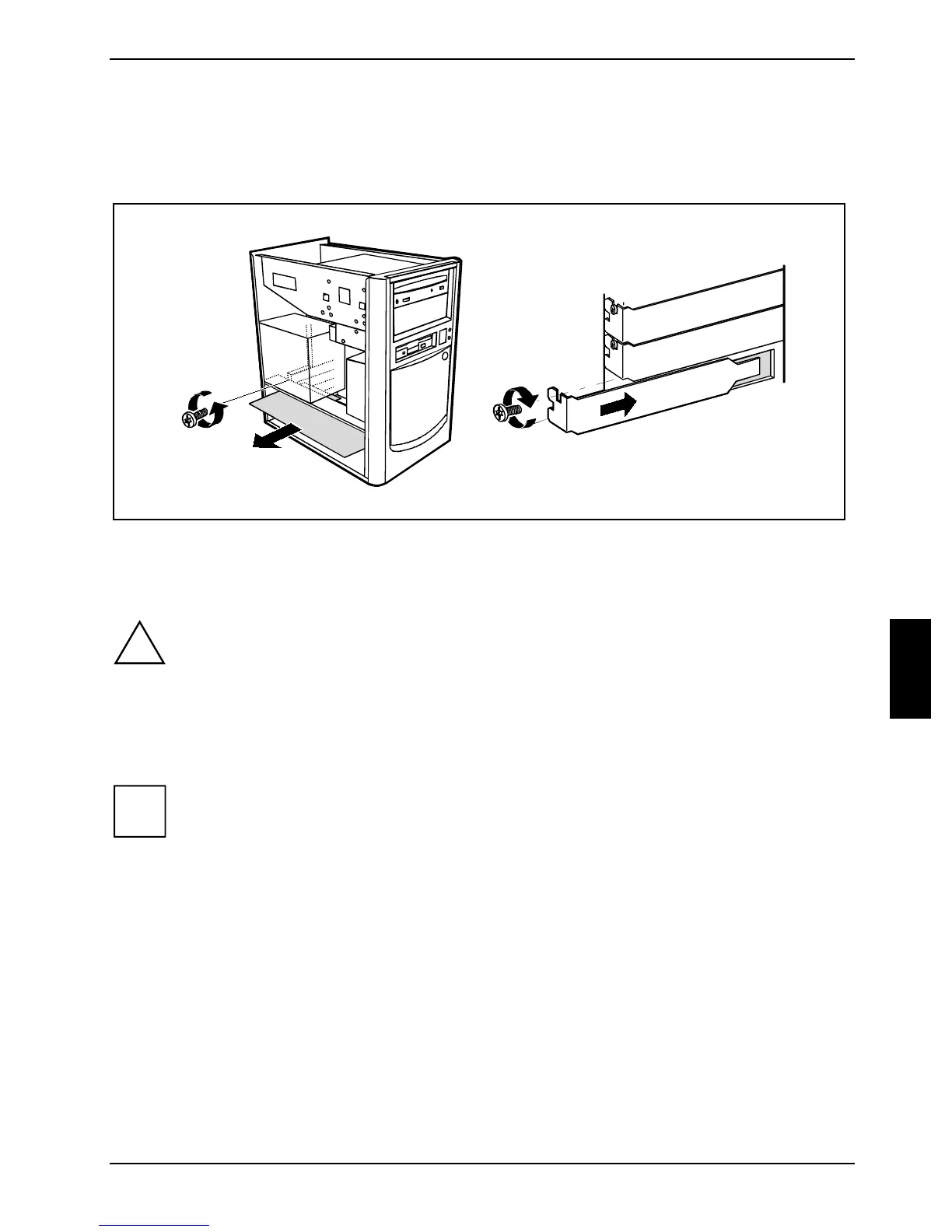

Ê Remove the screw (1).
Ê Pull the board out of the casing (2).
Ê Place the board into appropriate packaging.
!
To ensure proper cooling, fire protection and observation of the relevant EMC
(electromagnetic compatibility) regulations, you must mount a rear slot cover plate.
Ê Push the rear slot cover plate into the slot (3).
Ê Fasten the rear slot cover plate with the screw (4).
Ê Close the casing (see "Closing the casing").
i
If you have installed or removed a PCI board, please check the relevant PCI slot settings
in the BIOS Setup. If necessary, change the settings. Further information is provided in the
PCI board documentation.
