System expansions Installing and removing drives
40 A26361-K657-Z101-4-7619
3
1
2
2

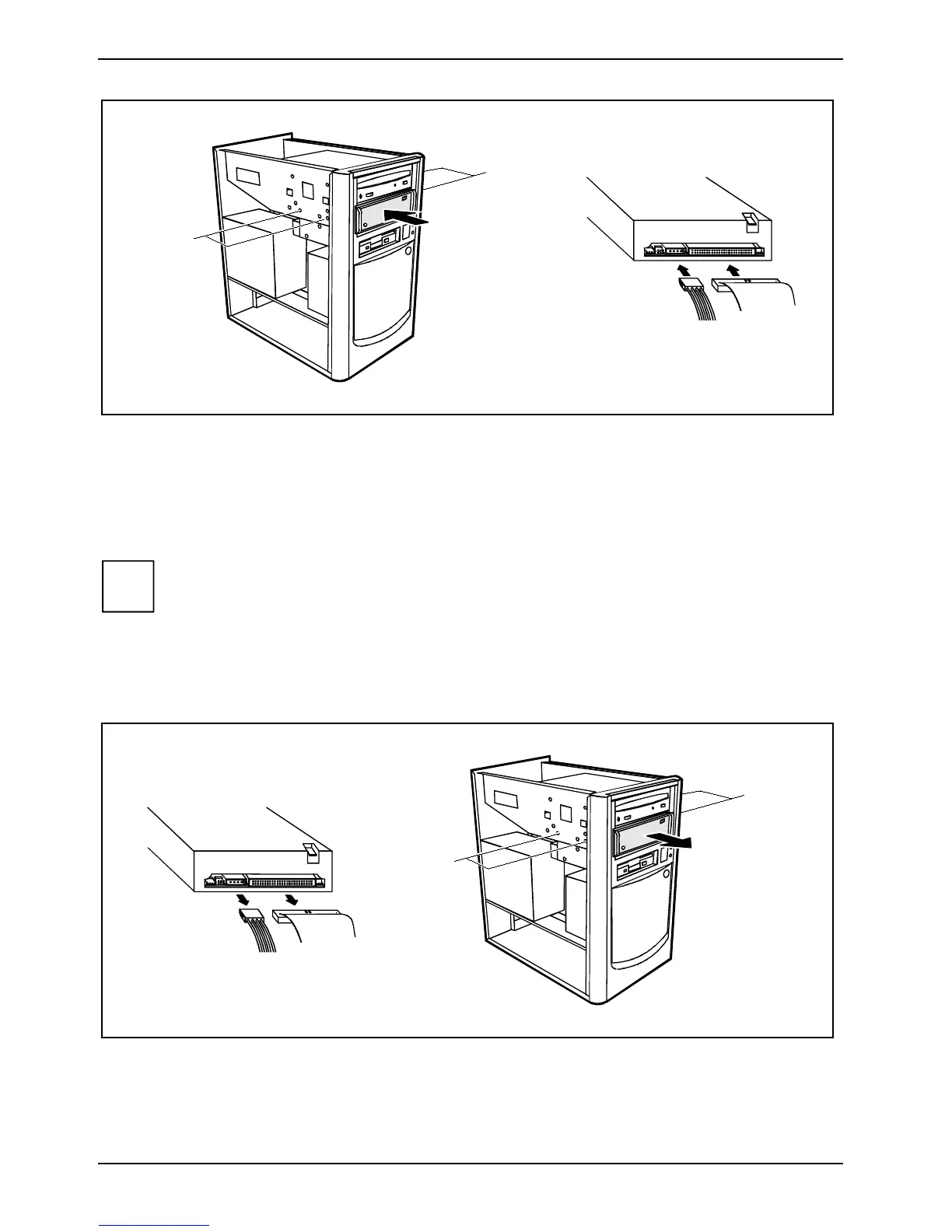

Ê Slide the drive into its bay (1).
Ê Fasten the drive into place with the screws (2).
Ê Plug the connectors of the data cable and the power supply cable into the drive (3). Make sure
the polarity is correct.
Ê Close the casing (see "Closing the casing").
i
It may be necessary to modify the entry for the drive in the BIOS Setup.
Removing an accessible drive
Ê Open the casing (see "Opening the casing").
1
3
2
2
Ê Pull the data and the power supply connectors from the desired drive (1).
Ê Remove the screws (2), and take the drive out of the PC casing (3).
