System expansions Extensions to the system board
48 A26361-K657-Z101-4-7619

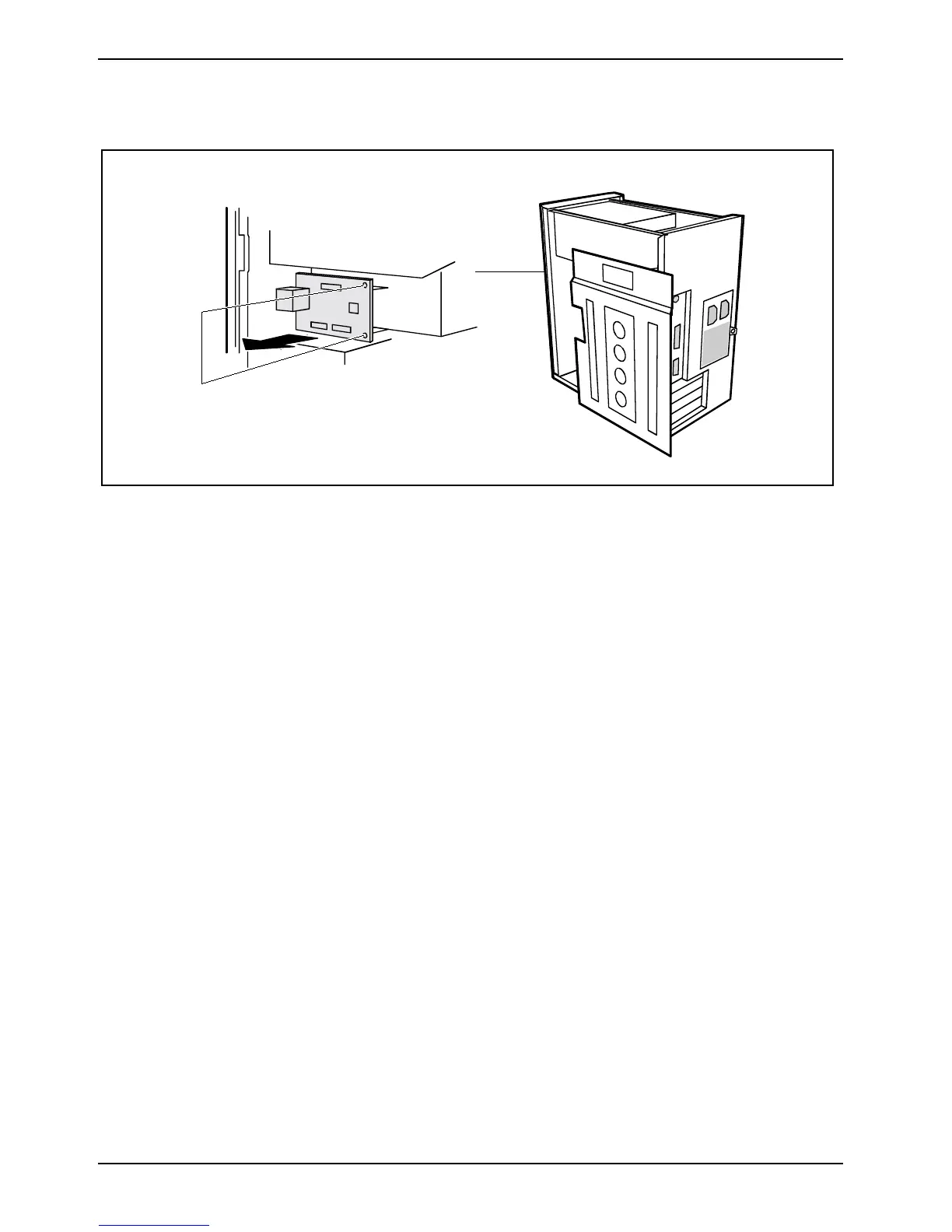

Removing a USB front panel
1
2
Ê Remove the system board carrier as described in "Replacing processor".
Ê Disconnect the cable from the USB front panel and from the system board.
Ê Remove the screws (1) and take out the USB front panel of the slot (2).
Ê Remount the bay cover from the front.
Extensions to the system board
Details on whether you can upgrade the main memory or the processor are provided in the
Technical Manual for the system board. Below the necessary steps are described to enable you to
work on the system board.
Ê Open the casing (see "Opening the casing").
Upgrading main memory
Ê Upgrade the memory as described in the Technical Manual for the system board.
Ê Close the casing (see "Closing the casing").
