System expansions Extensions to the system board
50 A26361-K657-Z101-4-7619
Replacing processor

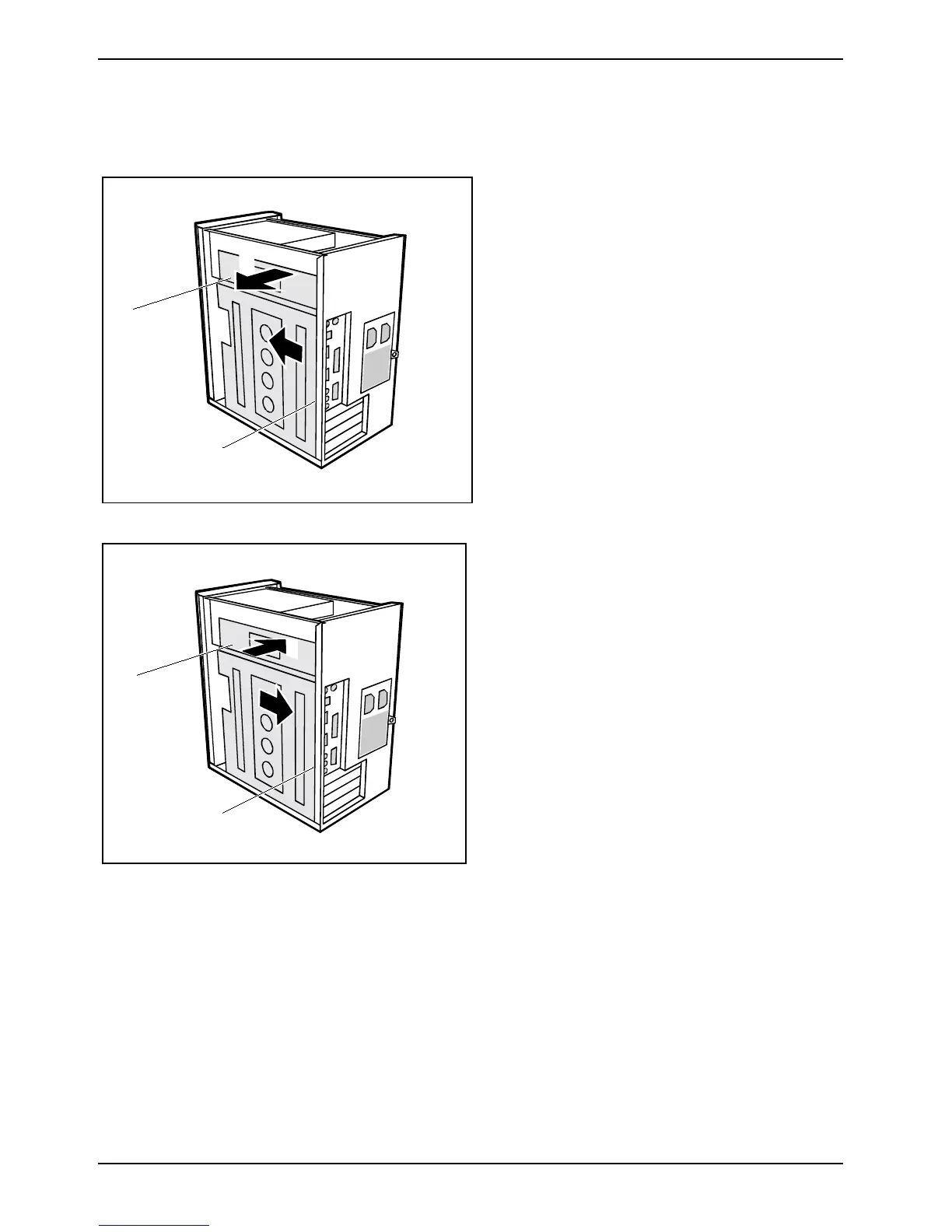

To replace the processor you must remove the system board bracket.
1
2
3
1
Ê Open the casing (see "Opening the
casing").
Ê Remove all boards (see "Removing a
board").
Ê Unscrew the screw on the system board
rack (1), push the system board rack
somewhat in the direction of the arrow (2)
and then tilt it out upward (3).
Replace the processor (see the Technical Manual for the system board).
3
2
1
3
Ê Fold the system board rack into the casing
again (1) and push it back into its original
position (2).
Ê Fasten the screw (3).
Ê Reinstall all boards (see "Installing a
board").
Ê Close the casing (see "Closing the
casing").
