Closing the casing System expansions
A26361-K657-Z101-4-7619 35
Closing the casing
a
3
3
3
2
1
b

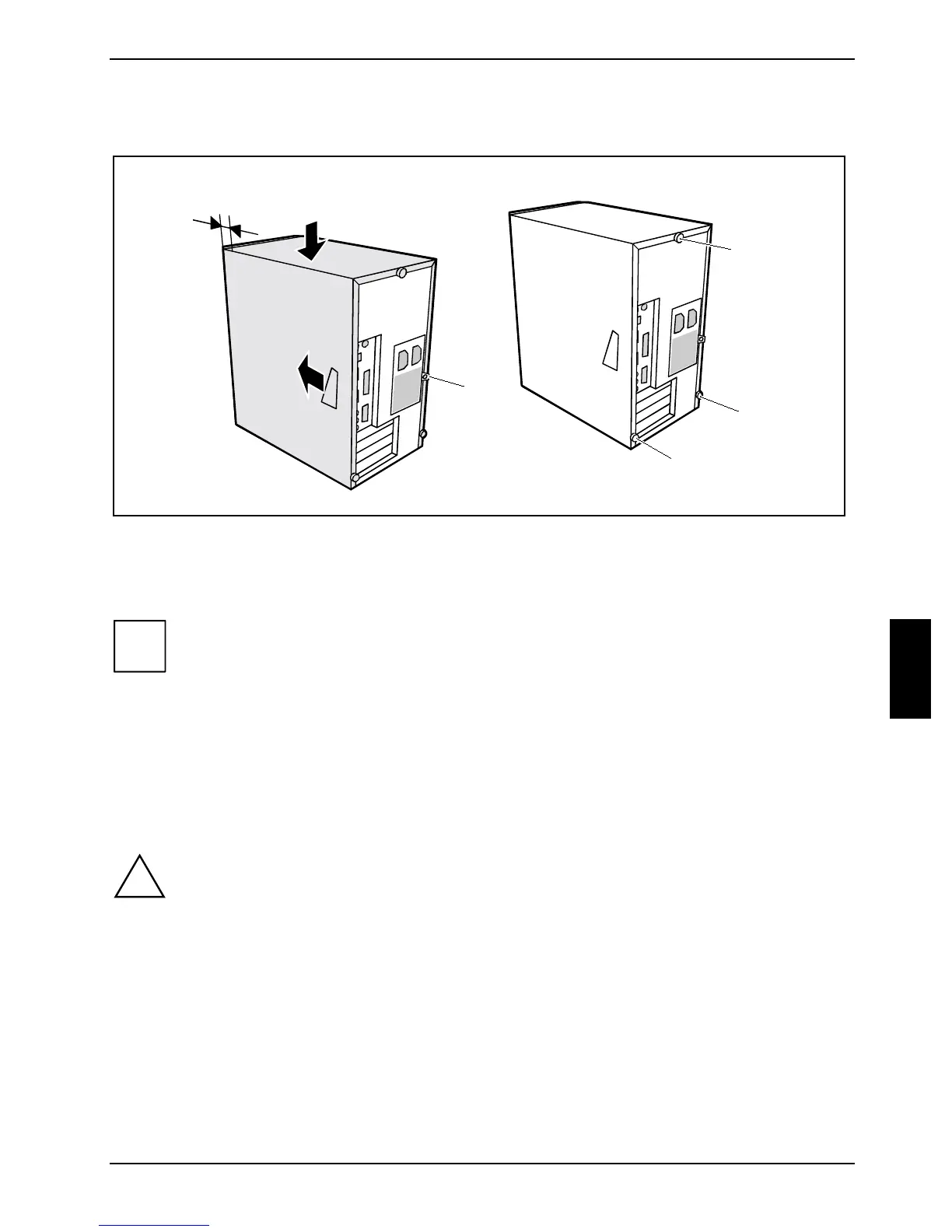

Ê Place the top cover on the casing base in the direction of the arrow (1) so that the distance (a)
is approx. 10 mm.
Ê Push the top cover in the direction of the arrow (2).
i
Make sure that the eye (b) for the anti-theft protection fits in the recess on the top cover.
Check whether the top cover is mounted straight.
Ê Fasten the screws (3).
Ê Return the PC to its original position.
Ê If you have disconnected cables, reconnect them to the connectors on the rear panel.
Installing and removing a board
!
Please take note of the "Information about boards".
You can install boards which are up to 290 mm long.
The number, position and arrangement of the board slots on the system board can be found in the
Technical Manual for the system board. Boards may already be installed when the device is
shipped.
