Preparing for use Connecting external devices
16 A26361-K657-Z101-4-7619
Ports

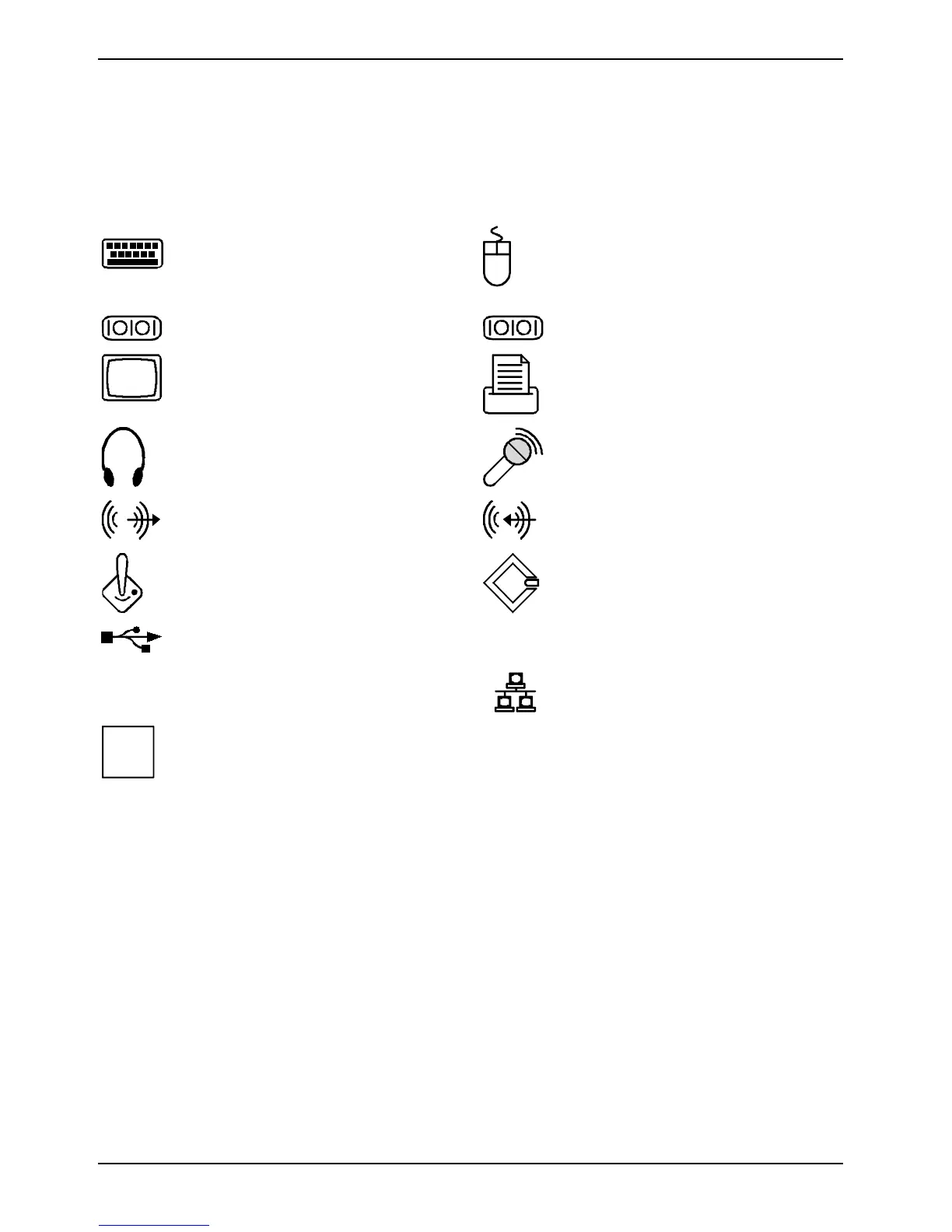

The ports for external devices are on the rear and on the front of the PC. The ports available on your
PC depend on the configuration level you have selected. The standard ports are marked with the
symbols shown below (or similar). Exact details of the position of the ports are supplied in the
Technical Manuals for the boards.
Keyboard port / purple
PS/2 mouse port / green
1
Serial interface 1 / turquoise
2
Serial interface 2 / turquoise
Monitor port / blue
Parallel interface / Printer / burgundy
Headphones port / orange
Microphone jack (mono) / pink
Audio output (Line out) / lime green
Audio input (Line in) / light blue
Game port / gold
SCSI connection
USB - Universal Serial Bus / black
LAN
LAN connector
i
Some of the devices that you connect require special drivers (see the operating system
and device documentation).
