System expansions Installing and removing a board
36 A26361-K657-Z101-4-7619
Installing a board
Ê Open the casing (see "Opening the casing").
1
2
3
4

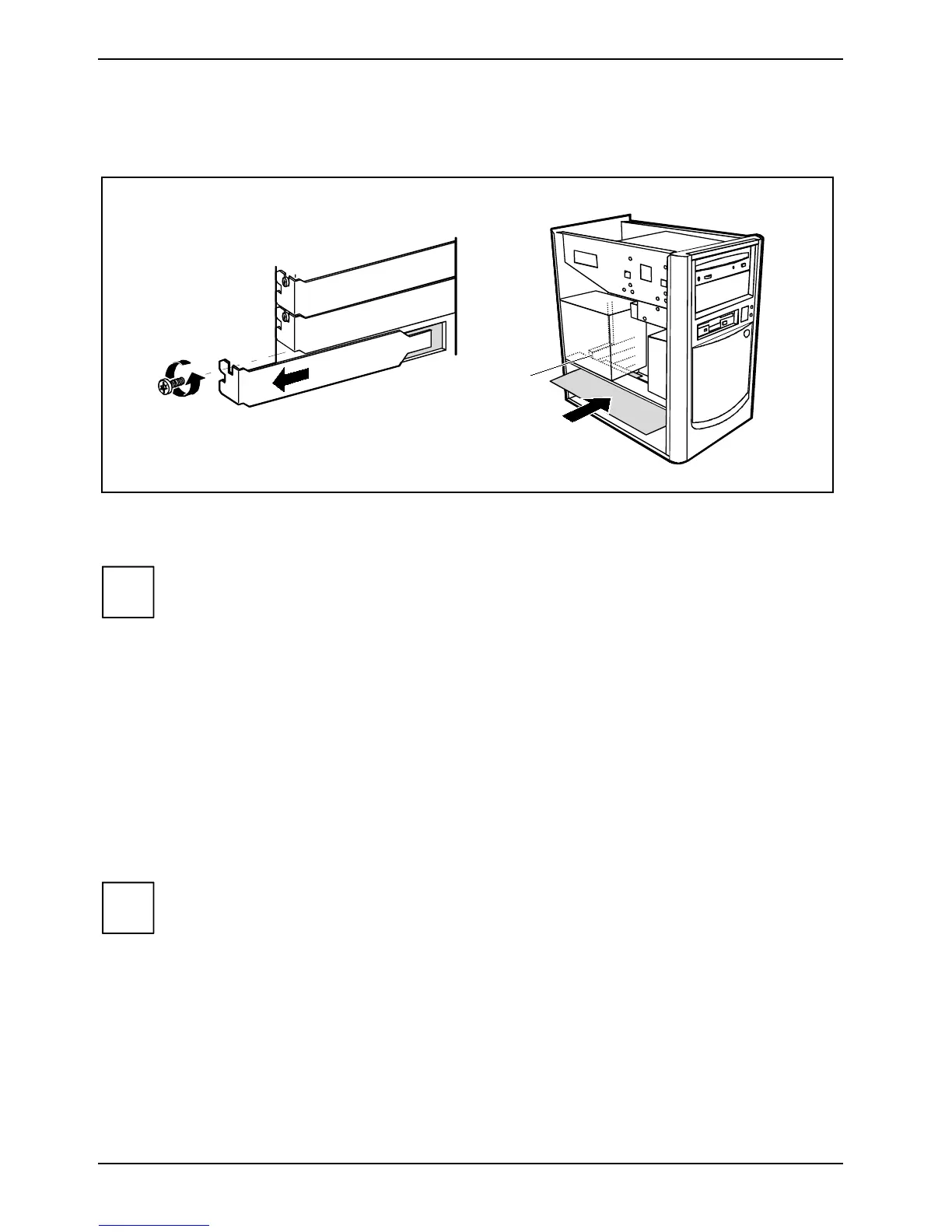

Ê Remove the screw (1).
Ê Remove the rear slot cover plate from the slot (2).
i
Do not dispose of the cover plate. For cooling, protection against fire and in order to
comply with EMC regulations, you must refit the cover plate if you remove the board.
Ê Take the new board out of its packaging.
Ê Make the required settings for the board.
Ê Push the board up to its slot (3).
Ensure that the end of a long board without angle bracket fits into the corresponding guide of
the casing.
Ê Press the board into the slot so that it engages.
Ê Fix the board with the screw (4).
Ê If necessary, connect the cables.
Ê Close the casing (see "Closing the casing").
i
If you have installed or removed a PCI board, please check the relevant PCI slot settings
in the BIOS Setup. If necessary, change the settings. Further information is provided in the
PCI board documentation.
