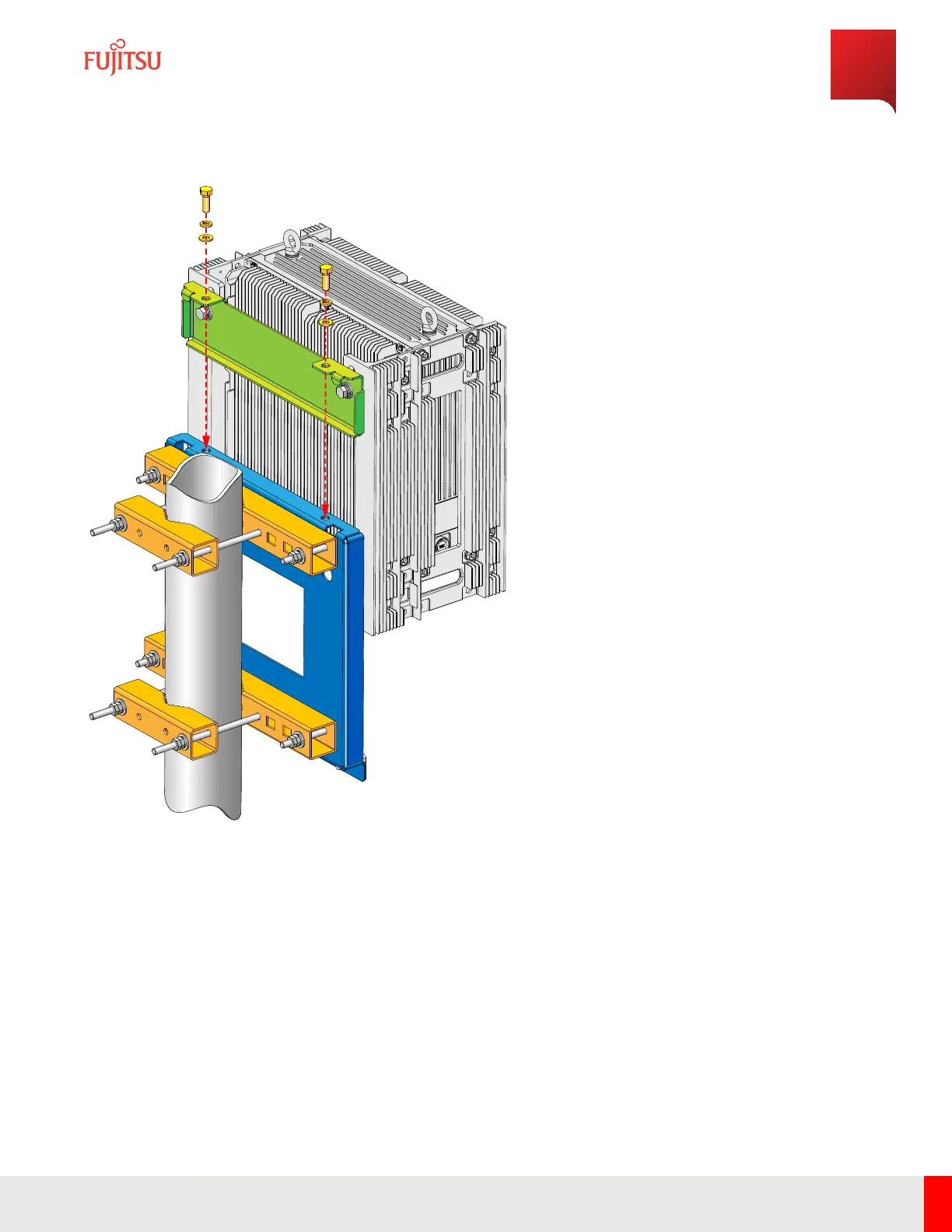

Figure 19

Mount RU on Wall Mounting Plate

Note: If necessary, use the eye bolts to hoist the RU up the pole.

Step 8

Using a 17 mm socket, secure the mounting adapter plate to the mounting plate using M10 x 30 mm bolts and

split and at washers. Do not tighten the bolts yet.

Step 9

Secure the L-brackets to the mounting adapter plate using two M10 x 40 mm bolts, split washers, and at

washers.

Installation

RU Installation

103

Release 1.0 · Issue 1.1, May 2021

Fujitsu and Fujitsu Customer Use Only
