M8 Eye Bolt
M8 Hex Bolt
Split Washer
Split Washer
Flat Washer
Flat Washer
NOTE: Use torque value of 9.28 N/m
FNC001596_Rev_01

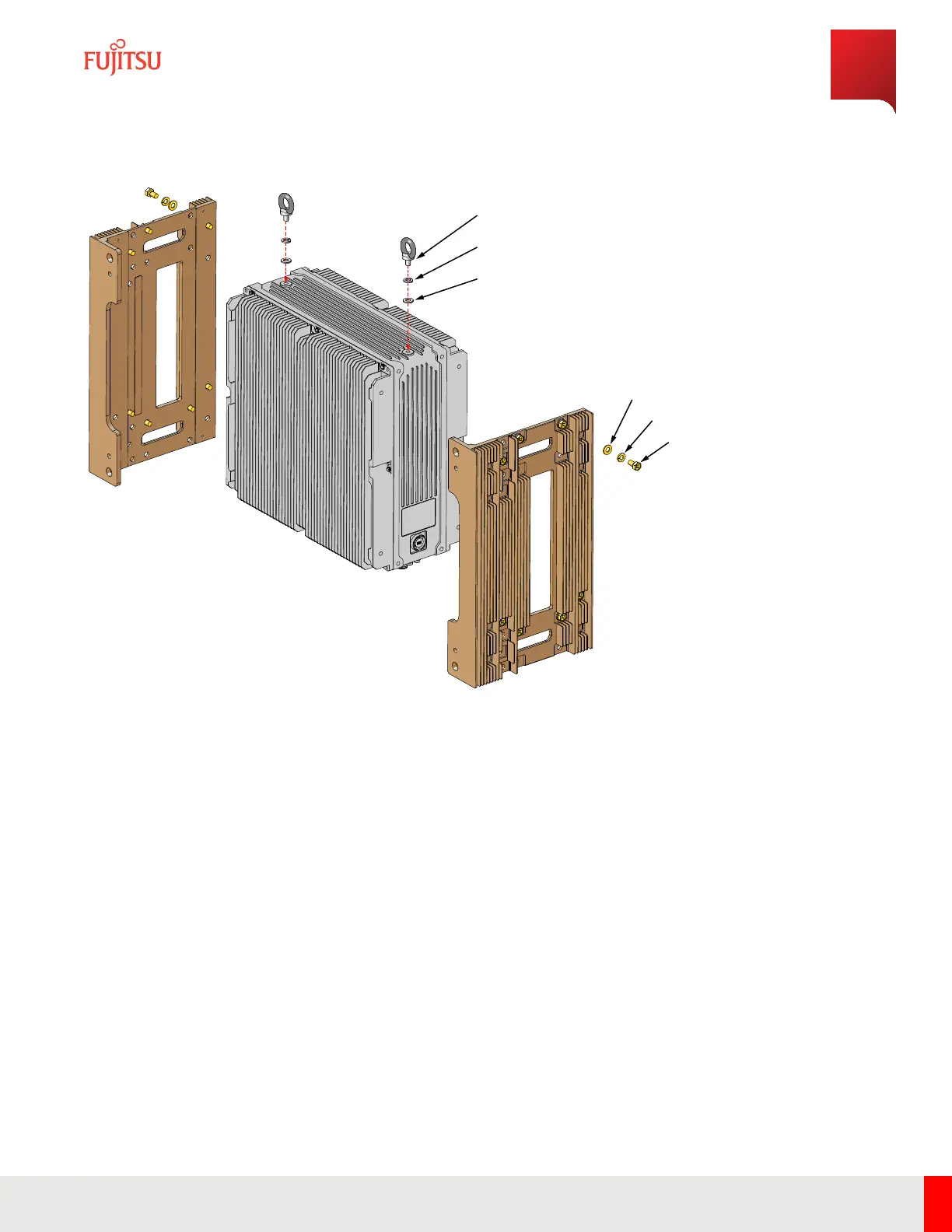

Figure 13
Installing L-Brackets and Eye Bolts
Continue with the next task.
4.5.3
Attach RU Mounting Adapter Plate
is procedure describes how to aach the mounting adapter plate to the RU.
Prerequisites:
■ Loctite LB 8012 or equivalent lubricant applied to all bolts
■ 17 mm socket
■ 5/8 in. wrench
Installation
RU Installation
97
Release 1.0 · Issue 1.1, May 2021
Fujitsu and Fujitsu Customer Use Only
