Lag Bolt
Lag Bolt
Bolt (M10x30)
Bolt (M10x40)
Split Washer
Insulating Bushing
Insulating Bushing
Flat Washer
Split Washer
Flat Washer
FNC001580_Rev_02

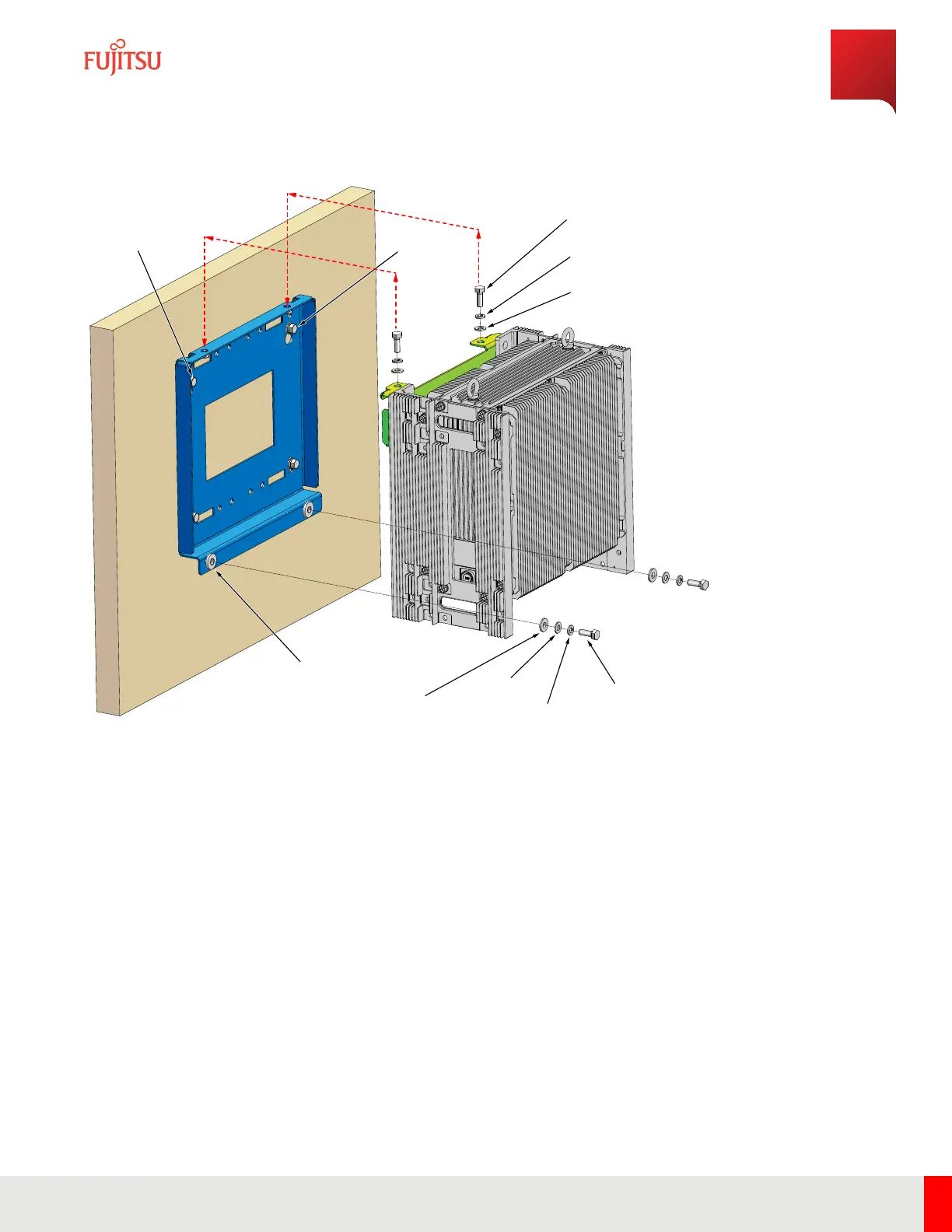

Figure 25
Aaching Radio to Wall Mount Plate
Step 5
Secure the RU in place using M10 bolts by performing the following substeps:
a) Loosely screw two M10 x 30 bolts into the holes on the top of the RU with at and split washers used for
spacing.
b) Loosely screw two M10 x 40 bolts into the holes on the lower front of the RU with an insulating stepped
bushing and at and split washers used for spacing. Ensure the shoulder of the stepped bushing is perfectly t
inside of the hole on the L-bracket for proper alignment.
Installation
RU Installation
109
Release 1.0 · Issue 1.1, May 2021
Fujitsu and Fujitsu Customer Use Only
