2
9
8
4
2
5
1
10
11
12
9
8
5
6
7
4
8
9
3
FNC001579_Rev_03

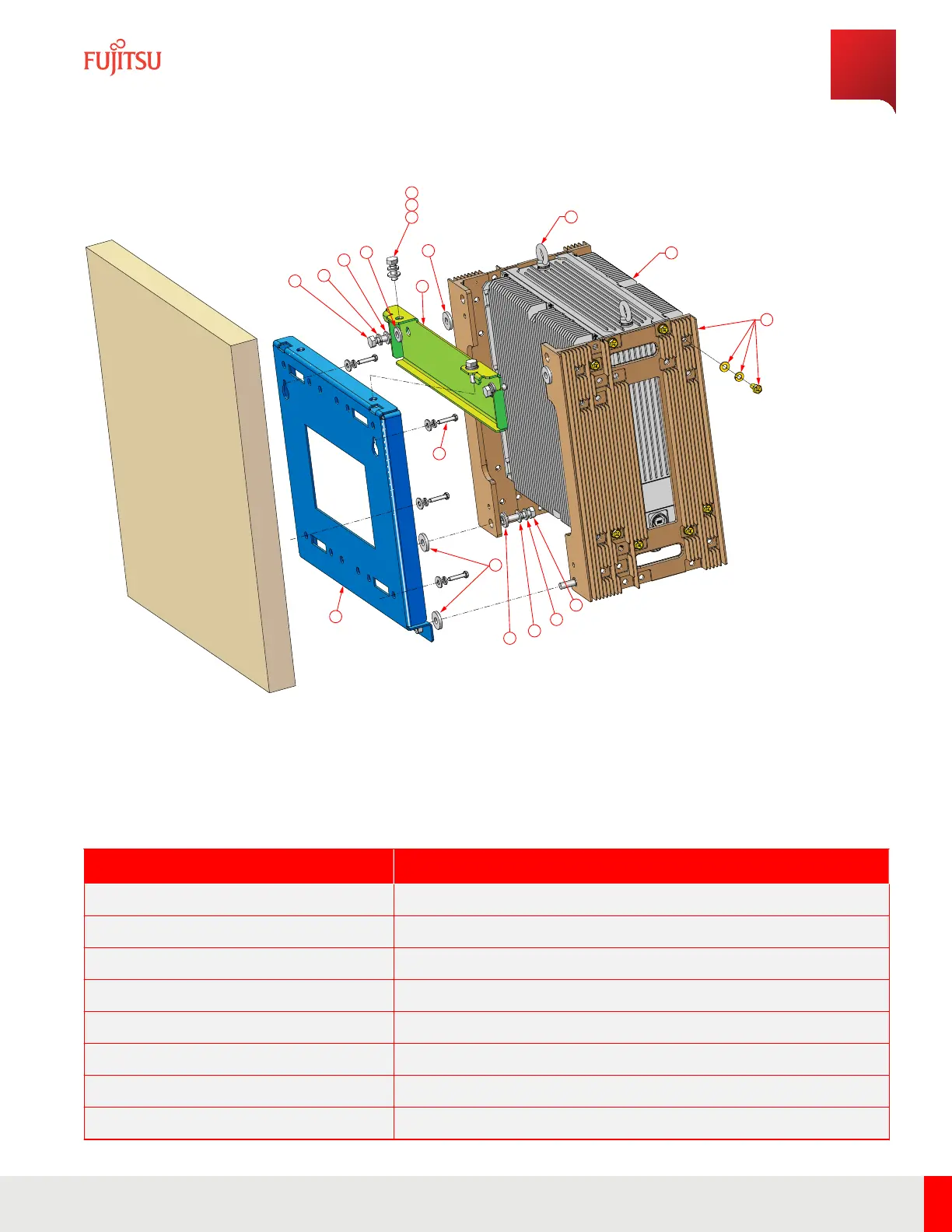

Figure 12
RU Wall Mount
Table 36
Wall Mount Kit Assembly Legend
Item Description
1 Adapter, Mounting Plate Adapter
2 Bolt, Hex HD, M10 X 30 mm, SS
3 Bolt, Hex HD, M10 X 40 mm, SS
4 Insulator, Step Washer, Flat, M10
5 Insulator, Washer, Flat, M10
6 Plate, Wall Mount
7 Screw Kit, Wall Mount
1
8 Washer, Flat, M10, SS
Installation
Mounting
90
