FUJITSU DL3100
User’s Manual 7-7

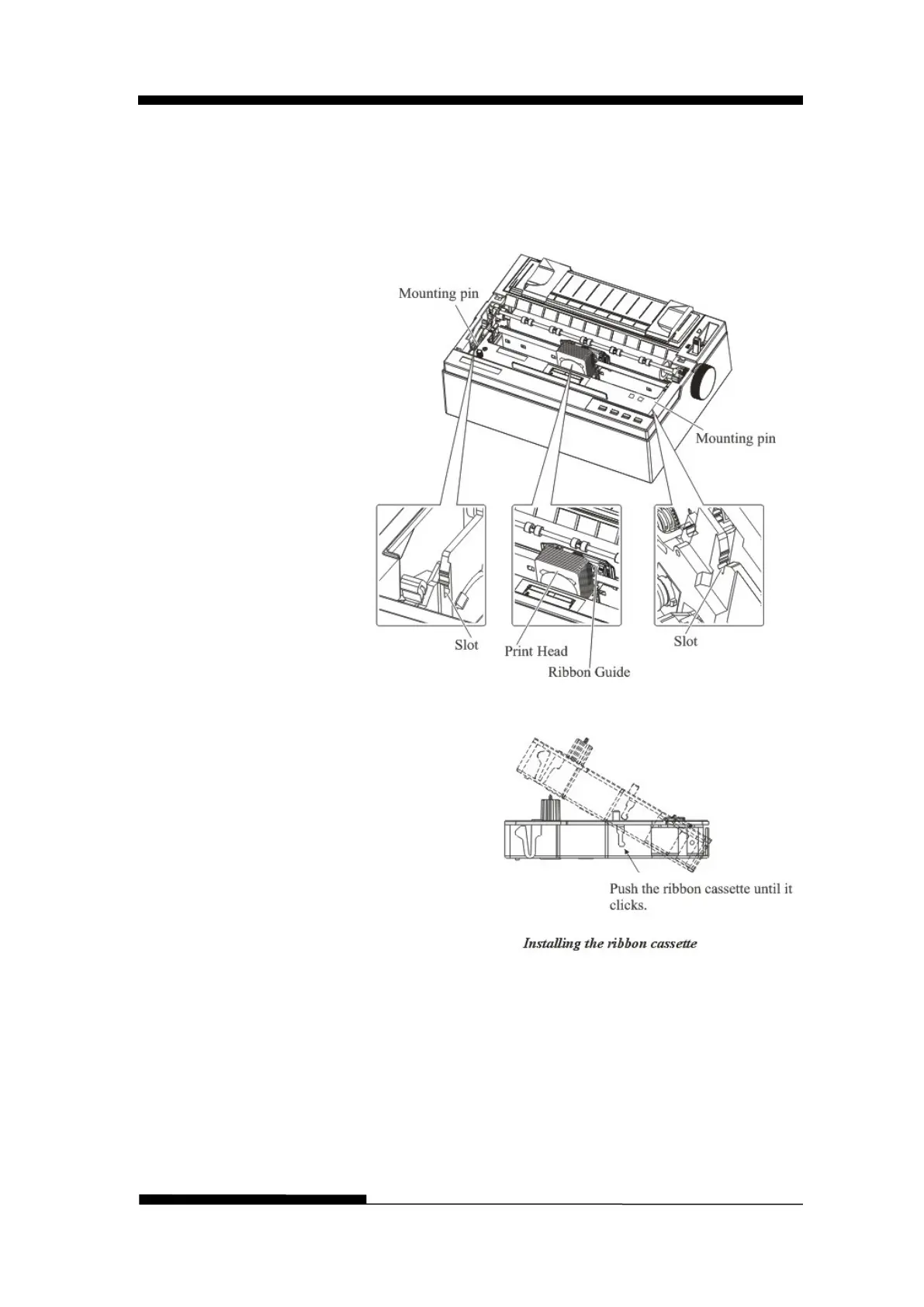

6. Put the blue ribbon guide into the space in front of
print head. And then place the mounting pins (both side
of ribbon cassette) on the slot of the printer cover. And
then push the ribbon cassette so that the ribbon cassette
is installed horizontally.
