FUJITSU DL3100
2-4 User’s Manual

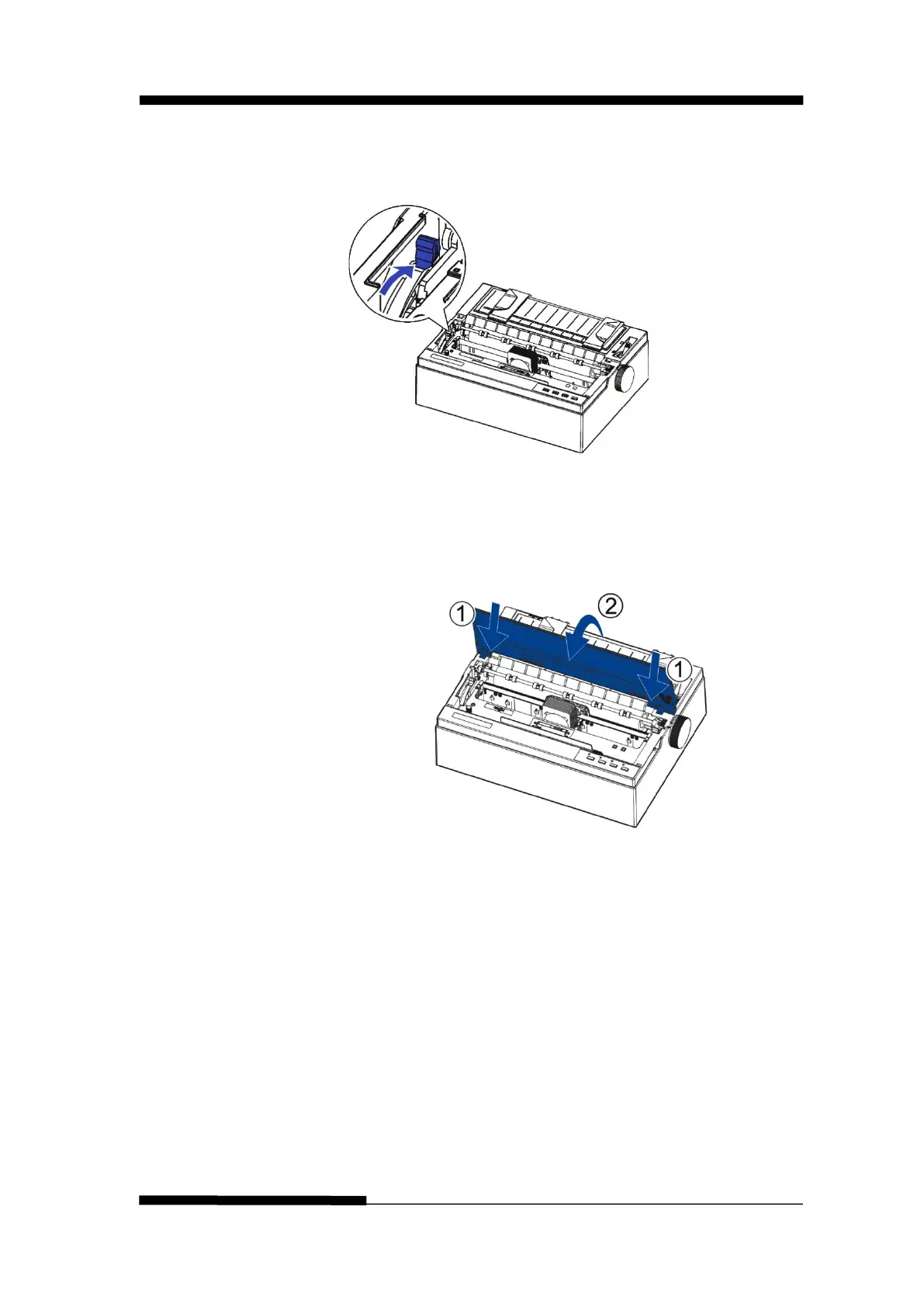

6. Adjusting the print gap lever according to the paper
thickness.
7. Close the printer’s cover. When printer is in operation,
ensure the printer’s cover is closed to keep the noise level
to a minimum, to ensure the user security when the printer
is operated.
Notes on Ribbon Cartridge Removal:
1. Eject any paper loaded in the printer.
2. Turn off the printer power.
3. Open and remove the cover.
4. Set the gap lever to the most open position labeled “RIBBON”.
5. Move the carriage to the middle. Be careful not to touch the
print head if printing had just been performed, as the print head
may be hot.
6. Remove the ribbon frame from the print head.
7. Use fingers to take hold of the handle on the ribbon cartridge
firmly, and lift the cartridge upwards to unlatch it. Some force
may be needed to unlatch the cartridge.
