82 Options Guide TX200 S6
Expansion cards and BBU

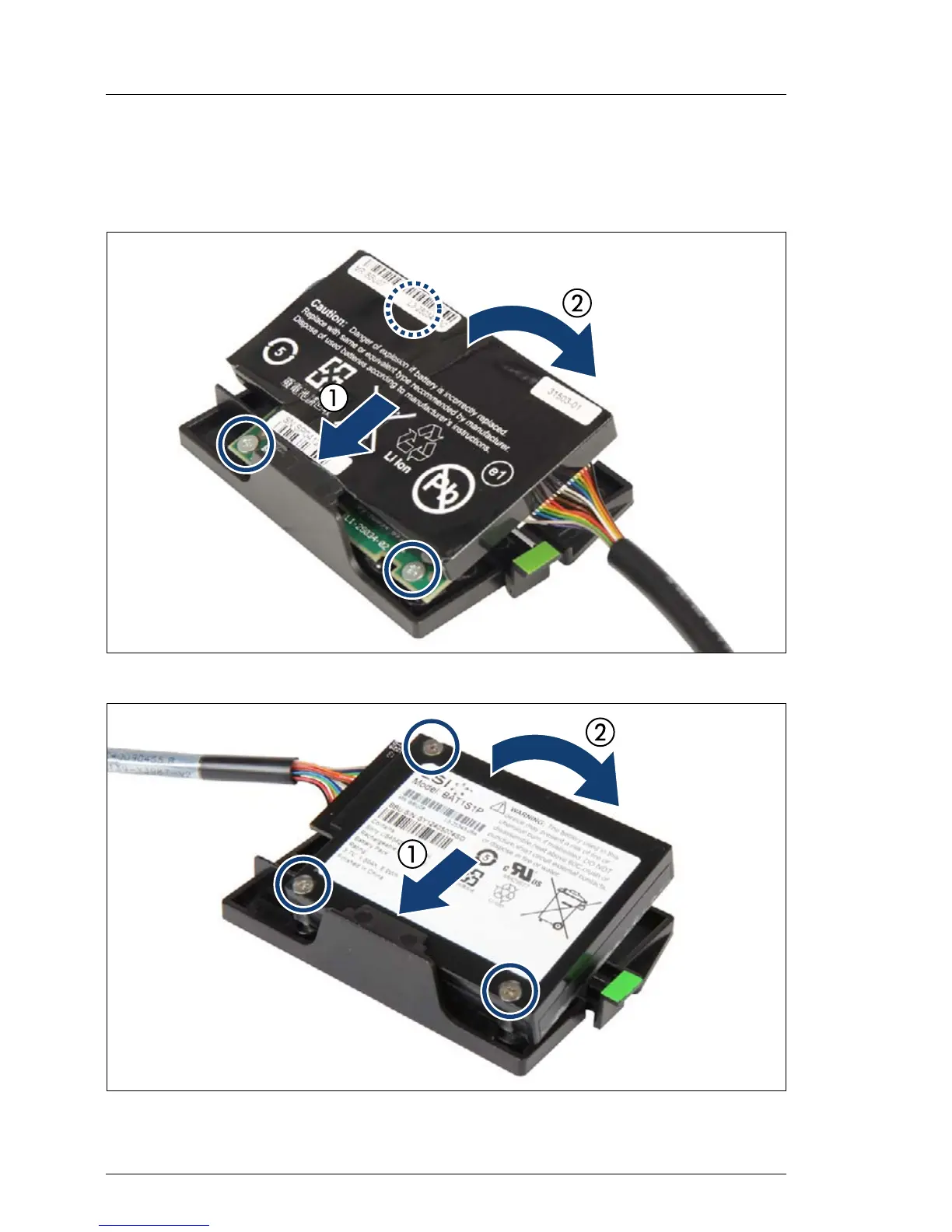

I There are different BBUs available. Please notice the position of the
three bolts (see circles in figure 59 and figure 60) to recognise the right
position for installing the BBU in the BBU holder.
Figure 59: Installing the BBU in the BBU holder (example A)
Figure 60: Installing the BBU in the BBU holder (example B)
