Fujitsu PRIMERGY TX200 S6

TX200 S6 Options Guide 83
Expansion cards and BBU
Ê At a slight angle, fit the BBU under the right retaining bracket on the BBU
holder (1).
Ê Fold down the BBU until it locks in place (2).

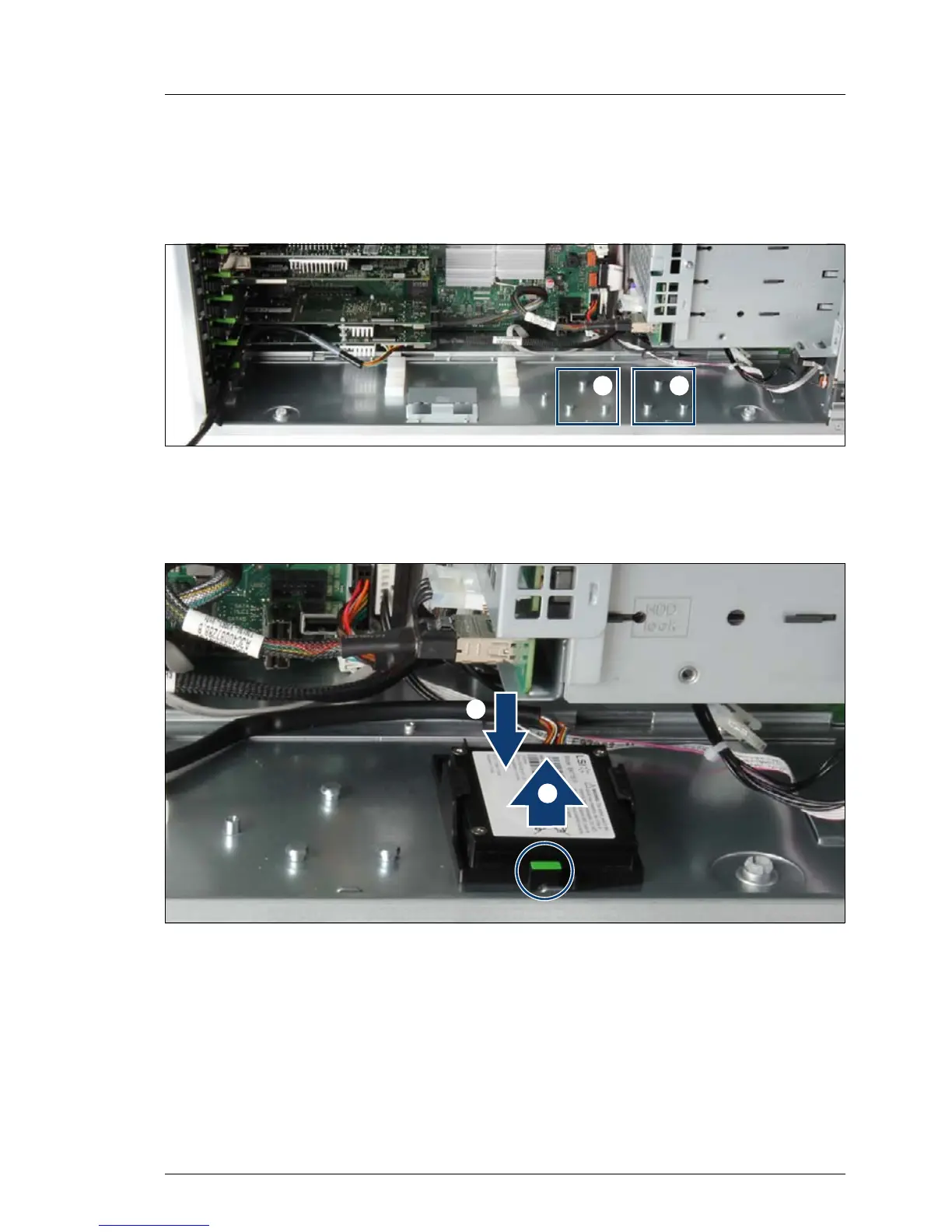

Figure 61: Installing the BBU holder (A)
Ê Note the positions of the shoulder screw caps on the chassis. Three bolts
are for the BBU 1 (1) and three bolts are for BBU 2 (2).
Figure 62: Installing the BBU holder (B)
Ê Insert the first BBU holder into the chassis so that the three shoulder screw
caps on the chassis floor rest in the wide ends of the keyhole slots on the
holder (1).
Ê Slide the BBU holder inward as far as it will go (2).
The shoulder screw caps on the chassis floor will lock in the narrow ends of
the keyhole slots on the BBU holder.
