84 Options Guide TX200 S6
Expansion cards and BBU
Ê Ensure that the locking handle on the BBU holder properly snaps in place
(see circle).
I There are different BBUs available. The position of the BBU cable on the
BBU can differ from the following example.

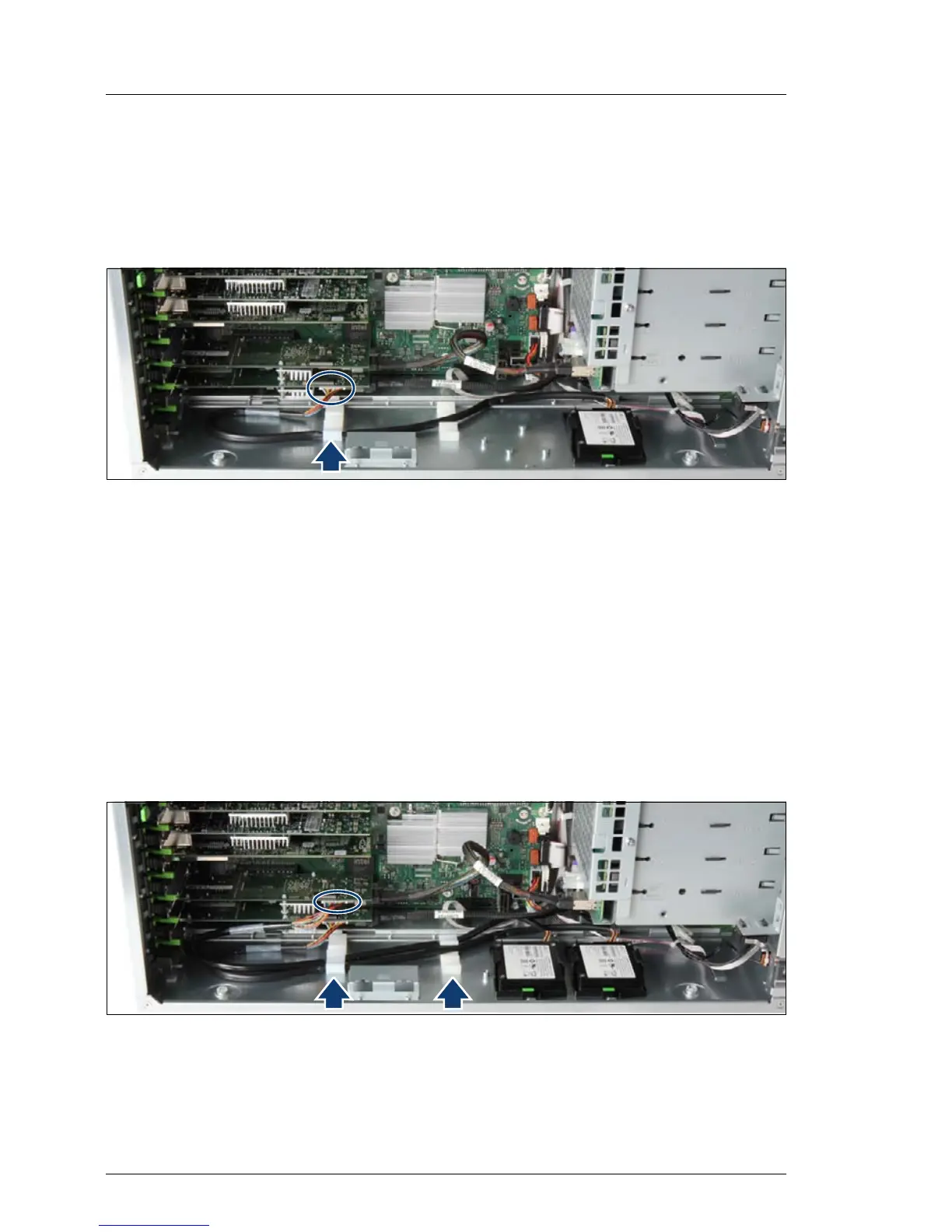

Figure 63: Example: Connecting one BBU to one controller
Ê Install a RAID controller as described in the section "Installing expansion
cards" on page 73.
Ê Route the BBU cable in the cable clamp.
Ê Connect the BBU cable to the controller.
V CAUTION!
The connector side with the three dots points towards you.
I There are different BBUs available. The position of the BBU cable on the
BBU can differ from the following example.
Figure 64: Example: Connecting two BBUs to two controllers
Ê In case of a configuration with two BBUs:
Ê Install the second BBU as described above.
