User’s Guide FUJITSU PSWITCH
December/2018 17
1. Attach the outer rail of the rack rail to the rack.

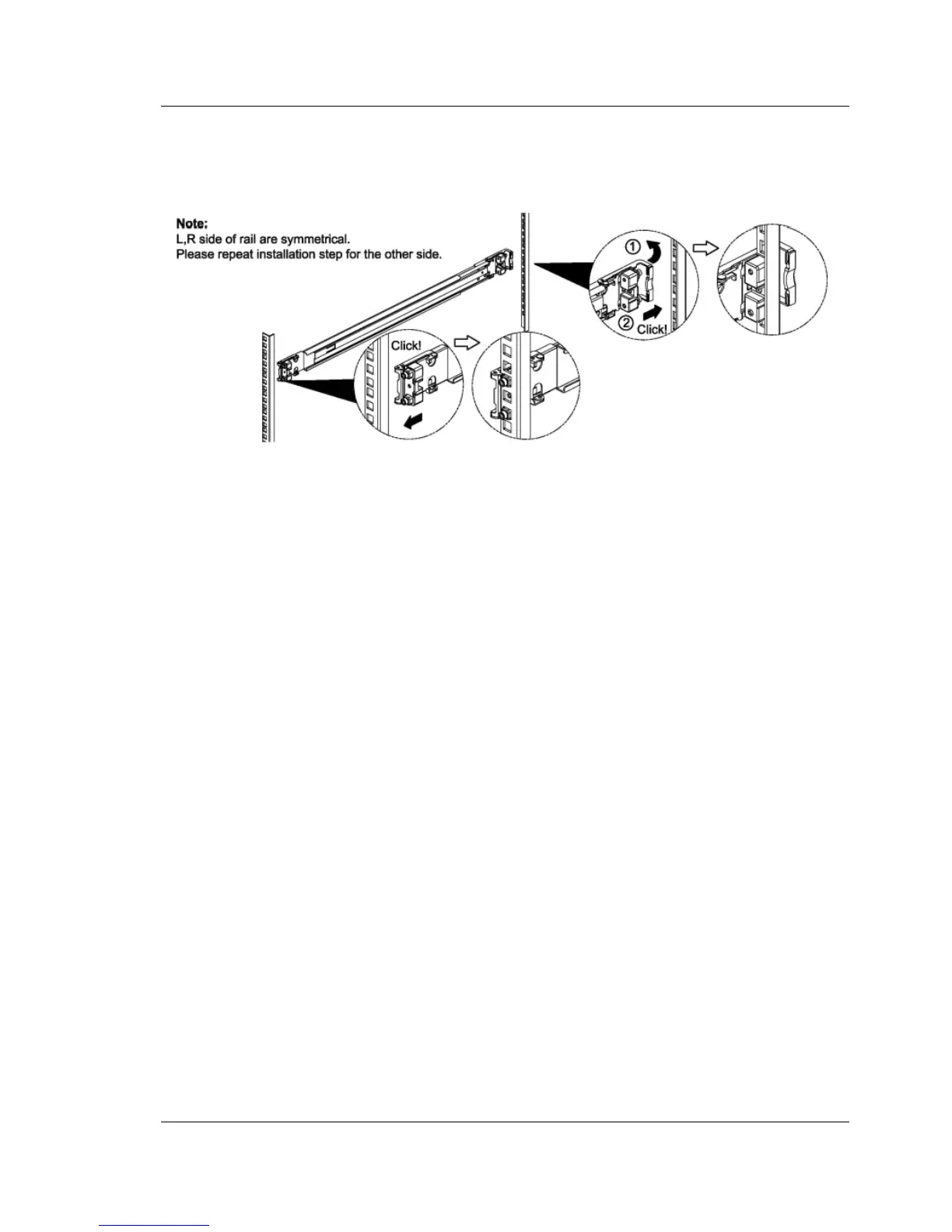

Figure 2-5: Attachment of outer rail to the rack
2. Insert the unit onto the rack.
To reduce the weight of the device, remove the both power supply units
form the device.
Then, insert the inner rail into the outer rail and mount the device in the rack.
To Next Page
