Fujitsu ScanSnap S1300 User Manual

Setting the ScanSnap (for Mac OS users)
195

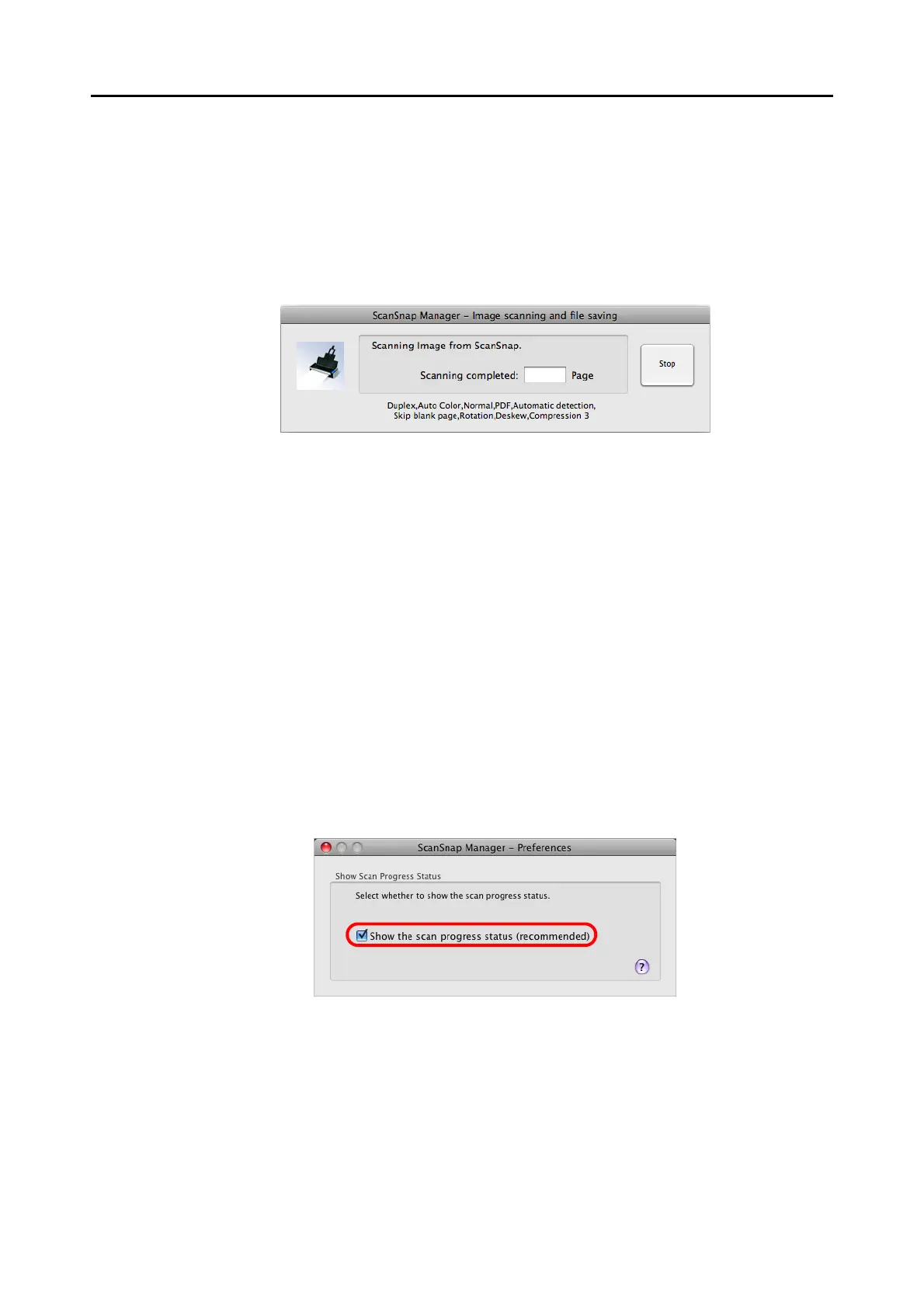

■ Showing the Scanning Progress Status
When scanning starts, the [ScanSnap Manager - Image scanning and file saving] window
appears on the computer screen.
This window shows the current processing status, the number of pages that has been saved
to file, and summary of the current scan settings. Also, you can stop scanning by clicking the
[Stop] button.
The [ScanSnap Manager - Image scanning and file saving] window automatically closes after
saving the image data of the last page scanned.
Hiding the Scanning Progress Status
You can change the settings to hide the [ScanSnap Manager - Image scanning and file
saving] window by following the procedure below.
1. Select [Help] J [Preferences] from the ScanSnap Manager menu.
Refer to "ScanSnap Manager Menu" (page 170) for more information about the
ScanSnap Manager menu.
D The [ScanSnap Manager - Preferences] window appears.
2. Clear the [Show the scan progress status (recommended)] checkbox.

Fujitsu ScanSnap S1300 Specifications

General

Film scanning	No
Color scanning	Yes
Maximum scan size	216 x 360 mm
Scanner type	Sheet-fed scanner
Sensor type	CIS
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5, B6
Maximum ISO A-series paper size	A4
Auto document feeder (ADF) input capacity	10 sheets
USB version	2.0
Standard interfaces	USB 2.0
Scan media weight	64 - 104.7 g/m²
Dimensions (WxDxH)	284 x 99 x 77 mm
Power requirements	AC 100 - 240V, 50/ 60 Hz
Non-operating relative humidity (non-condensing)	20 - 80 %
Minimum RAM	512 MB
Minimum storage drive space	2197 MB
Sustainability certificates	ENERGY STAR
Power consumption (standby)	5 W
Power consumption (typical)	9 W
Operating temperature (T-T)	5 - 35 °C
Certification	RoHS

Weight and Dimensions

Depth	99 mm
Width	284 mm
Height	77 mm
Weight	1400 g
