Replacing the Pad Assy
289
Replacing the Pad Assy
Replace the pad assy following the procedure below.
1. Turn off the ScanSnap.
2. Remove the documents from the ADF paper chute (cover).
3. Pull the ADF release tab to open the ADF top section.
4. Remove the pad assy.

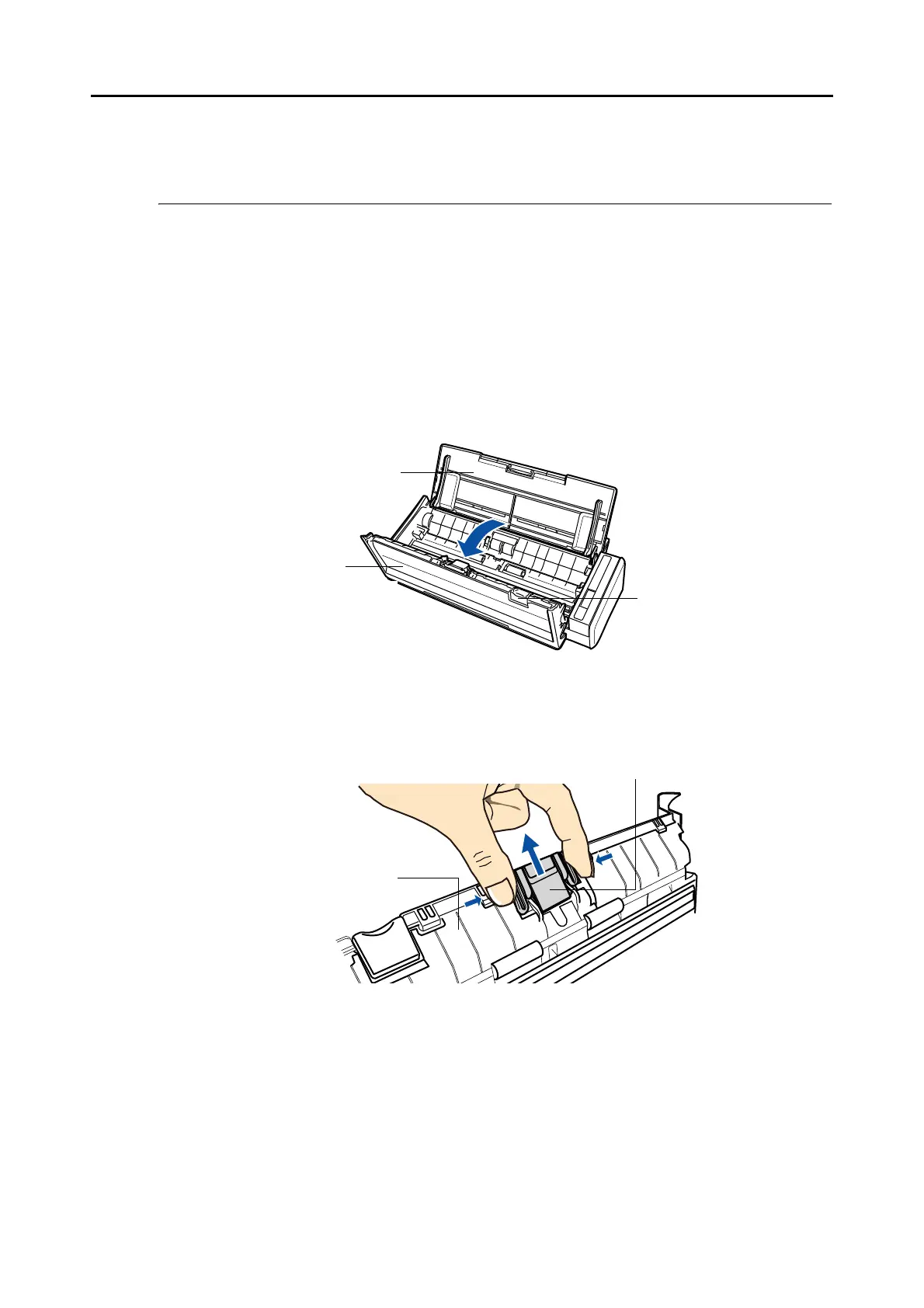

Pull out the pad assy in the direction of the arrow by pinching both ends of the pad assy.
ADF release tab
ADF top section
ADF paper chute (cover)
ADF top section
Pad assy
