Replacing the Pick Roller
293
Replacing the Pick Roller

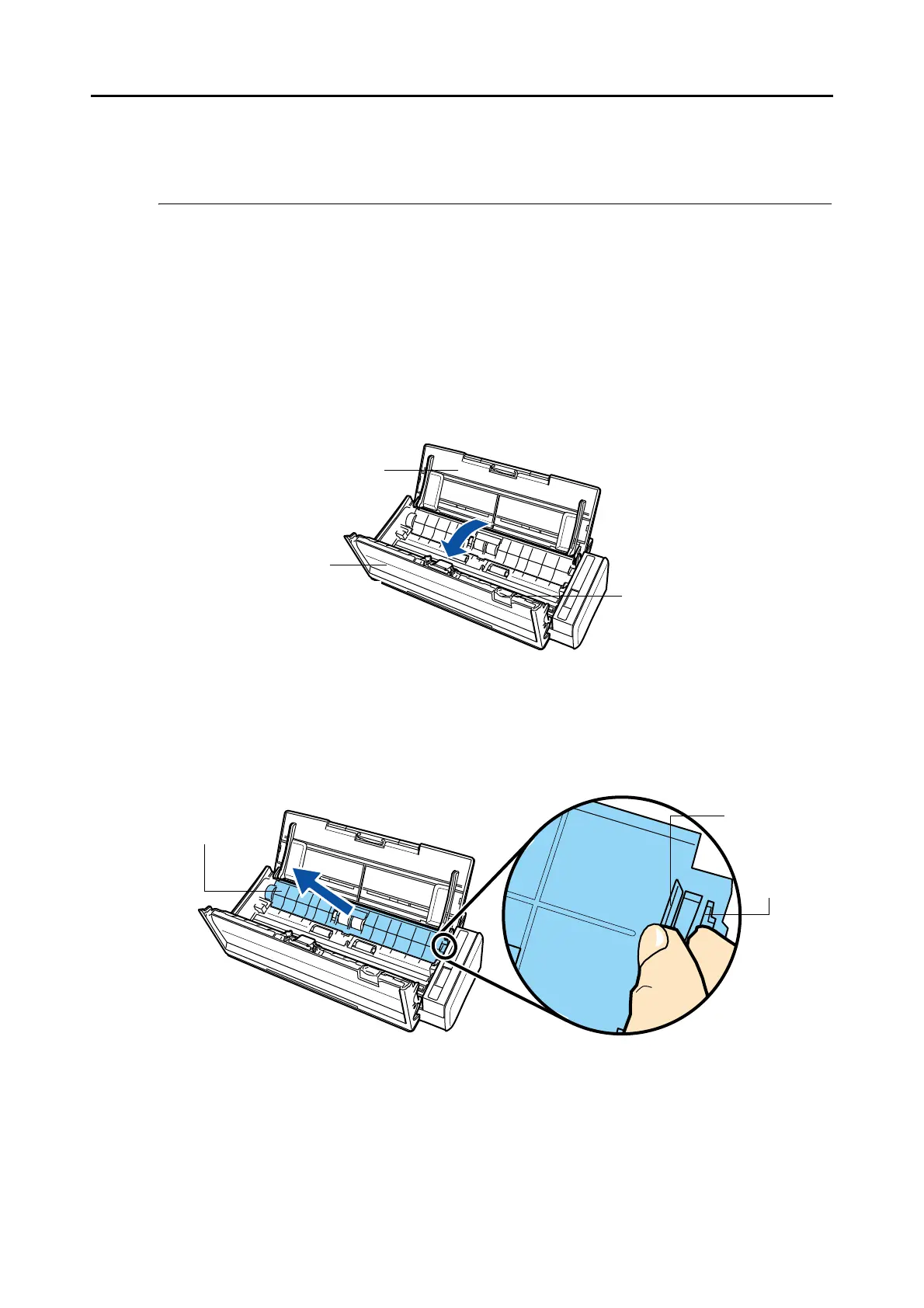

Replace the pick roller following the procedure below.
1. Turn off the ScanSnap.
2. Remove the documents from the ADF paper chute (cover).
3. Pull the ADF release tab to open the ADF top section.
4. Remove the sheet guide.
Hold the squeeze clips on the right of the sheet guide with your fingers, and then pull the
sheet guide up to remove it.
ADF release tab
ADF top section
ADF paper chute (cover)
Sheet guide
Squeeze clip
Squeeze clip
