Fujitsu ScanSnap S1300

Replacing the Pad Assy
290

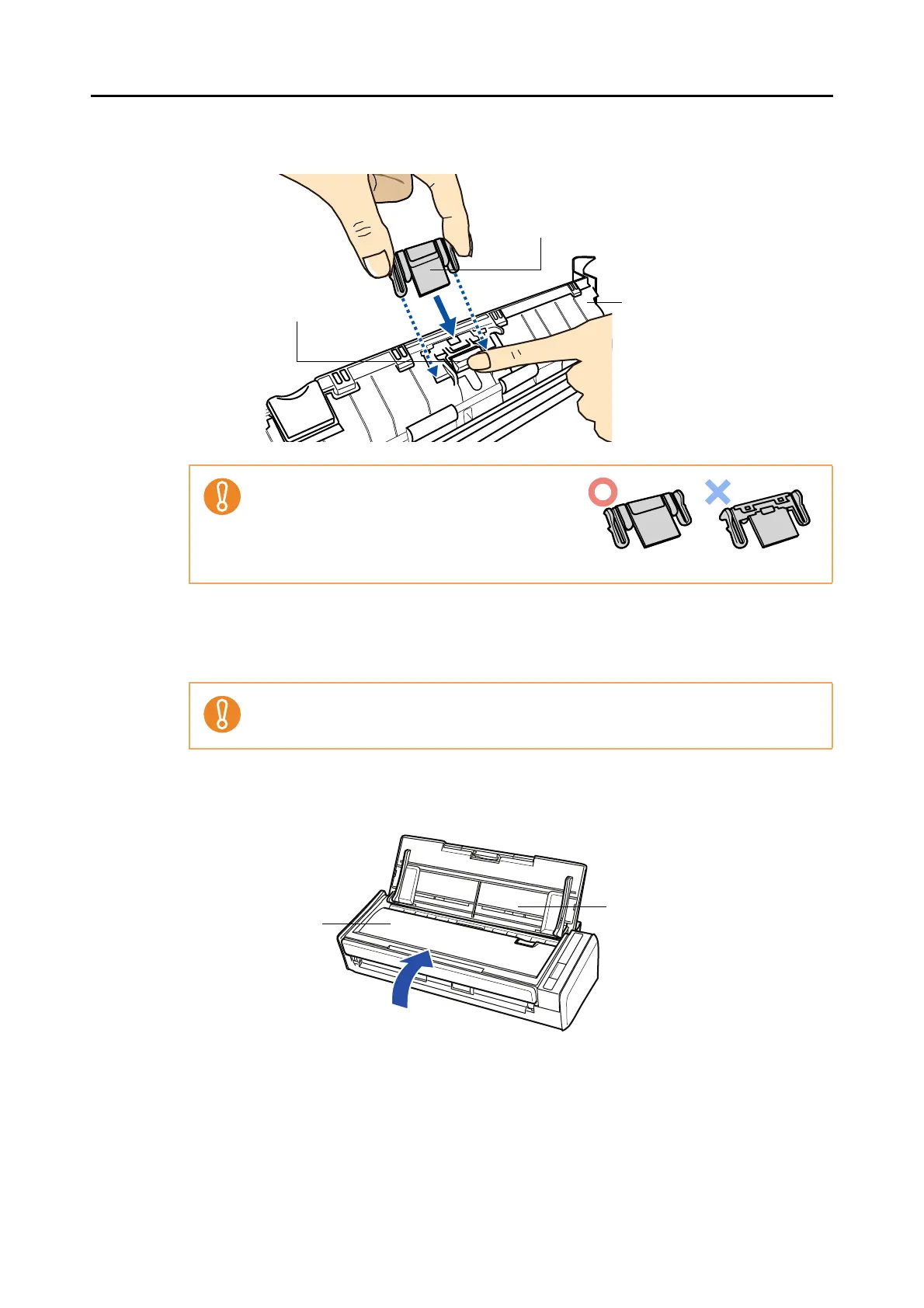

5. Attach the new pad assy while pushing the pad plate down.
6. Make sure that the pad assy is completely locked into the retaining
hooks.
7. Close the ADF top section.
D You should hear the ADF top section click when it returns to its original position.
8. Turn on the ScanSnap.
Make sure that you attach the pad assy with its
front side on top. If it is attached the other way
around, paper jams or other feeding errors may
occur.
Make sure that the pad assy is completely attached. Otherwise, paper jams or other
feeding errors may occur.
ADF top section
Pad assy
Pad plate
Front Back
ADF paper chute (cover)
ADF top section
